Request a QuoteTrotec Speedy 100 cross Diode Laser Marking & Cutting System
Model: SPEEDY-100-CROSS
The Speedy 100 cross puts a 40 W diode laser on the Speedy 100 flatbed platform, so one machine direct-marks metals and also engraves and cuts organics like wood, paper, leather, and plastics across a 24x12" work area. It runs up to 110 ips, roughly four times faster than typical diode lasers, with low maintenance and Ruby software, making it a cost-effective way to bring part marking, dataplates, and QR/serial-number work in-house.
Request a Quote
Specifications
| Work area | 610 x 305 mm (24 x 12") |
|---|---|
| Max. workpiece height | 157 mm (6.2") |
| Laser type / power | Diode, 40 W |
| Max. processing speed | 2.8 m/s (110 ips) |
| Max. acceleration | 40 m/s2 (1575 ips2) |
| Materials | Direct metal marking; engraves/cuts plastics, paper, cardboard, leather, textiles, wood, cork |
| Dimensions (W x D x H) | 1018 x 779 x 457 mm (40 x 31 x 18") |
| Weight | Approx. 91 kg (201 lbs) |
| Laser class | Class 2 (no additional safety enclosure needed) |
| Electrical | 1~ AC 110-230V 50/60Hz, 800 W |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 110V outlet (110-230V, 800 W). Benchtop-class unit; plan for exhaust or filtration, which we spec during the consultation.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Trotec
Trotec Speedy 100 Laser Engraver
The Speedy 100 is the entry point to Trotec's Speedy line, a compact laser engraver and cutter with a 24 x 12 inch work area. It runs Trotec's Ceramicore CO2 laser source with Ruby software and engraves at up to 110 ips with automatic focusing and InPack Technology protection. CO2 power options range from 30 to 80 watts, and a 40 watt diode version is offered as the Speedy 100 Cross.
View Details
Trotec
Trotec Speedy 50 Compact Laser Engraver
The Speedy 50 is the newest and most compact member of Trotec's Speedy line, pairing an 18x12" work area with a 30 W CO2 laser in a benchtop cabinet that weighs about 117 lbs. It engraves at up to 60 ips with 35 m/s2 acceleration, runs Ruby laser software, and plugs into a standard outlet, making it a low-commitment entry into Trotec-grade engraving for personalization, awards, and small-batch work.
View Details
Trotec
Trotec SpeedMarker Series Laser Marking Systems
The SpeedMarker series is Trotec's line of industrial galvo laser marking workstations, from the compact SpeedMarker 50 to the large-format SpeedMarker 1600. Fiber and MOPA fiber sources mark metals and plastics, with a CO2 option on the SpeedMarker 700 for organic materials, all driven by SpeedMark automation software. Galvo marking speeds reach up to 12 m/s with software controlled x, y and z axes for automated production marking.
View Details
Trotec

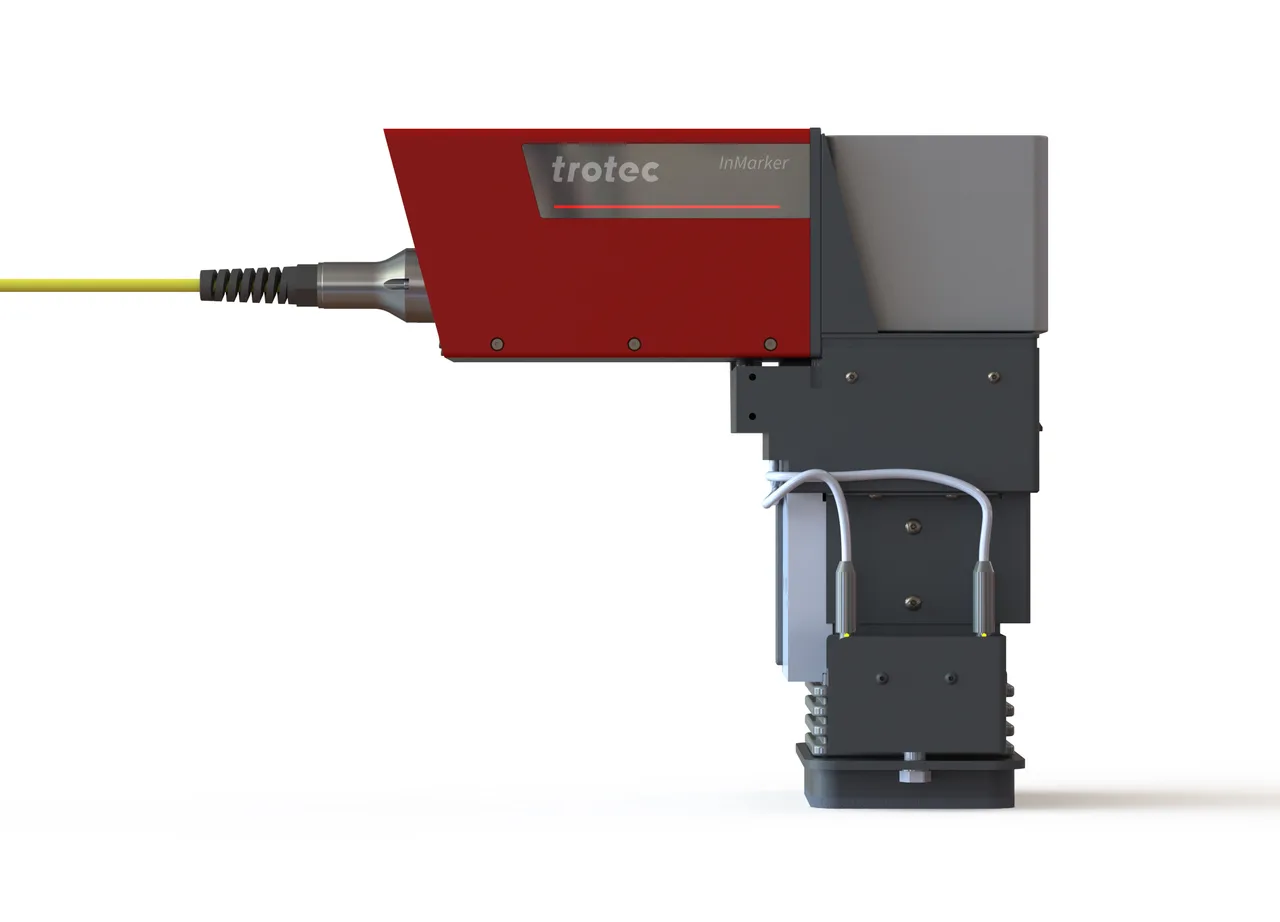

Trotec InMarker Integration Fiber Laser Marking System
The InMarker is Trotec's OEM integration marker: a 1064 nm pulsed fiber laser whose marking head weighs just 4.6 kg, built to drop into production lines and robot cells for serial numbers, logos, and data matrix/QR codes on metal parts. Yb-fiber and MOPA sources from 20 to 100 W cover marking fields up to 310 x 310 mm, and the IP54 air-cooled head with Profinet fieldbus support runs 24/7; the optional Safetycone laser-protection cone brings the whole station to Class 1 without a safety cabin.
View DetailsSupplies for this machine
