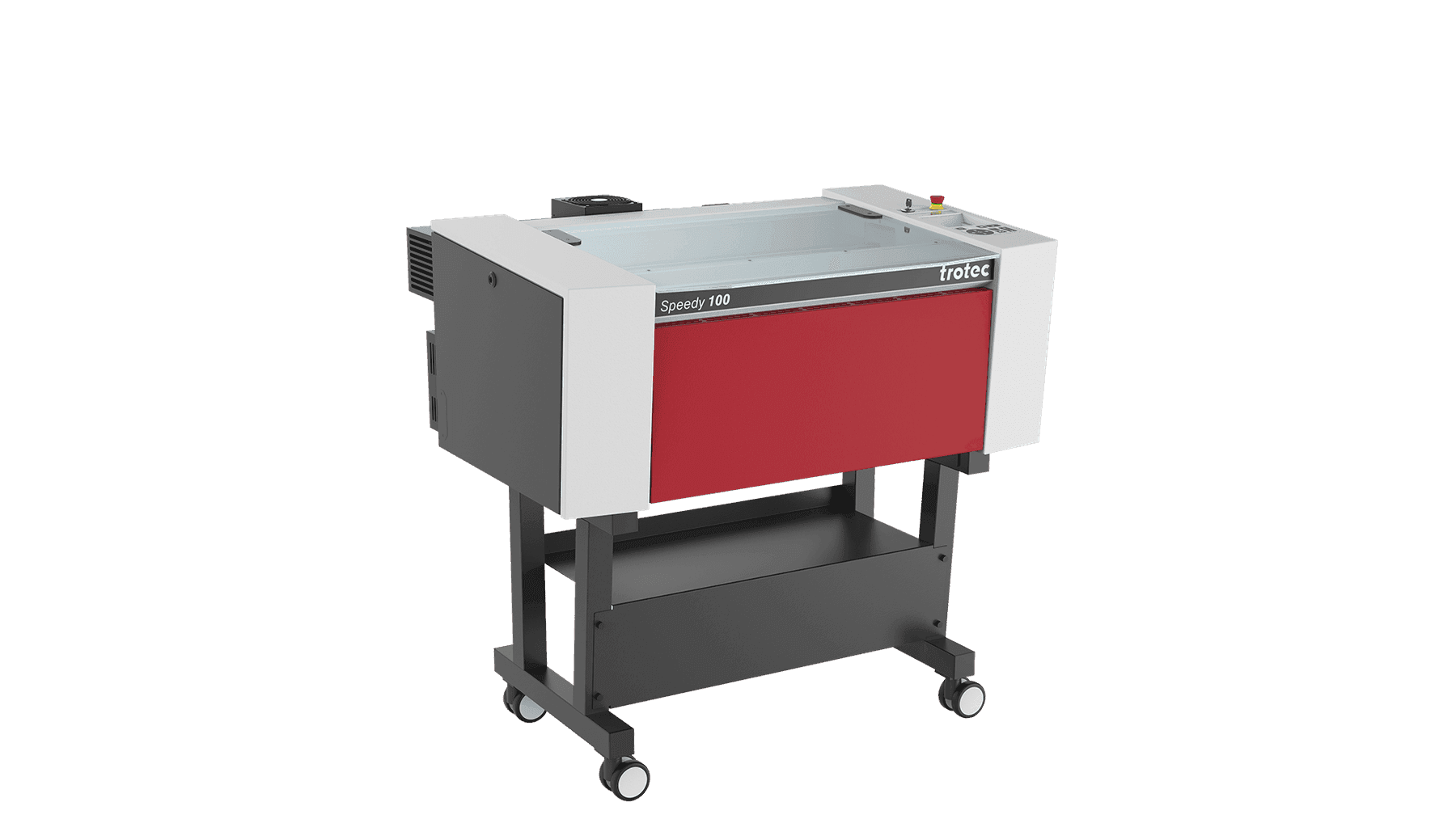

Request a QuoteTrotec Speedy 100 Laser Engraver
The Speedy 100 is the entry point to Trotec's Speedy line, a compact laser engraver and cutter with a 24 x 12 inch work area. It runs Trotec's Ceramicore CO2 laser source with Ruby software and engraves at up to 110 ips with automatic focusing and InPack Technology protection. CO2 power options range from 30 to 80 watts, and a 40 watt diode version is offered as the Speedy 100 Cross.
Request a Quote
Specifications
| Work area | 610 x 305 mm (24 x 12 in) |
|---|---|
| Max. workpiece height | 170 mm (6.7 in) |
| Loading area | 690 x 305 mm (27 x 12 in) |
| Laser type | CO2 (Ceramicore sealed-off source); 40 W diode available on Speedy 100 Cross variant |
| Laser power options (CO2) | 30, 50 or 80 W |
| Max. processing speed | 2.8 m/s (110 ips) |
| Max. acceleration | 40 m/s2 (1575 ips2) |
| Motion system | Brushless DC servo motors |
| Dimensions (W x D x H) | 1018 x 784 x 465 mm (40 x 31 x 18 in) |
| Weight | Approx. 95 kg (209 lbs) |
| Laser class | Class 2 |
| Electrical | 1~ AC 110-230V 50/60Hz, 0.9 kW - 1.3 kW |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 110V outlet. Benchtop-class unit; plan for exhaust or filtration, which we spec during the consultation.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Trotec

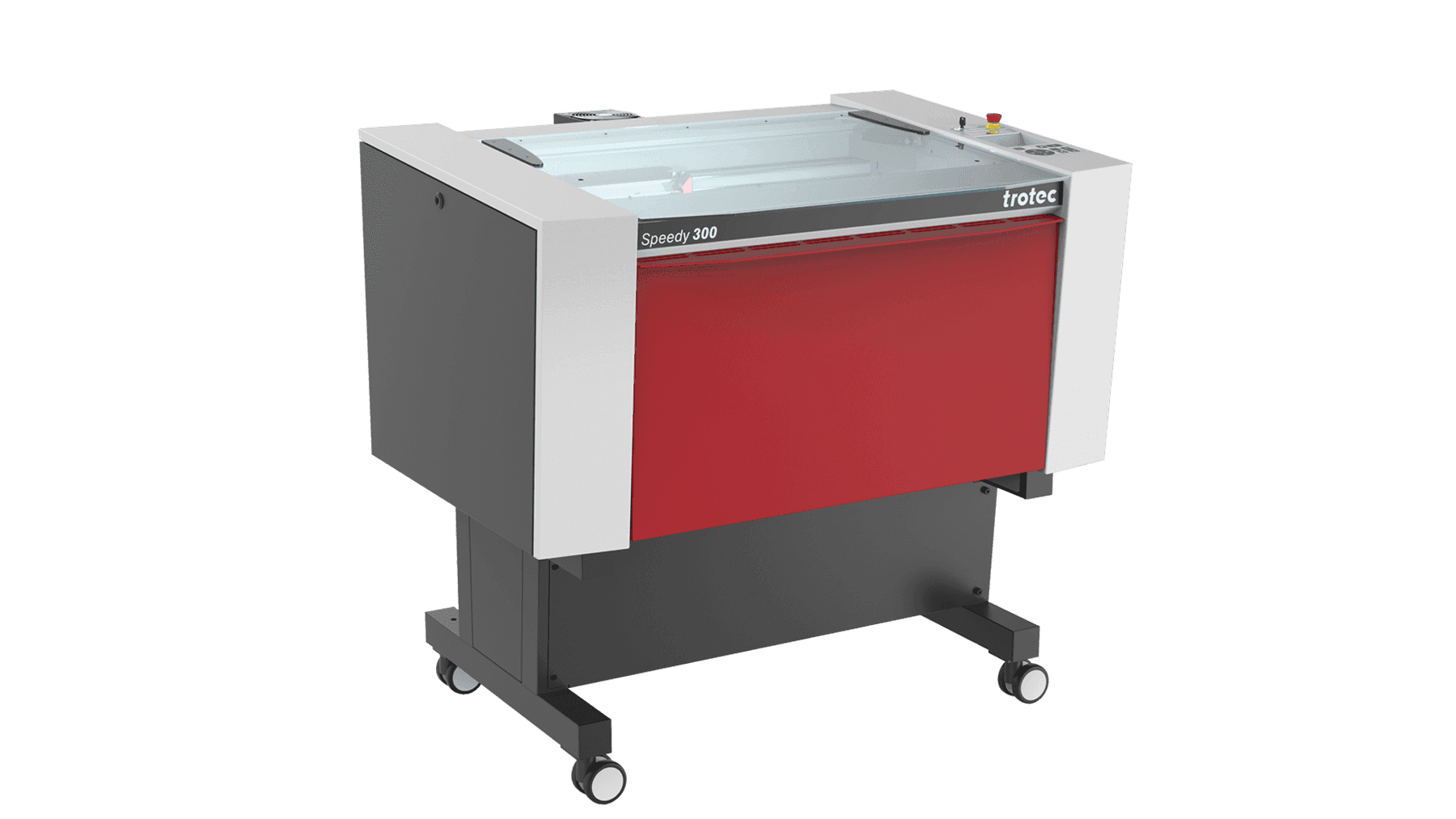

Trotec Speedy 300 Laser Engraver
The Speedy 300 is Trotec's proven mid-size laser engraver and cutter with a 29 x 17 inch work area and thousands of installations worldwide. It combines InPack Technology dust protection with engraving speeds up to 140 ips in a compact cabinet. It is available as a pure CO2 machine from 50 to 120 watts, or as the Speedy 300 flexx that pairs a CO2 laser with a 30 watt fiber laser for metal marking.
View Details
Trotec

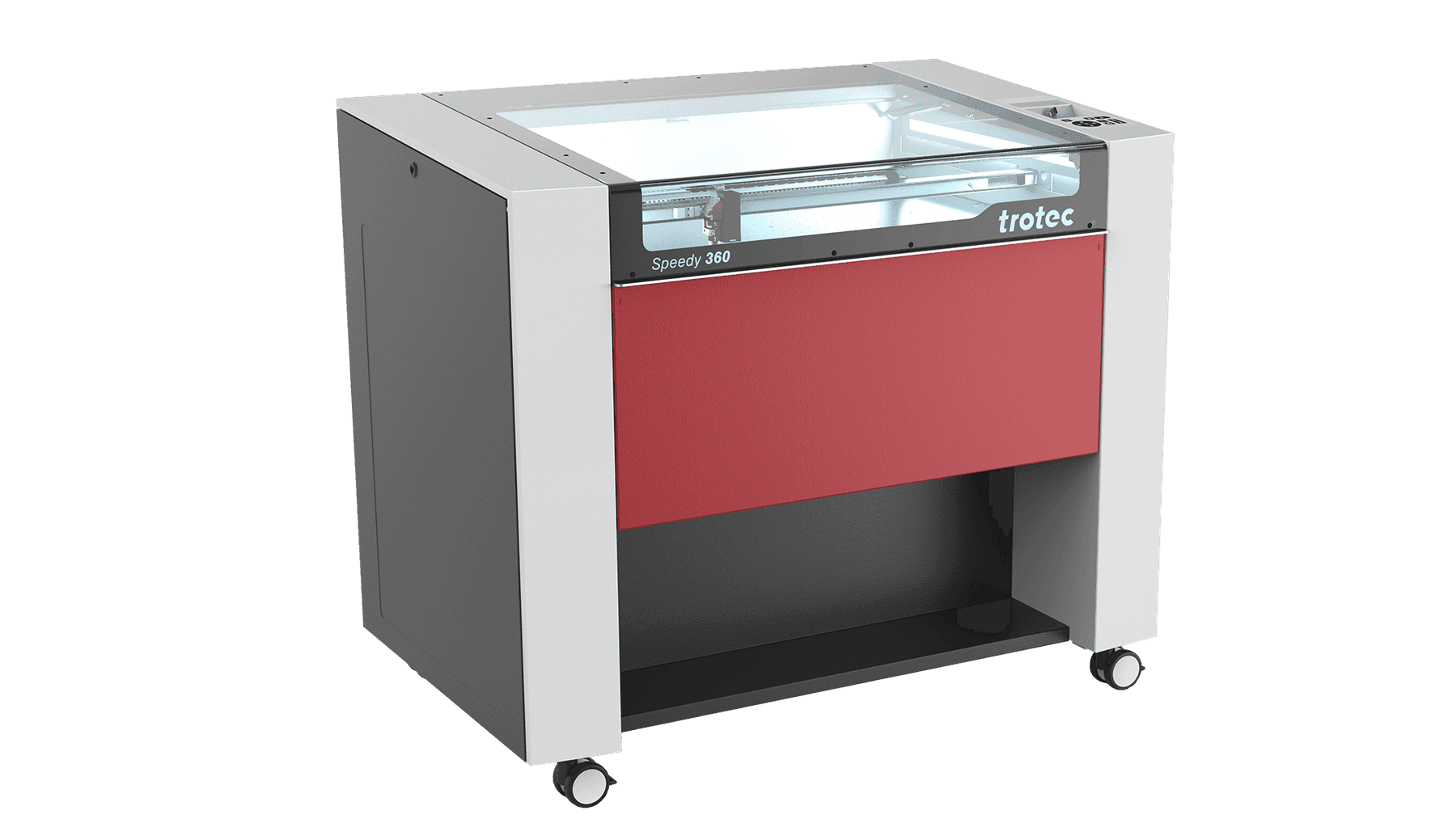

Trotec Speedy 360 Laser Engraver
The Speedy 360 is a premium 32 x 20 inch laser engraver and cutter built for professional users with high productivity requirements. It engraves at up to 140 ips with OptiMotion motion control, Sonar Technology autofocus and the Run on Ruby touch panel workflow. It is offered as a CO2 machine up to 120 watts or as the Speedy 360 flexx with an additional 30 to 50 watt fiber laser.
View Details
Trotec

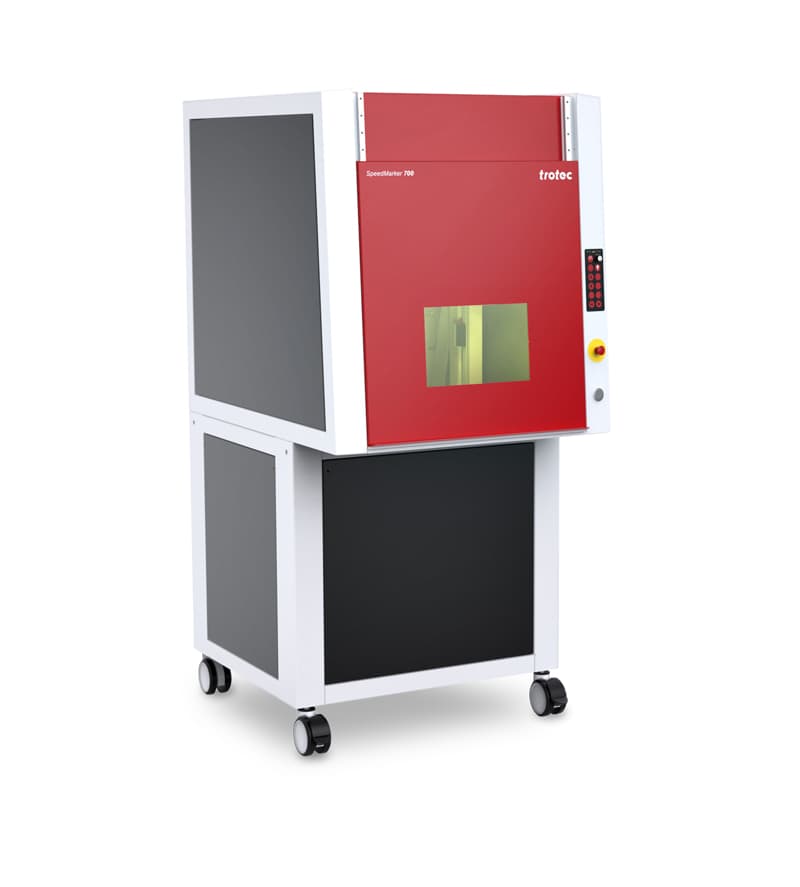

Trotec SpeedMarker Series Laser Marking Systems
The SpeedMarker series is Trotec's line of industrial galvo laser marking workstations, from the compact SpeedMarker 50 to the large-format SpeedMarker 1600. Fiber and MOPA fiber sources mark metals and plastics, with a CO2 option on the SpeedMarker 700 for organic materials, all driven by SpeedMark automation software. Galvo marking speeds reach up to 12 m/s with software controlled x, y and z axes for automated production marking.
View Details
Trotec

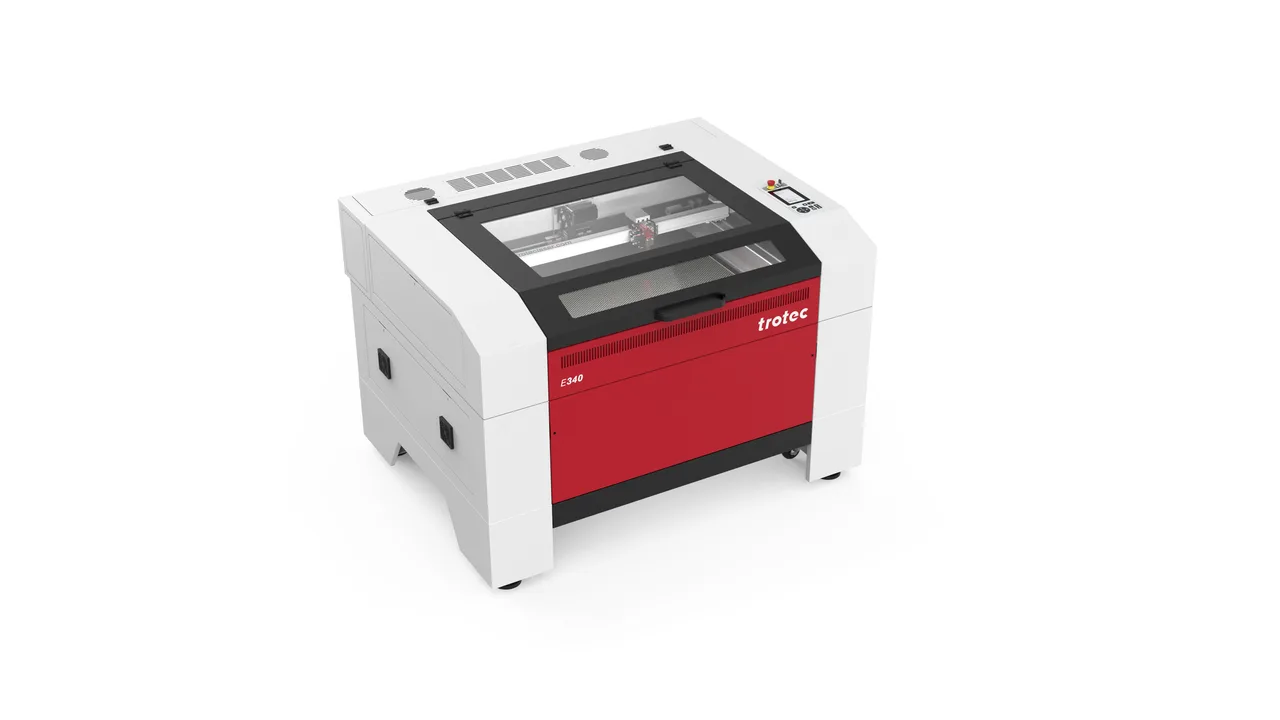

Trotec E340 Essential CO2 Laser Cutter
