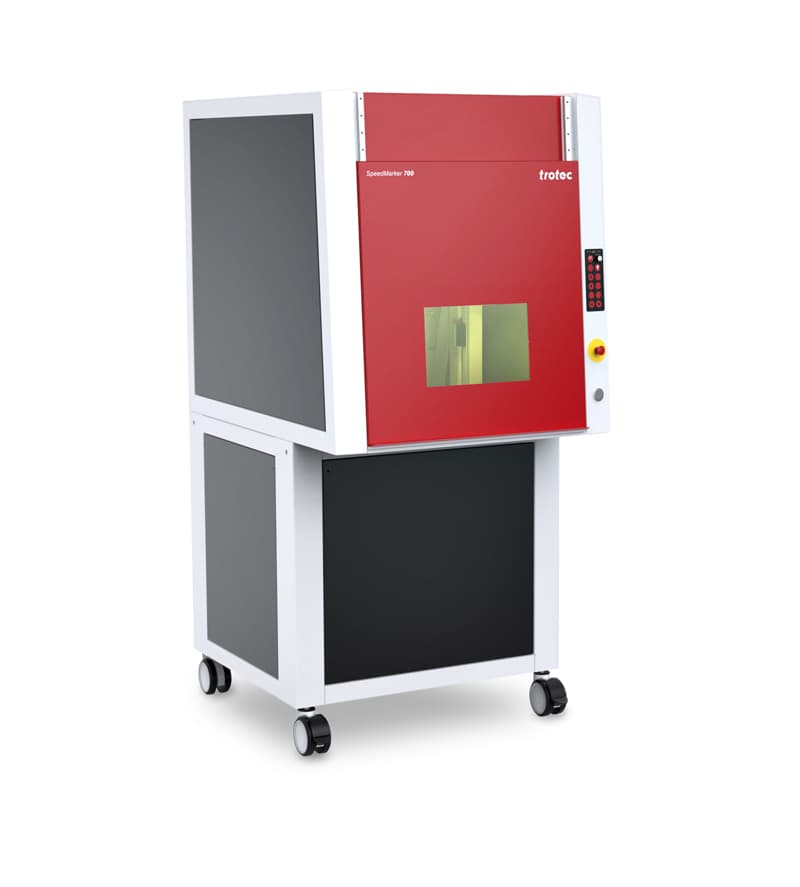

Request a QuoteTrotec SpeedMarker Series Laser Marking Systems
The SpeedMarker series is Trotec's line of industrial galvo laser marking workstations, from the compact SpeedMarker 50 to the large-format SpeedMarker 1600. Fiber and MOPA fiber sources mark metals and plastics, with a CO2 option on the SpeedMarker 700 for organic materials, all driven by SpeedMark automation software. Galvo marking speeds reach up to 12 m/s with software controlled x, y and z axes for automated production marking.
Request a Quote
Specifications
| Laser types | Fiber and MOPA fiber; CO2 available on SpeedMarker 700 |
|---|---|
| Wavelength | 1060 nm (fiber); 10,600 nm (CO2) |
| Laser power (fiber) | 30 - 50 W |
| Laser power (MOPA fiber) | 20 - 100 W |
| Laser power (CO2, SpeedMarker 700) | 60 - 120 W |
| Marking area (SpeedMarker 50) | 190 x 190 mm |
| Marking area (SpeedMarker 700) | 580 x 310 mm (fiber); 375 x 400 mm (CO2) |
| Marking area (SpeedMarker 700RT) | 310 x 310 mm |
| Marking area (SpeedMarker 1300) | 1000 x 450 mm |
| Marking area (SpeedMarker 1350 / 1600) | 1300 x 450 mm |
| Max. marking speed | Up to 12 m/s (high-speed galvo head) |
| Software | SpeedMark laser marking software |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Workstation configurations vary by model; we confirm footprint, power, and automation interfaces during the consultation.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Trotec

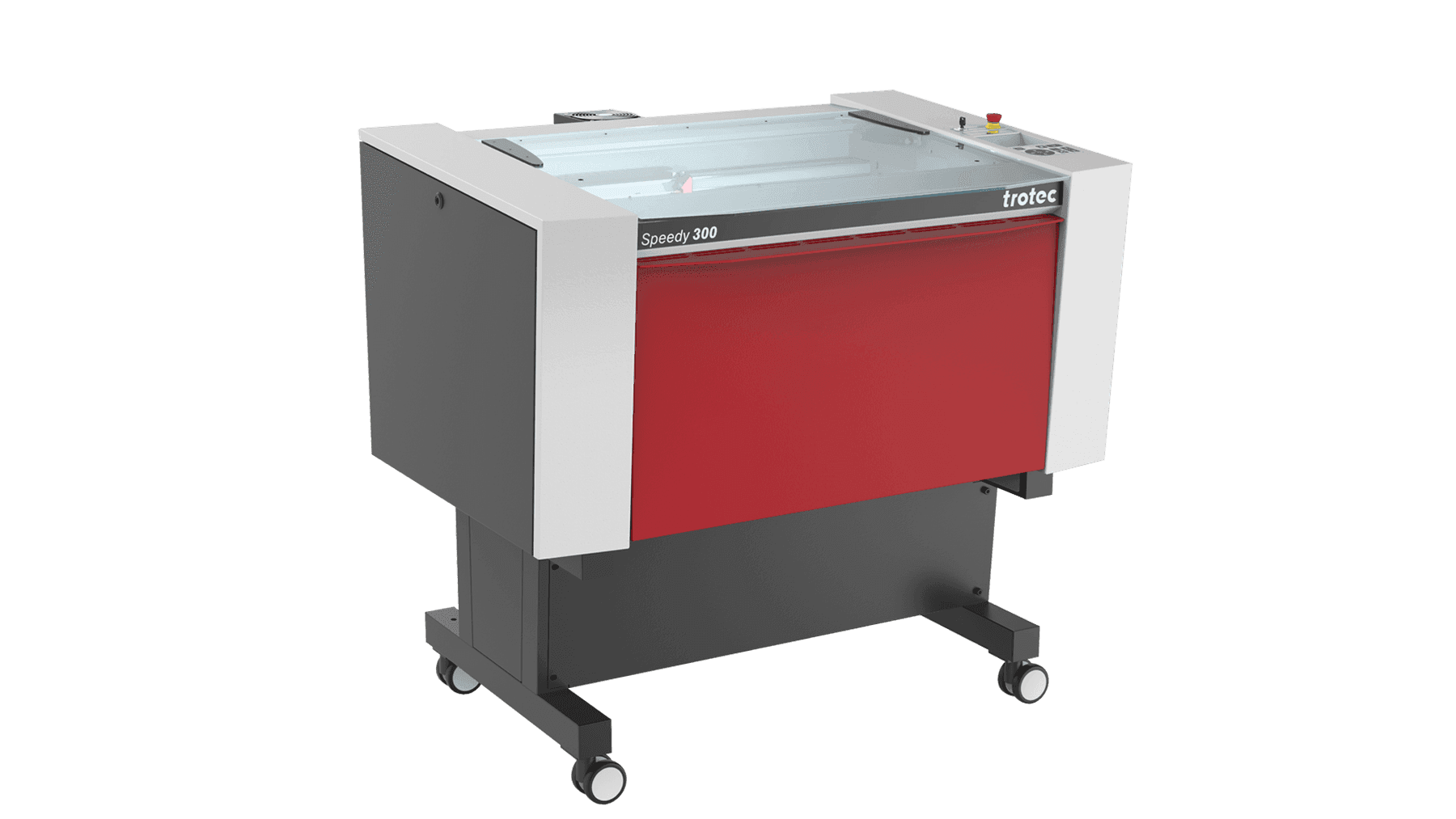

Trotec Speedy 300 Laser Engraver
The Speedy 300 is Trotec's proven mid-size laser engraver and cutter with a 29 x 17 inch work area and thousands of installations worldwide. It combines InPack Technology dust protection with engraving speeds up to 140 ips in a compact cabinet. It is available as a pure CO2 machine from 50 to 120 watts, or as the Speedy 300 flexx that pairs a CO2 laser with a 30 watt fiber laser for metal marking.
View Details
Trotec

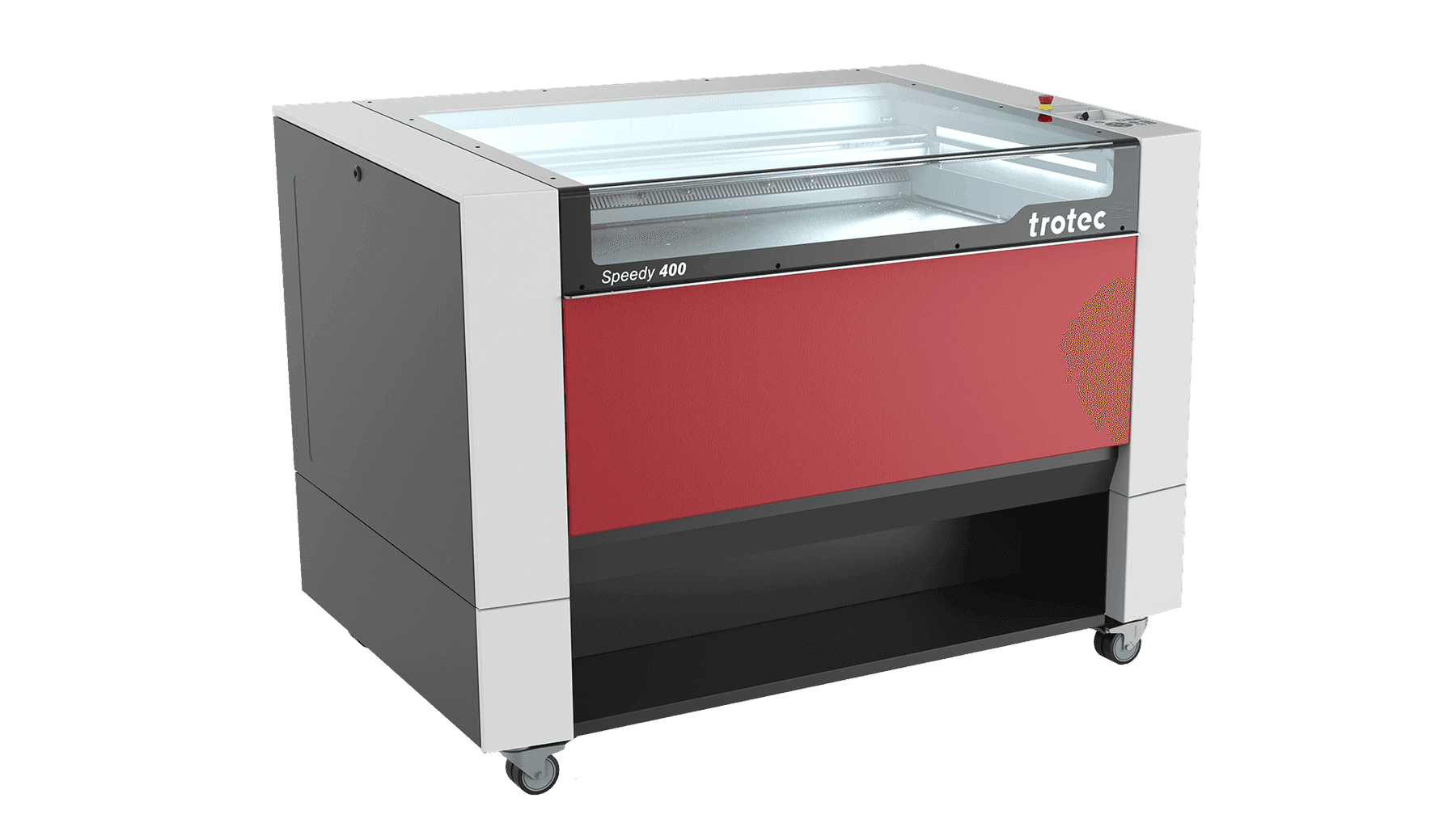

Trotec Speedy 400 Laser Engraver
The Speedy 400 is Trotec's fastest laser engraver and cutter, reaching 4.32 m/s (170 ips) across a large 40 x 24 inch work area. HDLR High Dynamic Laser Range technology and the Ceramicore CO2 source keep engraving sharp at full speed, with Ruby software and Sonar Technology autofocus. The Speedy 400 flexx version combines the CO2 laser with a fiber laser to process organics and metals in one machine.
View Details
Trotec

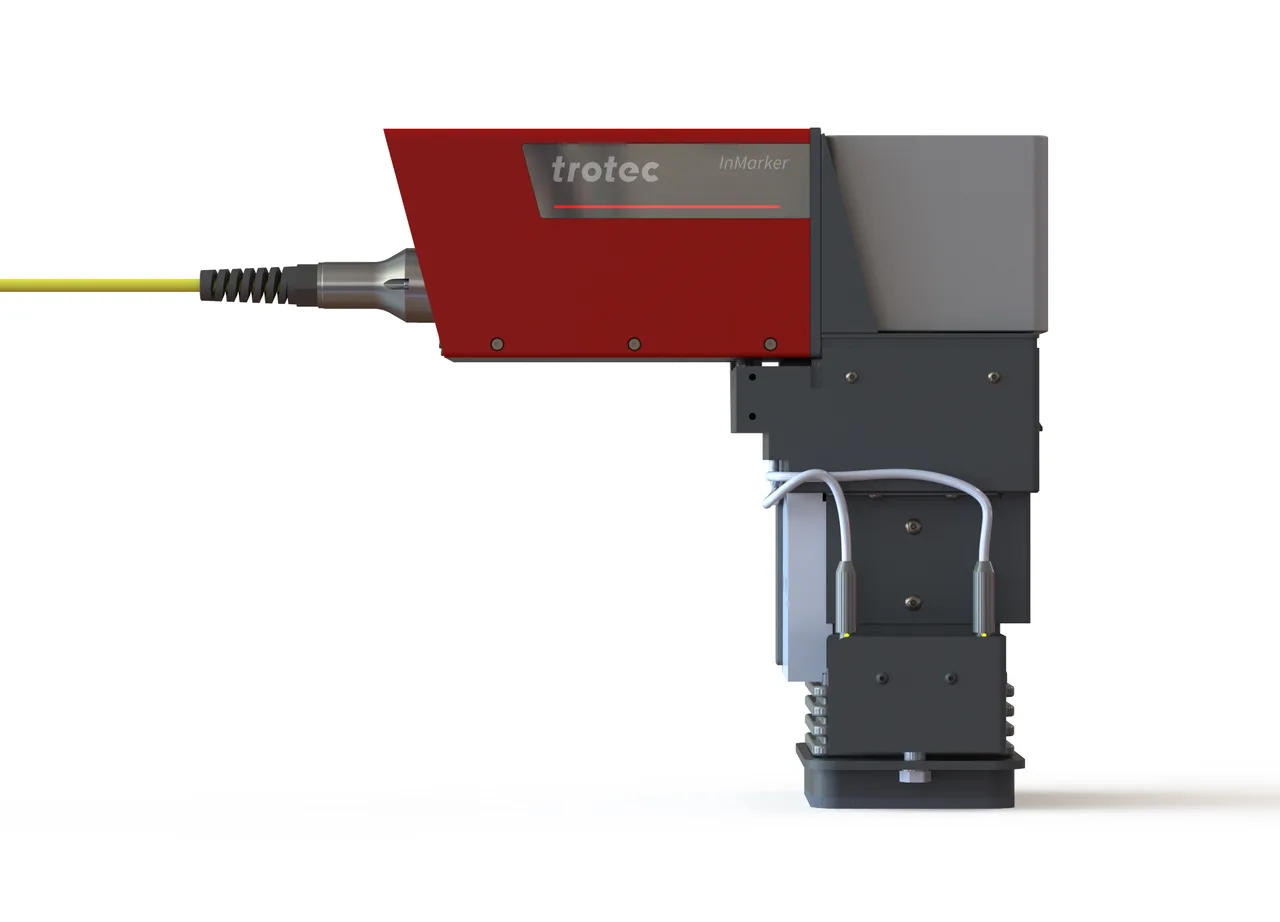

Trotec InMarker Integration Fiber Laser Marking System
The InMarker is Trotec's OEM integration marker: a 1064 nm pulsed fiber laser whose marking head weighs just 4.6 kg, built to drop into production lines and robot cells for serial numbers, logos, and data matrix/QR codes on metal parts. Yb-fiber and MOPA sources from 20 to 100 W cover marking fields up to 310 x 310 mm, and the IP54 air-cooled head with Profinet fieldbus support runs 24/7; the optional Safetycone laser-protection cone brings the whole station to Class 1 without a safety cabin.
View Details
Trotec

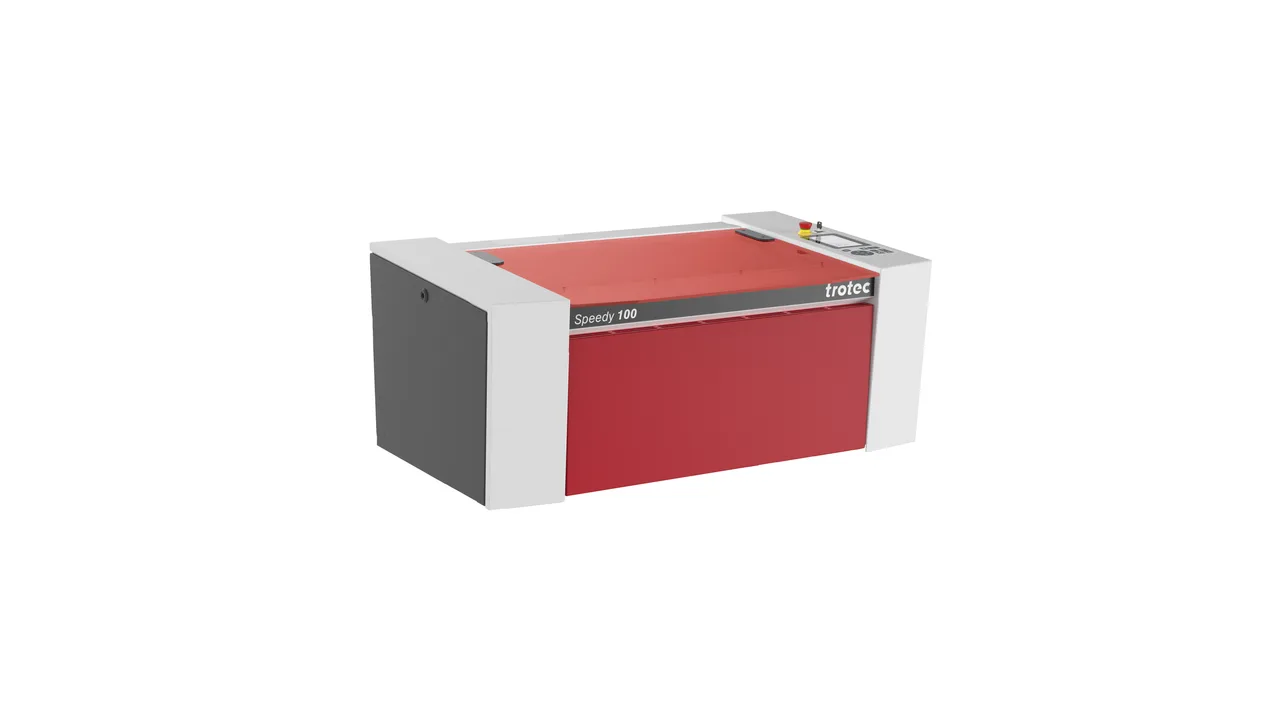

Trotec Speedy 100 cross Diode Laser Marking & Cutting System
The Speedy 100 cross puts a 40 W diode laser on the Speedy 100 flatbed platform, so one machine direct-marks metals and also engraves and cuts organics like wood, paper, leather, and plastics across a 24x12" work area. It runs up to 110 ips, roughly four times faster than typical diode lasers, with low maintenance and Ruby software, making it a cost-effective way to bring part marking, dataplates, and QR/serial-number work in-house.
View DetailsSupplies for this machine
Blades, films, laser materials, and wear parts, matched to your model by the technicians who service it.
