Request a QuoteTrotec Speedy 400 Laser Engraver
Model: Speedy 400C-8086
The Speedy 400 is Trotec's fastest laser engraver and cutter, reaching 4.32 m/s (170 ips) across a large 40 x 24 inch work area. HDLR High Dynamic Laser Range technology and the Ceramicore CO2 source keep engraving sharp at full speed, with Ruby software and Sonar Technology autofocus. The Speedy 400 flexx version combines the CO2 laser with a fiber laser to process organics and metals in one machine.
Request a Quote
Specifications
| Work area | 1016 x 610 mm (40 x 24 in) |
|---|---|
| Max. workpiece height | 305 mm (12 in) with 1.5 in or 2.0 in lens |
| Loading area | 1096 x 698 mm (43 x 27.4 in) |
| Laser type | Sealed-off CO2, air cooled, wavelength 10.6 um; flexx (CO2 + fiber) version available |
| Laser power options (CO2) | 60, 80, 100 and 120 W |
| Laser power (fiber, flexx model) | 30 W or 50 W |
| Max. processing speed | 4.32 m/s (170 ips) |
| Max. acceleration | 50 m/s2 (1969 ips2) |
| Motion system | Brushless DC servo motors |
| Software | Ruby |
| Dimensions (W x D x H) | 1428 x 952 x 1072.5 mm (56.2 x 38.5 x 42.2 in) |
| Weight | Approx. 295 - 310 kg (650 - 684 lbs), depending on laser power |
| Laser class | CDRH laser class 2; CE compliant, FDA listed |
| Electrical | 1~ AC 110-230V 50/60Hz, approx. 1200 W to 2100 W |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 110V outlet. Plan for exhaust or filtration and clearance for the 56 inch wide cabinet; we spec both during the consultation.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Trotec
Trotec Speedy 360 Laser Engraver
The Speedy 360 is a premium 32 x 20 inch laser engraver and cutter built for professional users with high productivity requirements. It engraves at up to 140 ips with OptiMotion motion control, Sonar Technology autofocus and the Run on Ruby touch panel workflow. It is offered as a CO2 machine up to 120 watts or as the Speedy 360 flexx with an additional 30 to 50 watt fiber laser.
View Details
Trotec
Trotec SP Series Large-Format Laser Cutters
The SP Series covers Trotec's large-format CO2 laser cutters for signage, displays and high-volume production. The SP500 offers a 49 x 28 inch working area with up to 200 watts of CO2 power, while the flatbed SP2000 scales to a 66 x 98 inch working area with up to 400 watts and four-side access. Both run JobControl Expert software with servo motion systems built for continuous production cutting.
View Details
Trotec

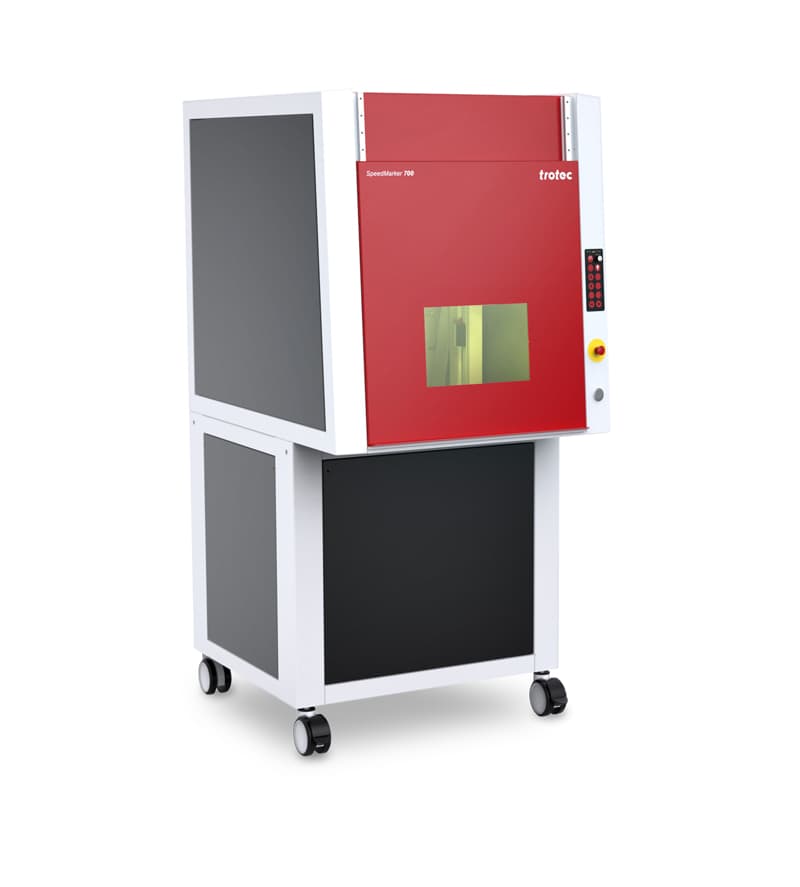

Trotec SpeedMarker Series Laser Marking Systems
