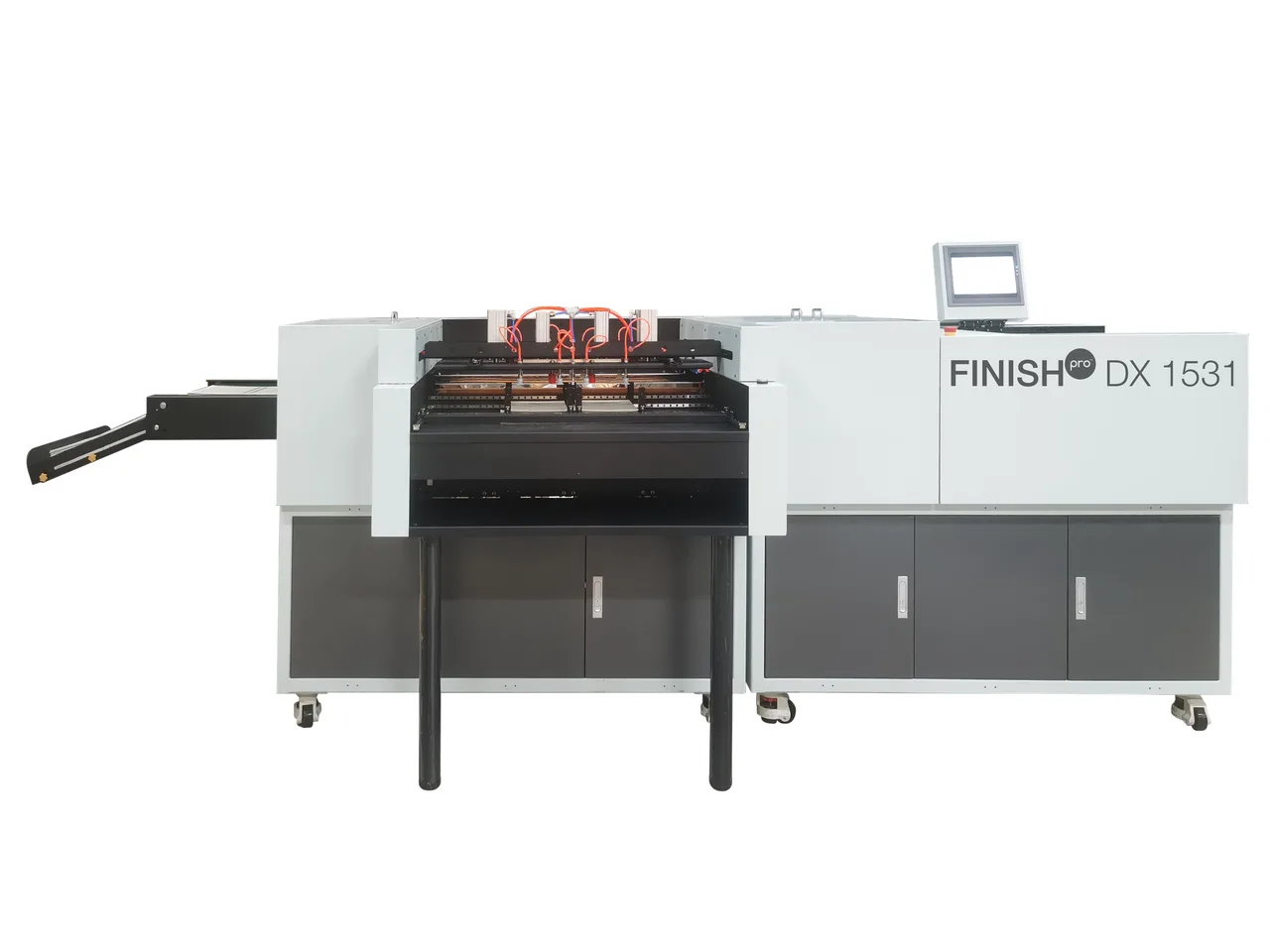

Request a QuoteSkandacor FINISHpro DX 1531 Case Maker & Sheet Duplexer
Model: 7H20C450
The FINISHpro DX 1531 is an automatic case making and sheet duplexing machine for medium-scale book manufacturers, producing hardcover cases up to 15.7x31.5 inches at up to 5 pieces per minute with a single operator. Automatic feeding, positioning, and anti-skew technology align boards, center strips, and cover sheets, while the hot-melt gluing station self-cleans and job changeovers between sheet sizes are fully automatic. An optional finished-case stacker with foldable trolley streamlines handling.
Request a Quote
Specifications
| Finished Case Size | 6.3x11.8" min to 15.7x31.5" max |
|---|---|
| Speed | Up to 5 pieces/min |
| Turn-In / Flap | 0.59 - 0.79" (15 - 20 mm) |
| Cover Paper | 128 - 300 gsm |
| Gluing | Automatic hot melt with auto-clean system |
| Feeding | Automatic suction-cup cover feeding with anti-skew alignment |
| Options | Automatic cover corner cut; finished-case collection trolley |
| Dimensions | 142x47x46" |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
We confirm power, space, and access requirements during a pre-install site survey, so there are no surprises on delivery day.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Skandacor

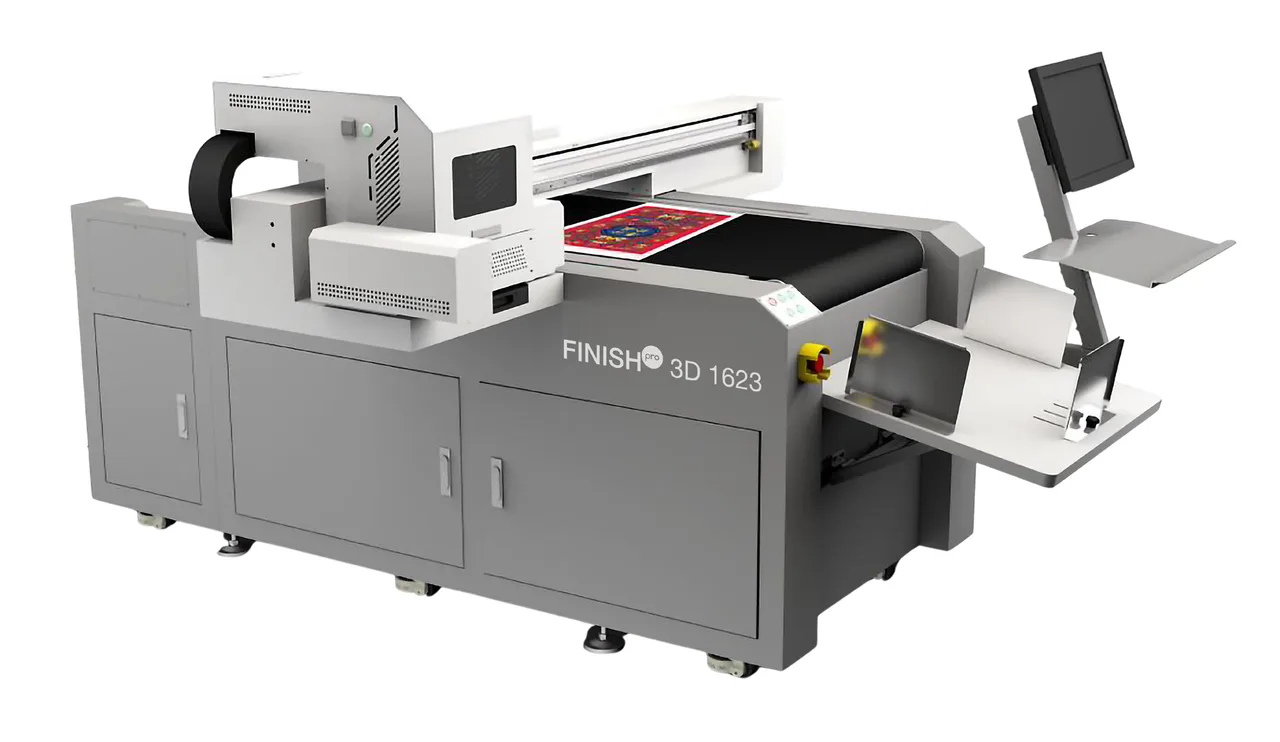

Skandacor FINISHpro 3D 1623 Spot UV Printer
The FINISHpro 3D 1623 is a spot varnish UV inkjet printer that adds raised textures, tactile details, and high-gloss effects to printed sheets up to 23.6x16.5 inches. A CCD camera registration system aligns each sheet to within 0.2 mm, varnish builds from 40 up to 500 microns at 720x720 dpi, and a 12x18 sheet finishes in about 40 seconds. The auto feeder holds roughly 700 sheets of 250 gsm, and an integrated PC, software, and workstation are included - Skandacor positions it as the first inkjet embellishment press under $70K.
View Details
Skandacor

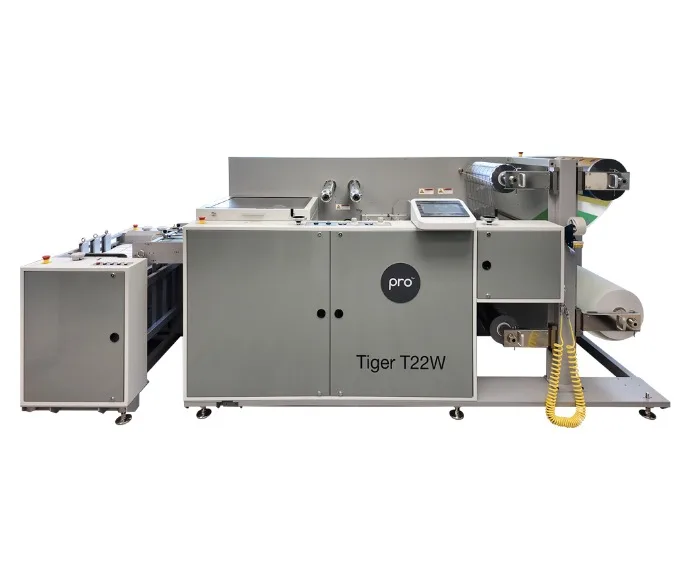

Skandacor LAMpro Tiger T22W Roll-to-Sheet Industrial Laminator
The LAMpro Tiger T22W is a roll-fed industrial laminator, cutter, and re-stacker that runs at up to 65 m/min (about 213 ft/min) - an order of magnitude faster than sheet-fed machines. Three supply mandrels laminate printed top and bottom webs to a core material up to 488 gsm with optical-eye alignment, dual induction and infrared heating, and a flying guillotine that sheets output up to 27 inches long into a 19 inch stacker. Built for thick cards, flexible packaging, and book covers.
View Details
Skandacor

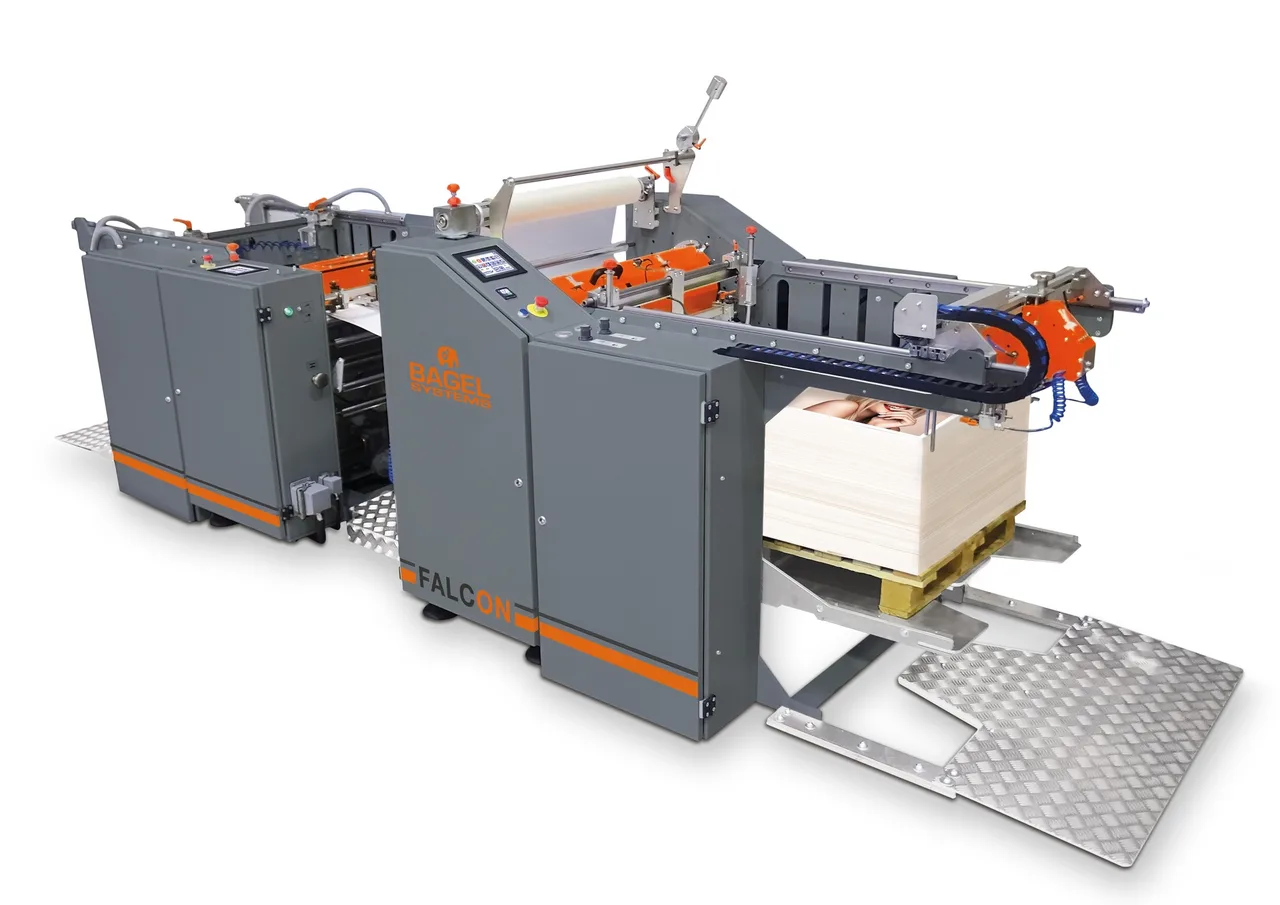

Skandacor Bagel Falcon B1 Fully Automatic Industrial Laminator
