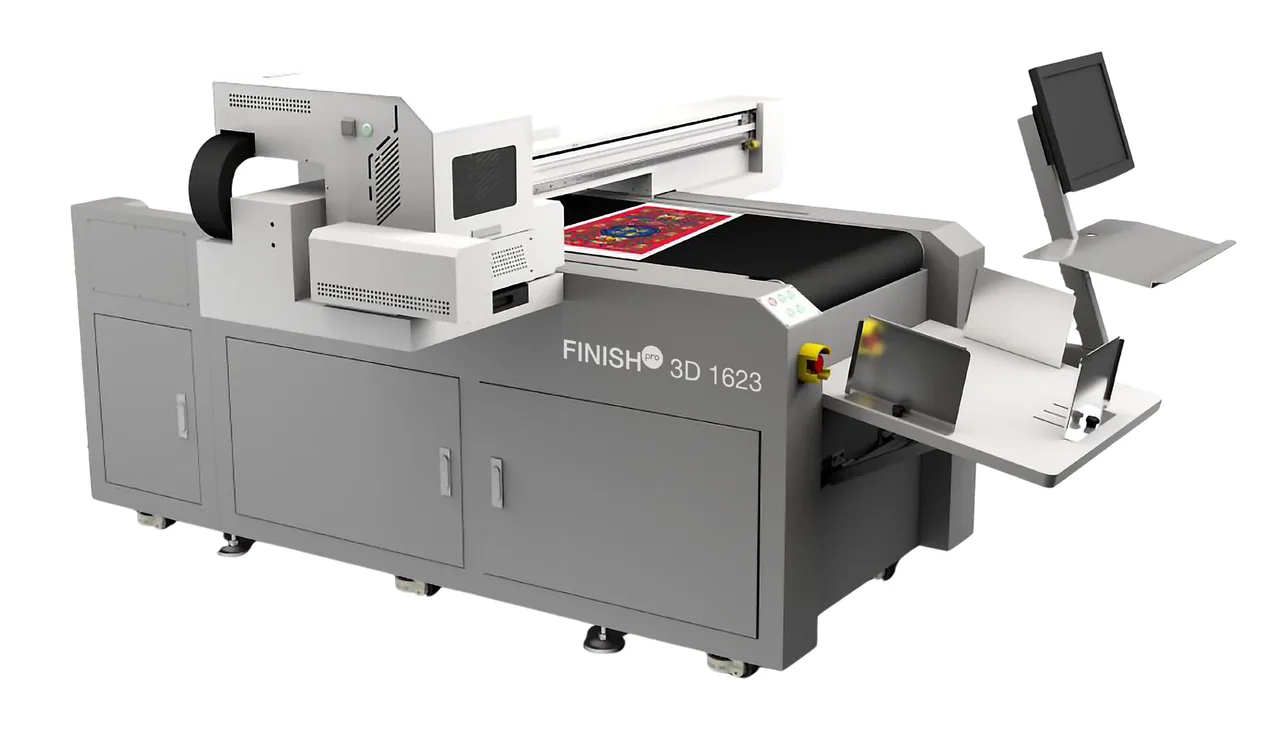

Request a QuoteSkandacor FINISHpro 3D 1623 Spot UV Printer
Model: 6S116042
The FINISHpro 3D 1623 is a spot varnish UV inkjet printer that adds raised textures, tactile details, and high-gloss effects to printed sheets up to 23.6x16.5 inches. A CCD camera registration system aligns each sheet to within 0.2 mm, varnish builds from 40 up to 500 microns at 720x720 dpi, and a 12x18 sheet finishes in about 40 seconds. The auto feeder holds roughly 700 sheets of 250 gsm, and an integrated PC, software, and workstation are included - Skandacor positions it as the first inkjet embellishment press under $70K.
Request a Quote
Specifications
| Print Size | 8.26x11.69" min to 23.6x16.5" max |
|---|---|
| Print Speed | 40 seconds per 12x18" sheet at 40 microns |
| Paper Weight | 200 - 400 gsm (auto feed); manually placed sheets up to 30 mm thick |
| Max Varnish Thickness | 500 microns |
| Varnish Types | UV-cured clear: gloss, matte, texture matte (2.5 L integrated tank) |
| Print Quality | 720x720 dpi |
| Registration | CCD camera-assisted, alignment within 0.2 mm |
| Feeder Capacity | 8.25" pile (approx. 700 sheets of 250 gsm) |
| Electrical | 220 V, 15 A, 1 Ph (NEMA 6-15) |
| Dimensions / Weight | 106.3x86.6x55.1", 1,102 lb |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a 220 V, 15 A circuit (NEMA 6-15). Footprint approx. 106x87".
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Skandacor

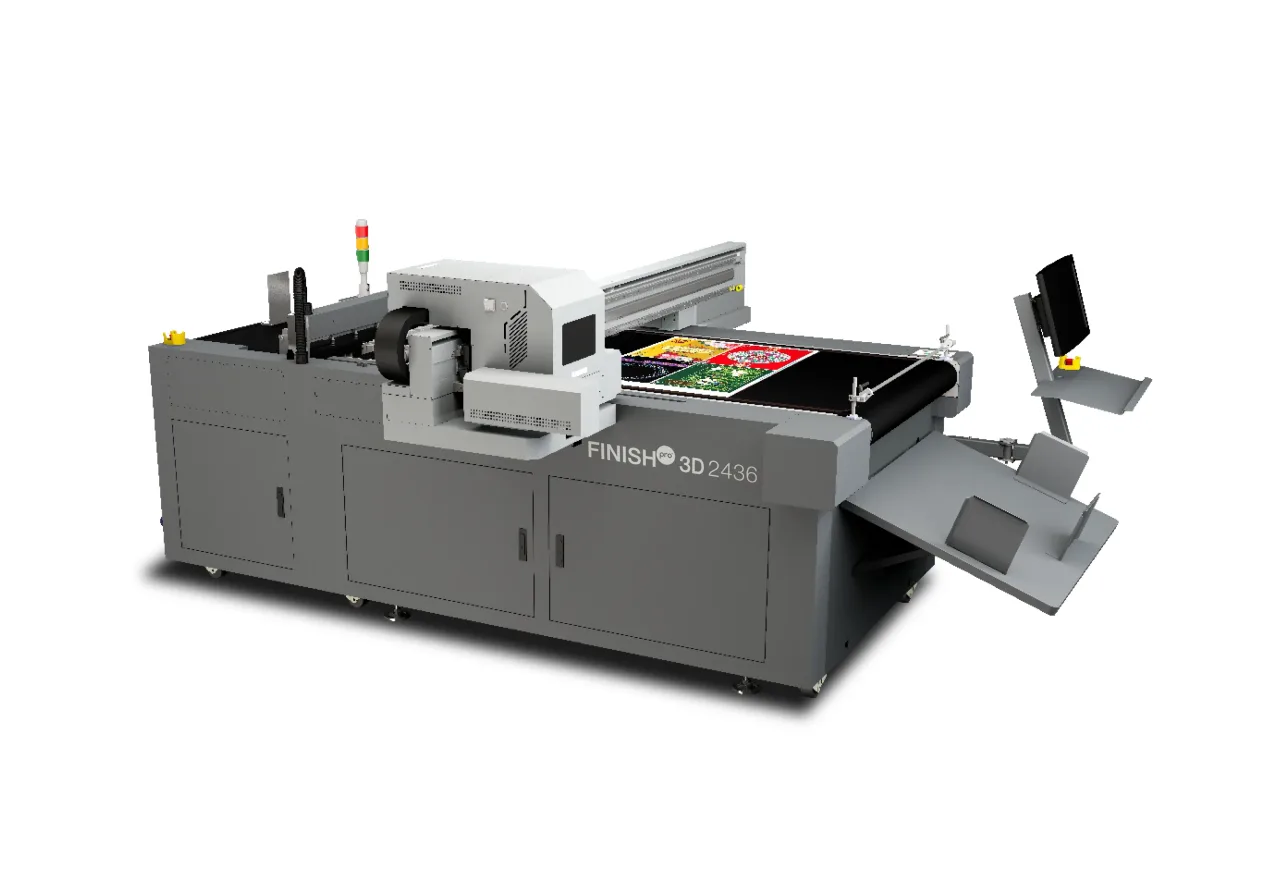

Skandacor FINISHpro 3D 2436 Large-Format Spot UV Printer
The FINISHpro 3D 2436 scales spot UV embellishment to sheets up to 36.2x24.4 inches, adding raised textures and gloss effects with automatic paper loading and unloading. CCD camera registration keeps alignment within 0.2 mm, varnish builds to 500 microns at 720x720 dpi, and an A3 job completes in about 40 seconds. The integrated PC, software, and workstation are included, bringing B2+ format digital embellishment in-house.
View Details
Skandacor

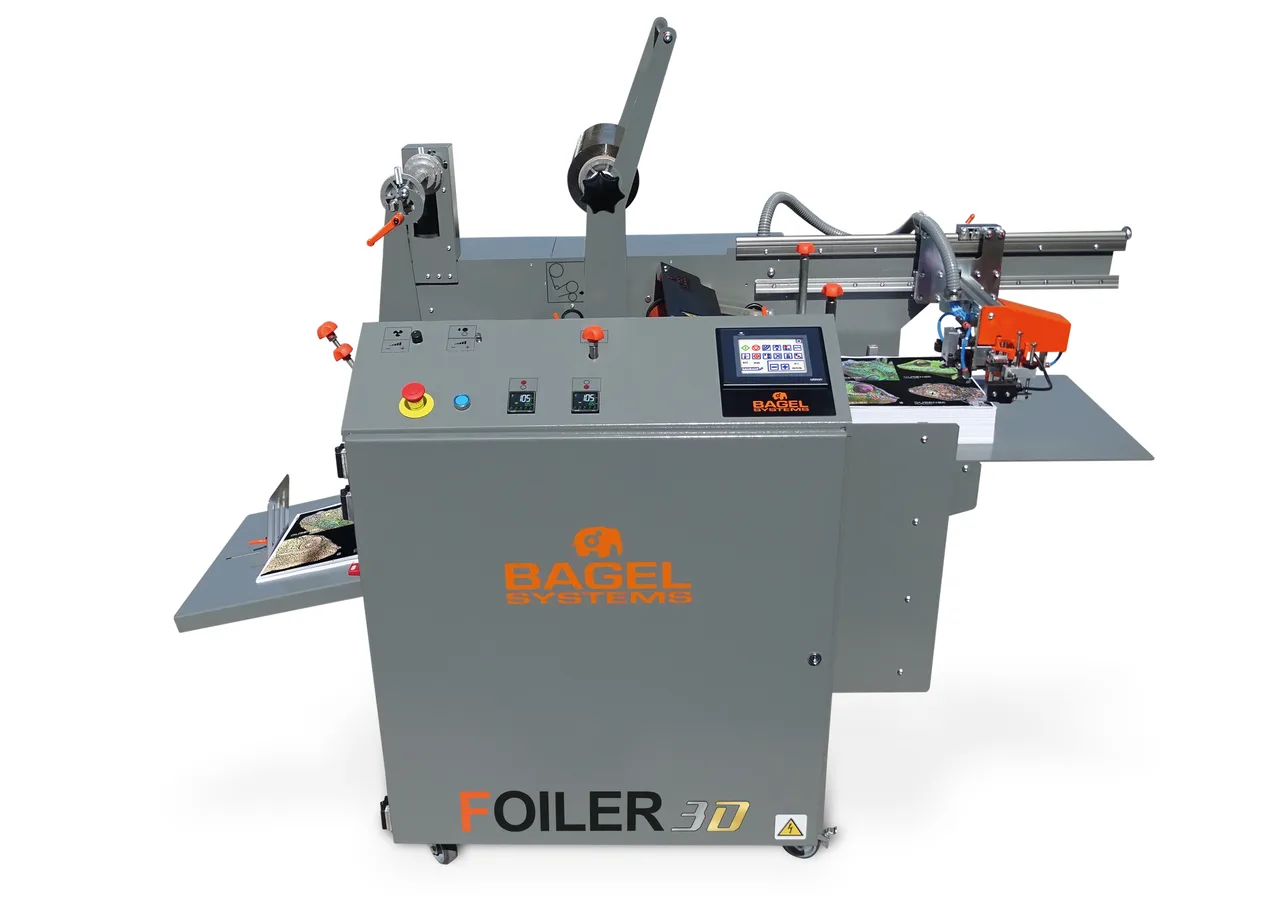

Skandacor Bagel Foiler 3D Auto Raised-Foil System
The Bagel Foiler 3D Auto applies metallic and holographic foil to raised UV varnish, uncoated papers, and other hard-to-foil surfaces - taking digital embellishment into the third dimension. A unique roller configuration with oil-filled, sealed heating and pressure rollers foils varnish layers up to 80 microns at 33 ft/min, while an anti-scratch decurling bar keeps prints clean and a fully automatic pneumatic feeder with 11.8 inch stack keeps production moving.
View Details
Skandacor

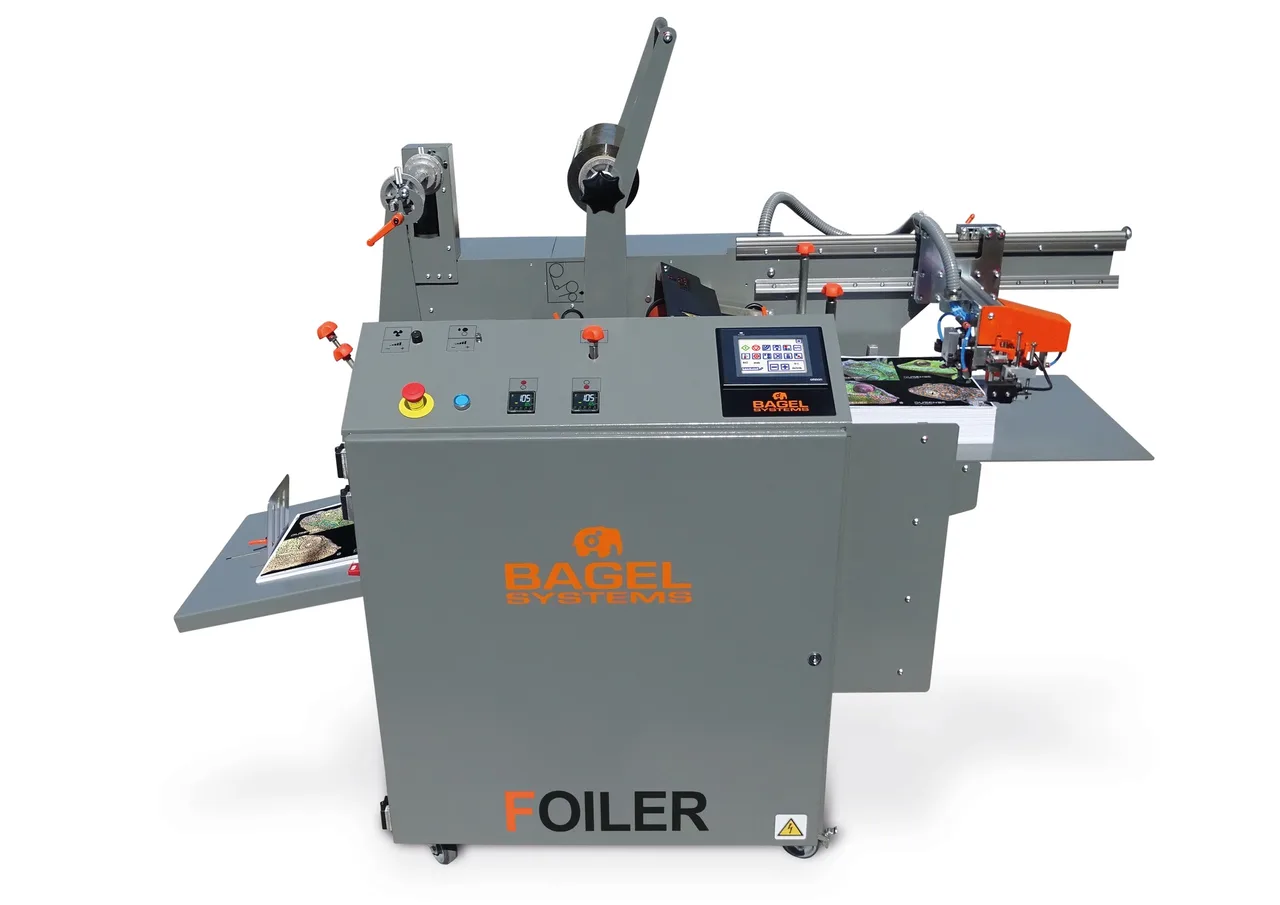

Skandacor Bagel Foiler B3 Auto Digital Foiling System
