Request a QuoteDuplo DPB-500 Perfect Binder
Model: DPB-500
The Duplo DPB-500 is a fully automatic single clamp perfect binder engineered for short to medium runs and variable data book production. It cycles up to 525 times per hour and automatically adjusts side glue wheels, scoring wheels, and cover guides to each book's thickness, so a single operator can run books from 0.04 to 2.01 inches thick back to back. A vacuum belt cover feeder with miss and double feed detection plus a 20 job touchscreen memory keep changeovers to a button press.
Request a Quote
Specifications
| Speed | Up to 525 cycles per hour (up to 360 productions per hour) |
|---|---|
| Binding Thickness | 0.04" to 2.01" (1 to 51 mm) plus cover thickness |
| Book Block Size | 4.72" x 4.72" (120 x 120 mm) to 14.17" x 12.6" (360 x 320 mm) |
| Cover Size | 4.72" x 9.84" (120 x 250 mm) to 14.17" x 27.4" (360 x 696 mm) |
| Cover Feed | Belt suction with miss/double-feed detection; stack height up to 2.76" (70 mm) |
| Book Block Paper | Fine 52-157 gsm; art/coated 79-157 gsm |
| Cover Paper | Fine 81.4-302 gsm; art/coated 104.7-302 gsm |
| Milling | Up to 0.16" (4 mm), with 2 notching/roughening tools and dust extraction |
| Scoring | 4 scores (up to 6 with optional wing scoring) |
| Job Memory | Touchscreen control panel, up to 20 jobs |
| Stacker Capacity | Up to 7.87" (200 mm) |
| Dimensions (LxWxH) | 109.84" x 36.54" x 52.87" |
| Weight | 1,529 lb |
| Power Requirements | Three-phase 208V/240V, 60Hz (rated 3.2 kW, 8A) |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Duplo literature lists both three-phase 208/240V and a single-phase rating; we confirm the exact electrical service with Duplo before installation. Plan for a 110 by 37 inch footprint and 1,529 lb floor load.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo
Duplo DB-300 Perfect Binder
The Duplo DB-300 is a stand-alone single clamp perfect binder built for bringing book, manual, and report production in-house. It produces square-back books up to 2 inches thick at up to 400 cycles per hour, with milling, notching, side gluing, and adjustable nipping handled in one compact floor unit. It runs standard EVA hot-melt with a Planamelt option for coated and uncoated stocks, all controlled from a 7 inch color touchscreen.
View Details
Duplo
Duplo 700i Booklet System
The Duplo 700i pairs the DSC-10/60i Suction Collator with the DBM-700 Bookletmaker to collate, stitch, fold, and face trim booklets in one automated line at up to 5,200 booklets per hour. It produces saddle stitched booklets up to 30 sheets, or up to 50 sheets with a square spine finish, and supports 4-stitch production for landscape catalogs and calendars. Job setup is fully automated from the PC Controller, making it a strong fit for shops running longer booklet work on demand.
View Details
Duplo

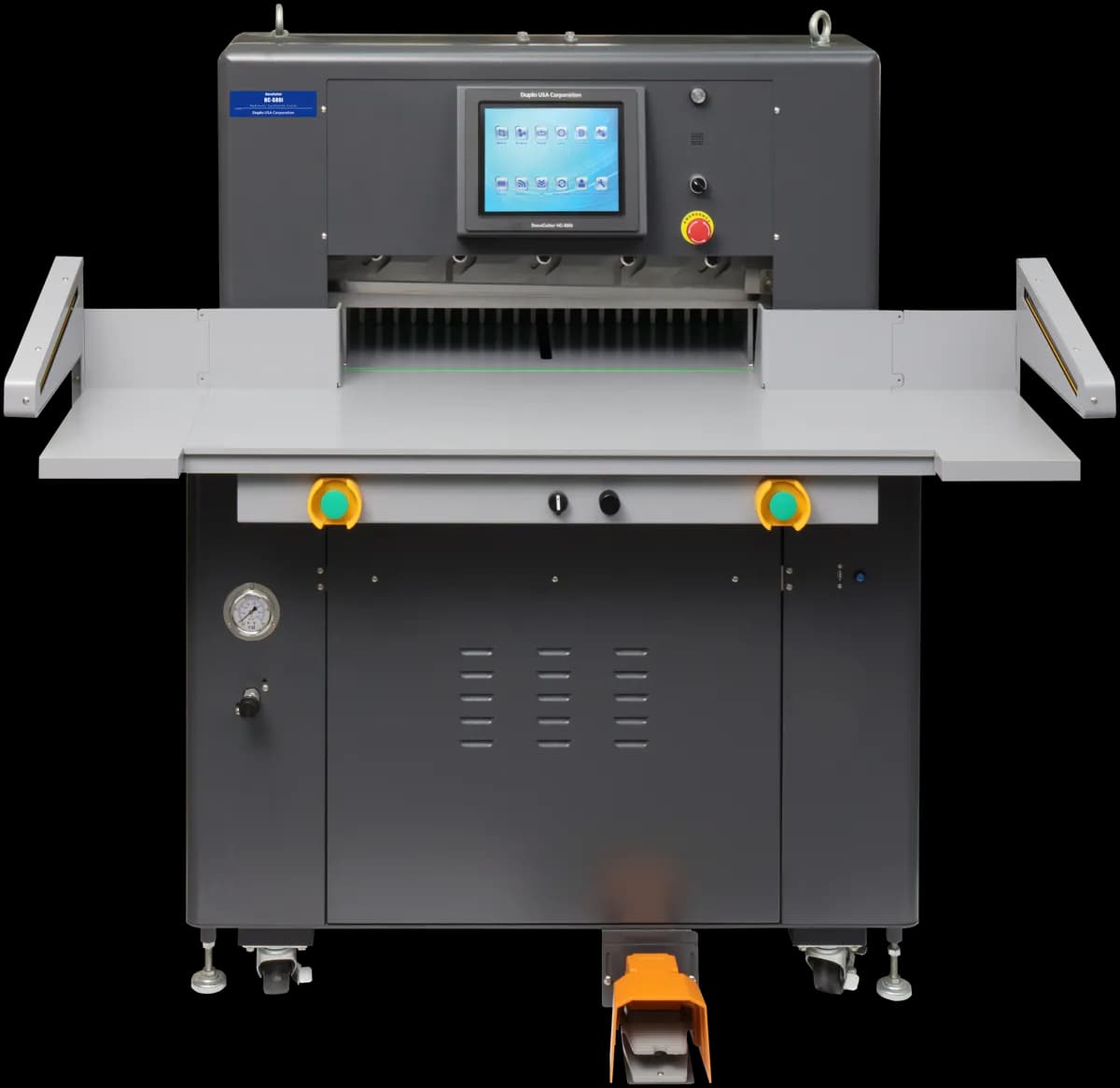

Duplo HC-680i Hydraulic Cutter
