Request a QuoteDuplo DB-300 Perfect Binder
Model: DB-300
The Duplo DB-300 is a stand-alone single clamp perfect binder built for bringing book, manual, and report production in-house. It produces square-back books up to 2 inches thick at up to 400 cycles per hour, with milling, notching, side gluing, and adjustable nipping handled in one compact floor unit. It runs standard EVA hot-melt with a Planamelt option for coated and uncoated stocks, all controlled from a 7 inch color touchscreen.
Request a Quote
Specifications
| Maximum Book Size | 13" x 13" |
|---|---|
| Minimum Book Size | 3" x 5" |
| Maximum Book Cover Size | 13" x 33" |
| Maximum Binding Thickness | Up to 2" |
| Cycle Speed | Up to 400 cycles per hour |
| Production Speed | Up to 240 books per hour |
| Glue | Hot-melt EVA to spine and sides; Planamelt Pro glue option |
| Glue Warm-up | 35-45 minutes (varies by glue type); standby mode 1-360 minutes |
| Control Panel | 7" color touchscreen |
| Operation Modes | Perfect bind (manual and auto); pad (manual) |
| Dimensions (LxWxH) | 62.6" x 24.3" x 48.1" |
| Weight | 418 lb |
| Power Source | 110V 50/60Hz 12A (optional 220V 50Hz) |
| Certification | ETL / CETL |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a 110V 50/60Hz 12A circuit (optional 220V configuration). Floor unit at 418 lb.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo

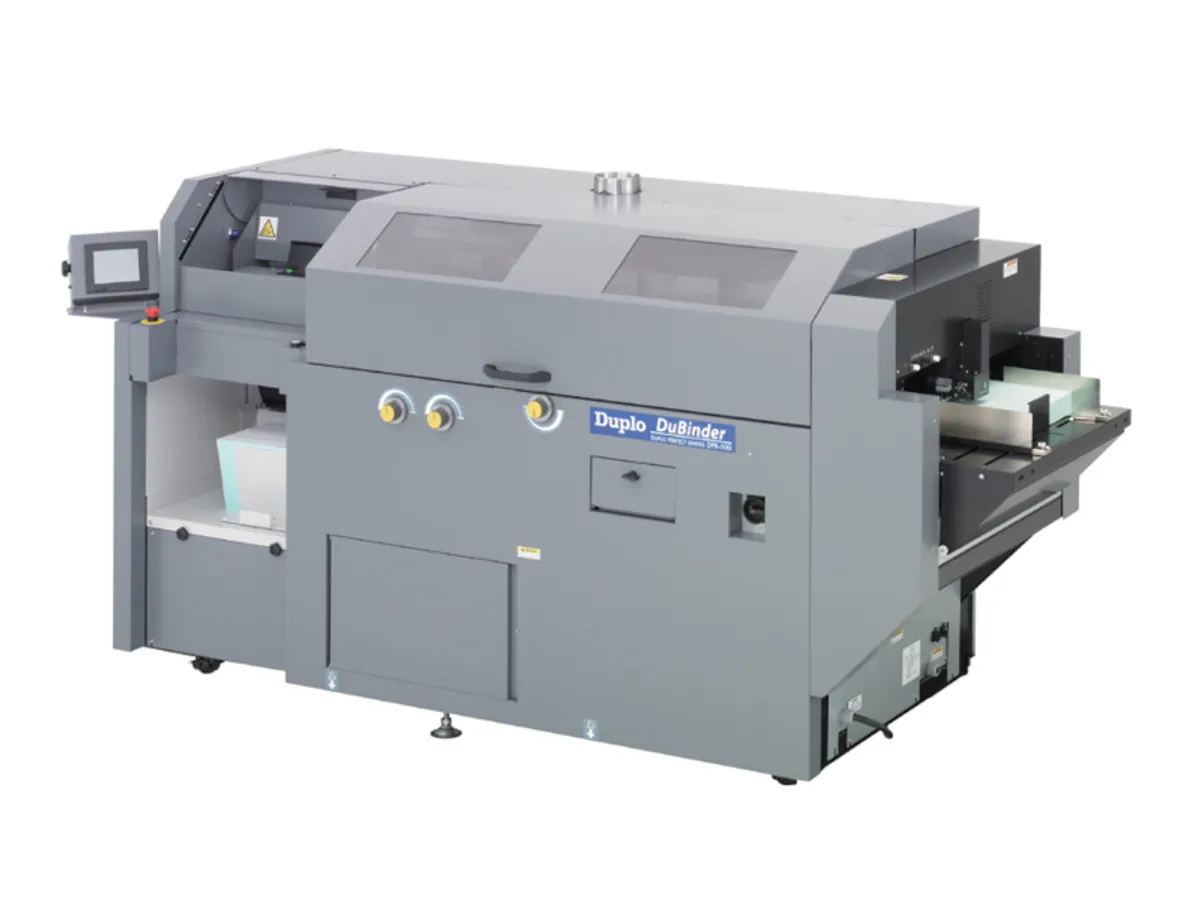

Duplo DPB-500 Perfect Binder
The Duplo DPB-500 is a fully automatic single clamp perfect binder engineered for short to medium runs and variable data book production. It cycles up to 525 times per hour and automatically adjusts side glue wheels, scoring wheels, and cover guides to each book's thickness, so a single operator can run books from 0.04 to 2.01 inches thick back to back. A vacuum belt cover feeder with miss and double feed detection plus a 20 job touchscreen memory keep changeovers to a button press.
View Details
Duplo
Duplo 700i Booklet System
The Duplo 700i pairs the DSC-10/60i Suction Collator with the DBM-700 Bookletmaker to collate, stitch, fold, and face trim booklets in one automated line at up to 5,200 booklets per hour. It produces saddle stitched booklets up to 30 sheets, or up to 50 sheets with a square spine finish, and supports 4-stitch production for landscape catalogs and calendars. Job setup is fully automated from the PC Controller, making it a strong fit for shops running longer booklet work on demand.
View Details
Duplo

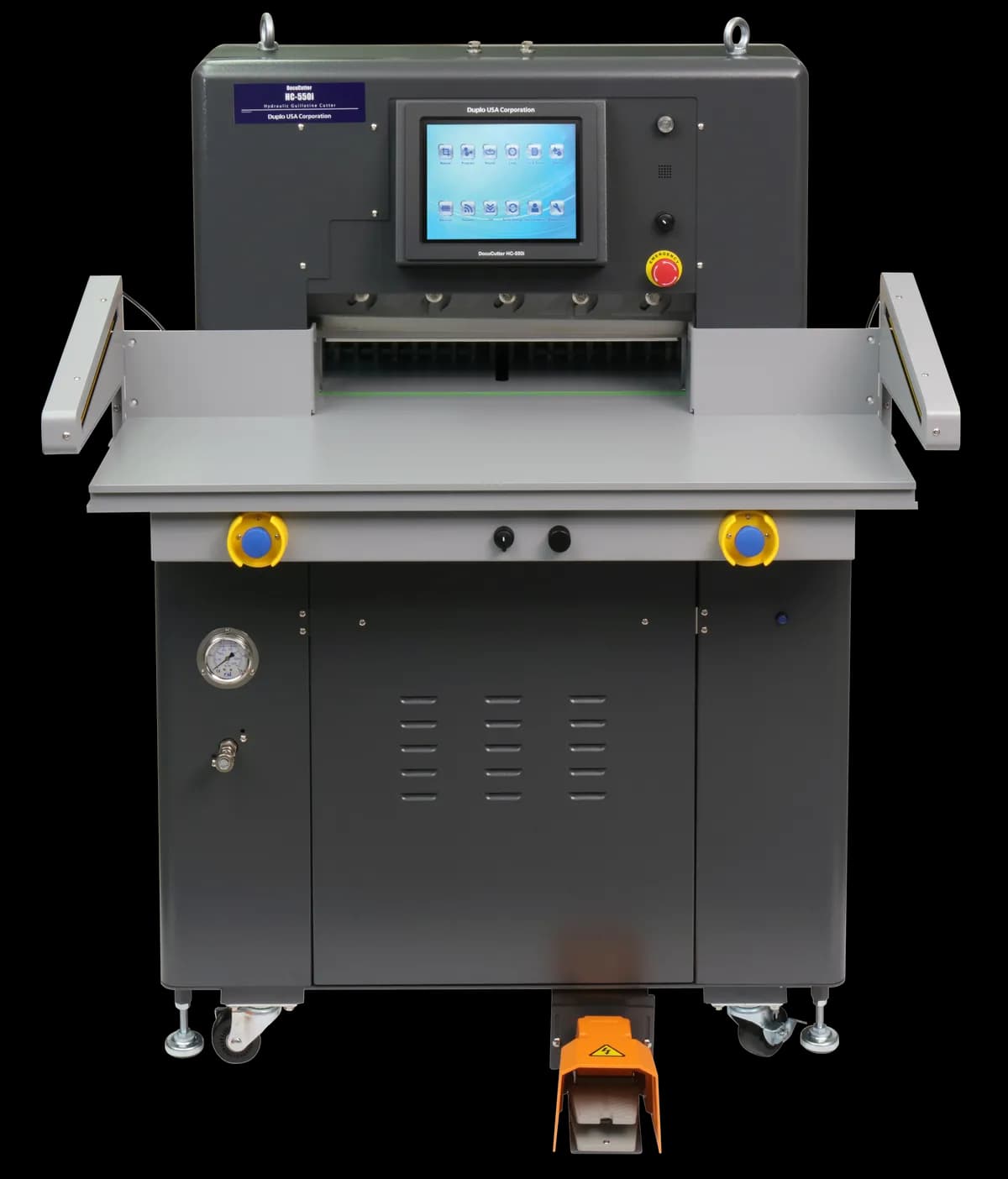

Duplo HC-550i Hydraulic Cutter
The Duplo HC-550i is a programmable hydraulic guillotine cutter that slices cleanly through high piles of stock up to 21.65 inches wide, ideal for postcards, direct mail, and perfect bound books. Jobs are programmed on a 10.4 inch touchscreen with up to 999 stored jobs of 128 cuts each, and the powered backgauge advances automatically after every cut. An LED cut line, Category 4 safety light curtain, and dual palm buttons keep production fast and safe.
View Details
Challenge

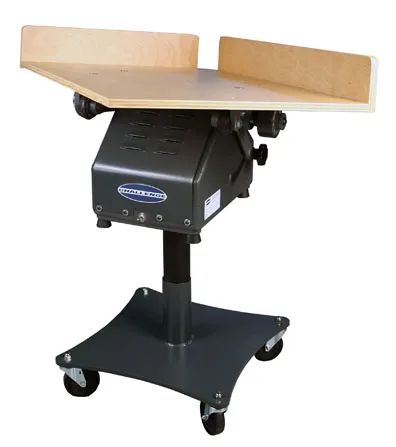

Challenge Combination Series Paper Joggers
