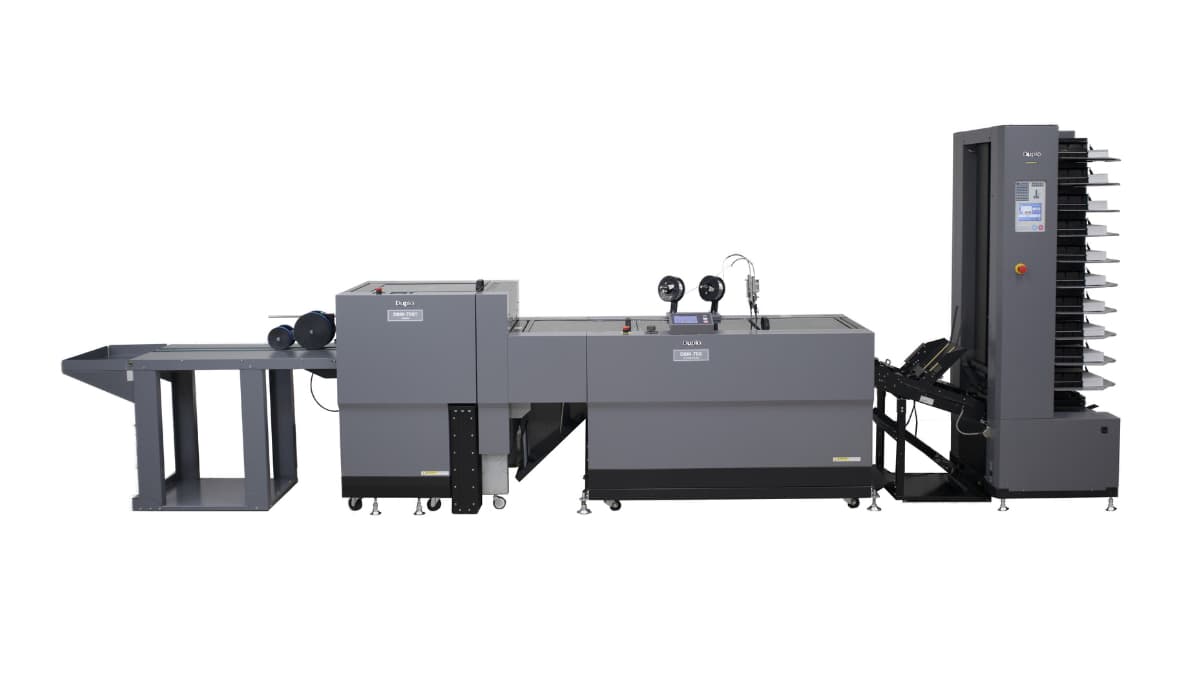

Request a QuoteDuplo 700i Booklet System
Model: 700i
The Duplo 700i pairs the DSC-10/60i Suction Collator with the DBM-700 Bookletmaker to collate, stitch, fold, and face trim booklets in one automated line at up to 5,200 booklets per hour. It produces saddle stitched booklets up to 30 sheets, or up to 50 sheets with a square spine finish, and supports 4-stitch production for landscape catalogs and calendars. Job setup is fully automated from the PC Controller, making it a strong fit for shops running longer booklet work on demand.
Request a Quote
Specifications
| Production Speed | Up to 5,200 booklets per hour |
|---|---|
| Paper Size (Saddle Stitch & Fold) | 4.13" x 6.69" to 14.02" x 24.02" |
| Booklet Capacity | Up to 30 sheets saddle stitched with or without square spine; up to 50 sheets with square spine (DBM-700S option) |
| Paper Weight | 52.3-160 gsm uncoated/fine quality; 84-160 gsm coated; covers up to 350 gsm |
| Stitching | 2 or 4 stitches using 2 Hohner stitch heads; optional 4-stitch head kit; saddle, side, and corner stitching |
| Maximum Bins | 60 (six DSC-10/60i towers) |
| Bin Capacity | 2.56" / 65 mm per bin |
| Trimming | Fore edge trim standard; three-knife trimming with optional DKTS-200 Two Knife Trimmer; 8mm gutter cutter option for 2-up finishing |
| Power Requirements | DBM-700 Bookletmaker: 120V 60Hz 6A 565W; DSC-10/60i Collator: 120V 60Hz 7.9-8.4A 910-960W |
| Dimensions (WxDxH) | DBM-700: 77.8" x 38.8" x 59.3"; DSC-10/60i Collator: 34" x 33" x 78" |
| Net Weight | DBM-700: 806.9 lb; DSC-10/60i Collator: 674 lb |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Modular system: bookletmaker and collator each run on 120V 60Hz circuits. Floor space depends on configuration; we plan the layout during the site survey.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo

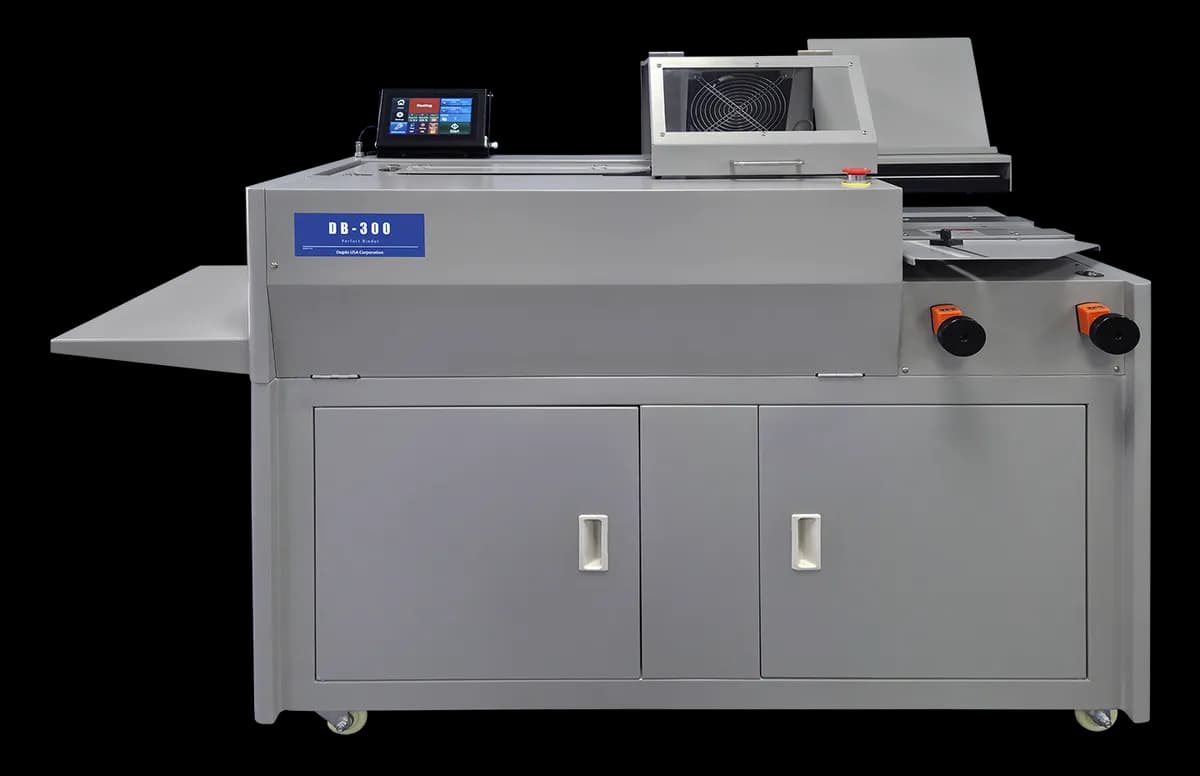

Duplo DB-300 Perfect Binder
The Duplo DB-300 is a stand-alone single clamp perfect binder built for bringing book, manual, and report production in-house. It produces square-back books up to 2 inches thick at up to 400 cycles per hour, with milling, notching, side gluing, and adjustable nipping handled in one compact floor unit. It runs standard EVA hot-melt with a Planamelt option for coated and uncoated stocks, all controlled from a 7 inch color touchscreen.
View Details
Duplo
Duplo DPB-500 Perfect Binder
The Duplo DPB-500 is a fully automatic single clamp perfect binder engineered for short to medium runs and variable data book production. It cycles up to 525 times per hour and automatically adjusts side glue wheels, scoring wheels, and cover guides to each book's thickness, so a single operator can run books from 0.04 to 2.01 inches thick back to back. A vacuum belt cover feeder with miss and double feed detection plus a 20 job touchscreen memory keep changeovers to a button press.
View Details
Duplo

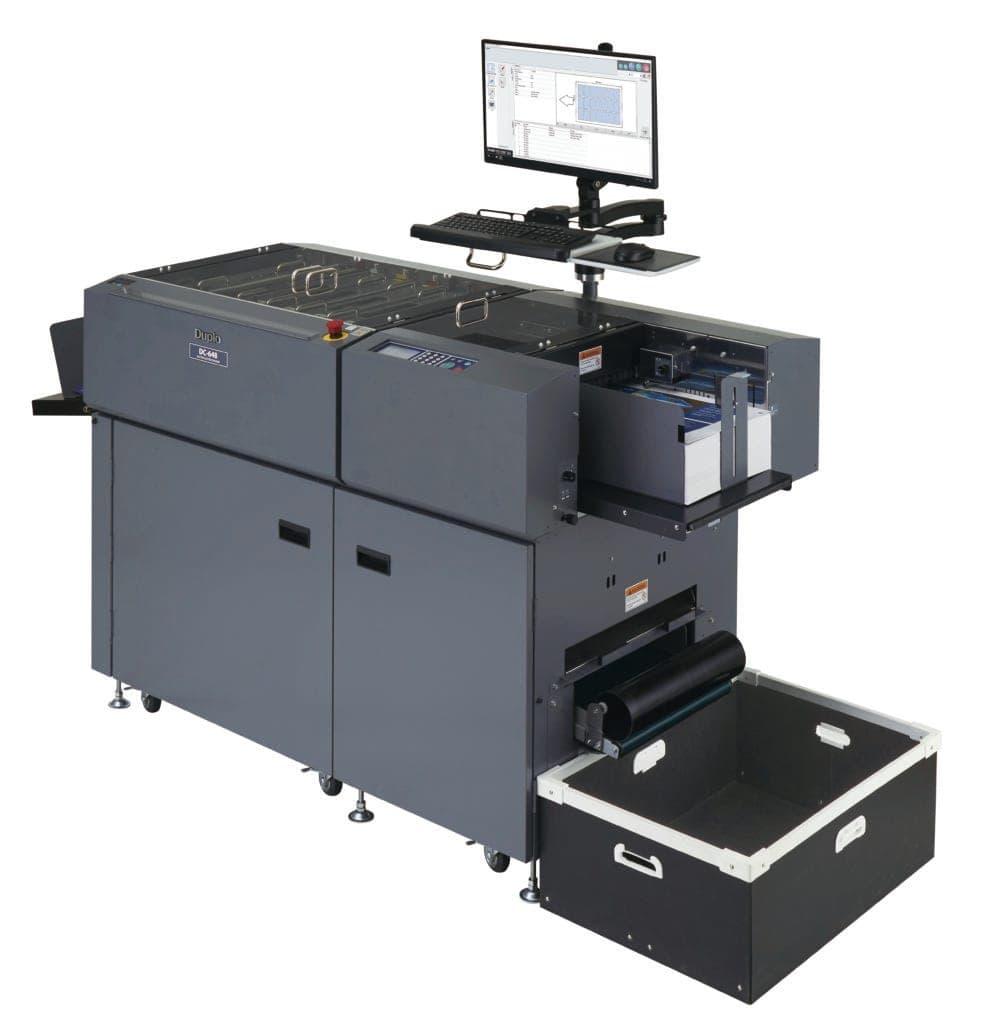

Duplo DC-648 Slitter/Cutter/Creaser
