Request a QuoteDuplo 350i Digital Booklet System
Model: 350i Digital Booklet System

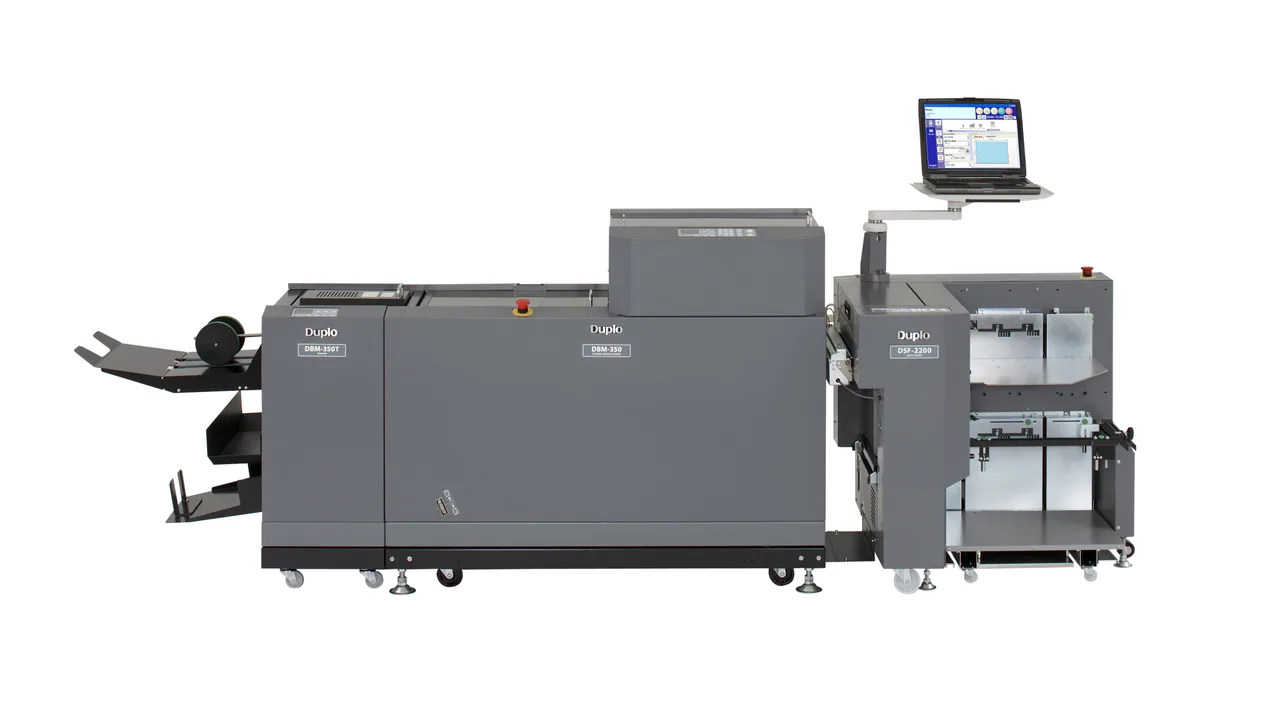

The Duplo 350i Digital Booklet System feeds pre-collated digital press output through the DSF-2200 dual-bin suction feeder into the DBM-350 bookletmaker and DBM-350T face trimmer, delivering stitched, folded, and trimmed booklets at up to 3,000 sets per hour. Ultrasonic double-feed detection and optional 1D/2D barcode reading keep variable-count jobs honest, and the optional DSS-350 square spine module gives booklets a lay-flat, perfect-bound look.
Request a Quote
Specifications
| Speed | Up to 3,000 sets per hour (10 sheets or less, A5) |
|---|---|
| System Components | DSF-2200 Sheet Feeder + DBM-350 Bookletmaker + DBM-350T Trimmer |
| Feeder Capacity | 2 bins — Tray A 2.56" (65 mm), Tray B 7.87" (200 mm); feed modes A, B, A+B, Alternate |
| Saddle Stitch Paper Size | 5.82" x 8.27" to 12.60" x 18.11" (148 x 210 mm to 320 x 460 mm) |
| Sheets per Booklet | Up to 20 sheets of 81.4 gsm (2.1 mm spine or less) |
| Paper Weight (Feeder) | Fine paper 52.3-300 gsm; art/coated and laminated 79-300 gsm |
| Stitch Heads | 2 DeLuxe heavy-duty heads (upgradeable to Hohner 43/6S); saddle, corner, and side stitching |
| Trimming | Fore-edge trim 1-20 mm, capacity 4 mm |
| Set Integrity | Ultrasonic double-feed detection and end mark reader standard; optional 1D/2D barcode kits |
| Job Control | PC Controller software with automated stitch, fold, and trim setup |
| Power Requirements | Feeder: 100-240V 50/60Hz, 260W · DBM-350: 100-240V 50/60Hz (trimmer powered by DBM-350) |
| Dimensions | DSF-2200: 37" x 30" x 34" · DBM-350: 72" x 26" x 41" · DBM-350T: 85" x 26" x 41" |
| Net Weight | DSF-2200: 254 lb · DBM-350: 463 lb · DBM-350T: 108 lb |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Feeder and bookletmaker run on standard 100-240V outlets. Plan roughly 15 linear feet for feeder, bookletmaker, and trimmer in line, plus the square spine module if added.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
