Request a QuoteDuplo 150 Digital Booklet System
Model: 150 Digital Booklet System

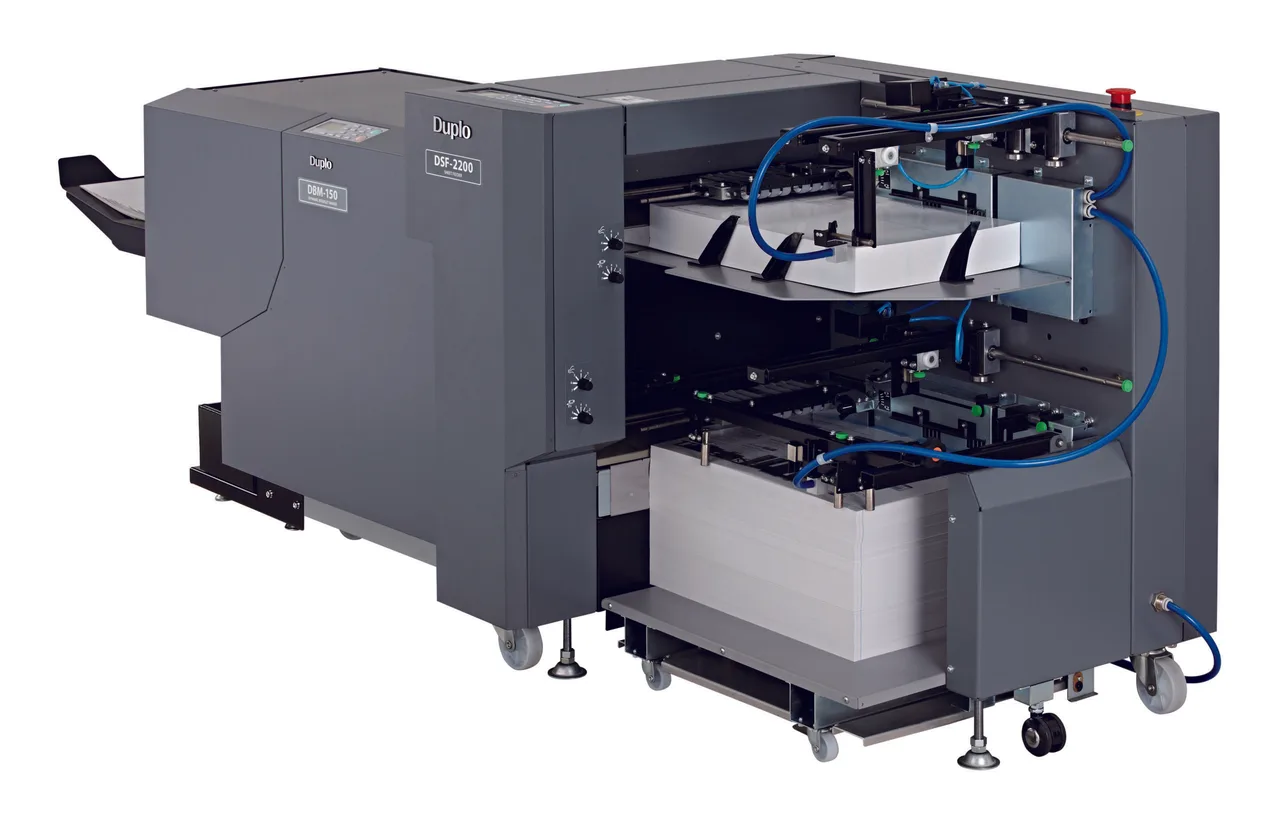

The Duplo 150 Digital Booklet System pairs the DSF-2200 dual-bin suction sheet feeder with the DBM-150S bookletmaker (plus optional DBM-150T face trimmer) to turn pre-collated digital press output into saddle-stitched booklets at up to 1,720 sets per hour. Ultrasonic double-feed detection, a built-in anti-static device, and optional 1D/2D barcode kits keep variable-count jobs feeding with full set integrity — Duplo's most affordable path from digital print to finished booklet.
Request a Quote
Specifications
| Speed | Up to 1,720 sets per hour (2 sheets, fine paper, 81.4 gsm); feeder rated to 200 sheets/min (A4 SEF) |
|---|---|
| System Components | DSF-2200 Sheet Feeder + DBM-150S Bookletmaker (+ optional DBM-150T Trimmer) |
| Feeder Capacity | 2 bins — Tray A 2.56" (65 mm), Tray B 7.87" (200 mm); feed modes A, B, A+B, Alternate |
| Feeder Paper Size | 4.13"-14.02" wide x 7.87"-20" long (to 24" long at widths under 9.05") |
| Paper Weight | Fine paper 52.3-300 gsm; art/coated and laminated 79-300 gsm |
| Saddle Stitch & Fold Size | 4.72" x 8.27" up to 12.6" x 18.11" (120 x 210 mm to 320 x 460 mm) |
| Sheets per Booklet | 2-25 sheets fine paper (64-127.9 gsm); 2-20 sheets art coated; covers to 300 gsm |
| Staple Heads | 2 Isaberg Rapid heads, 5,000 staples per cartridge; saddle, corner, and side stapling |
| Trimming (DBM-150T) | Fore-edge trim 1-20 mm; trimmed booklets 3.35" x 4.27" to 8.27" x 12.6" |
| Set Integrity | Ultrasonic double-feed detection standard; optional 1D/2D barcode kits and end mark (OMR) |
| Job Memory | 16 jobs on the bookletmaker; unlimited via optional PC Controller (60-second changeovers) |
| Power Requirements | Feeder: 100-240V 50/60Hz, 260W · Bookletmaker: 120-240V 50/60Hz (trimmer powered by DBM-150S) |
| Dimensions (LxWxH) | DSF-2200: 37" x 30" x 34" · DBM-150S: 40" x 22" x 28" · DBM-150T: 56" x 22" x 28" |
| Net Weight | DSF-2200: 254 lb · DBM-150S: 188 lb |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Feeder and bookletmaker run on standard 100-240V outlets. Plan roughly 11 linear feet for the feeder, bookletmaker, and trimmer in line.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
