Request a QuoteCutWorx Apex Pro Sheet-Fed Digital Flatbed Cutter
The CutWorx Apex Pro SF combines the Apex Pro digital flatbed cutter with an automated sheet feeder and conveyor system for high volume sheet-fed finishing. It runs two independently controlled tool head modules with a CCD camera registration system, cutting, creasing, and oscillating through rigid boards like Falconboard, Gatorboard, Ultraboard, and corrugated. It is built for POP and POS printed sheet production where long runs need to keep moving without an operator loading every sheet.
Request a Quote
Specifications
| Cutting Area Options | 43" x 51" (Apex Pro 1312), 63" x 59" (Apex Pro 1516), 63" x 98" (Apex Pro 2516) |
|---|---|
| Media Handling | Automated sheet feeder system with conveyor; scissor lift table holds loads up to 1,000 lbs |
| Tool Positions | 2 tool positions available with all tool combinations |
| Head Modules | Two Universal Head Modules, controlled independently |
| Registration | CCD Camera System |
| Tool Calibration | Optical auto tool calibration with automatic knife initialization modules |
| Included Tools (Sheet-Fed Package) | Universal Cutting Tool, Crease Wheel Tool, Electric Oscillating Tool |
| Optional Tools | 450W air-cooled spindle/router (60,000 rpm), Kiss Cut, Perforating, V-Cut, Variable V-Cut, Driven Rotary, Pneumatic Rotary, Pneumatic Oscillating |
| Table Construction | Aircraft aluminum table |
| Hold-Down | Variable Vacuum Zone control |
| Compatible Materials | Falconboard, Xanita, Reboard, EagleCell, Gatorboard, Ultraboard, corrugated, foamcores |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Large-format floor system; footprint depends on the base machine size (1312, 1516, or 2516). We plan the layout, power, and compressed air during the site survey.
Delivery & lead time
Made to order; freight and lead time confirmed at quote.
Related Machines
Formax
Formax Cut-True DDC50 Digital Die Cutter
The Formax Cut-True DDC50 is an automatic high-speed digital die cutter that die-cuts, kiss-cuts, creases, and perforates cut sheets with no costly dies. QR code recognition lets it process mixed jobs in a single stack of up to 1,000 sheets without operator intervention. It includes Cut-True Pro Production Studio software, a high-capacity vacuum belt feeder, and a freestanding PC workstation.
View Details
CutWorx
CutWorx CWT 1730 Premium Flatbed Applicator Table
The CWT 1730 Premium is a Swedish-built flatbed cut work table that gives sign and print shops a large glass work surface for application, trimming, and finishing. Its 8 foot 8 inch by 5 foot 5 inch working area handles full rolls and rigid substrates up to 2.7 inches thick, with roll holders and a glide beam keeping material flat and square. Casters, side pockets, and a silent compressor with shelf round out a station built for all-day production work.
View Details
Trotec

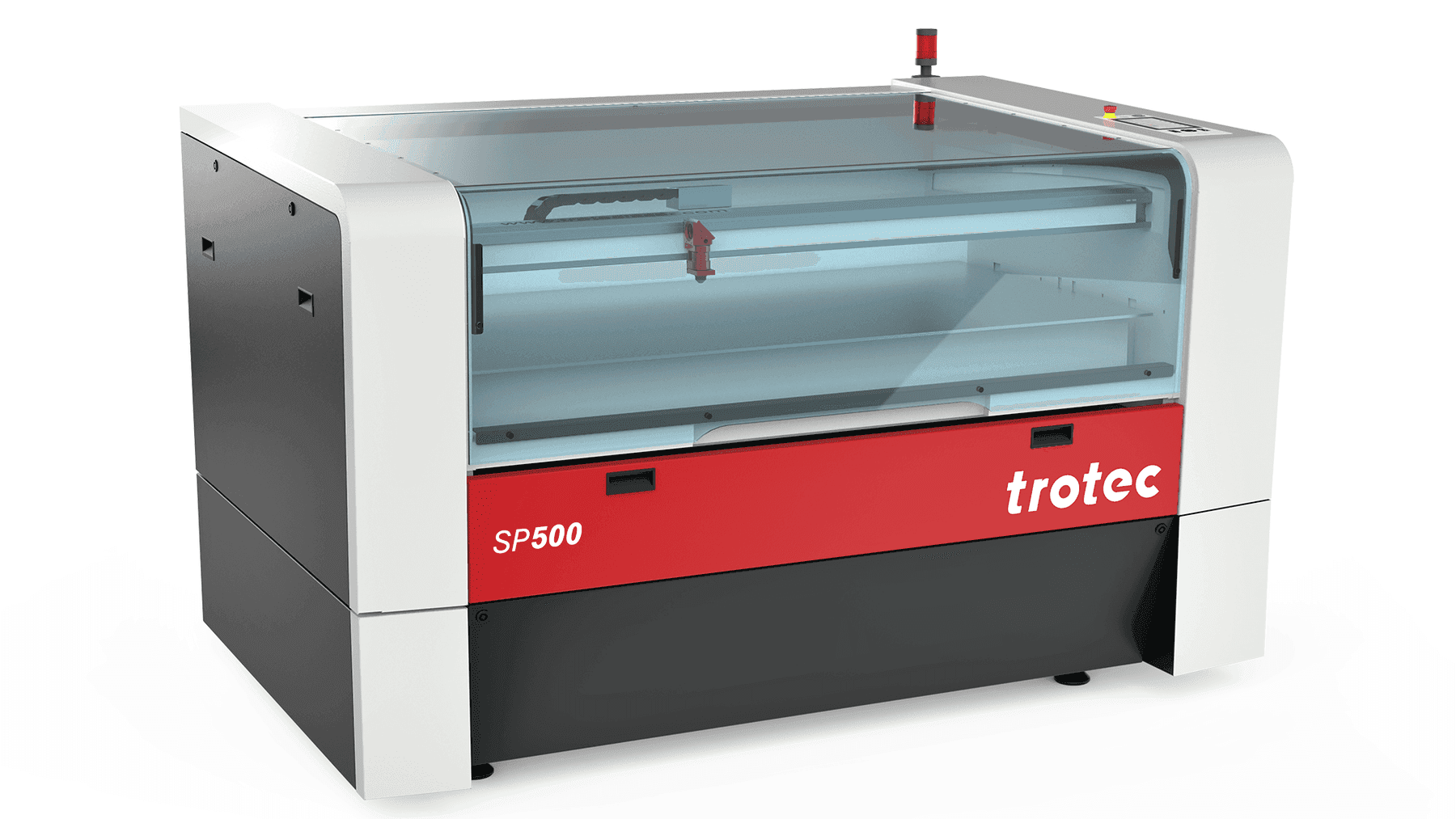

Trotec SP Series Large-Format Laser Cutters
