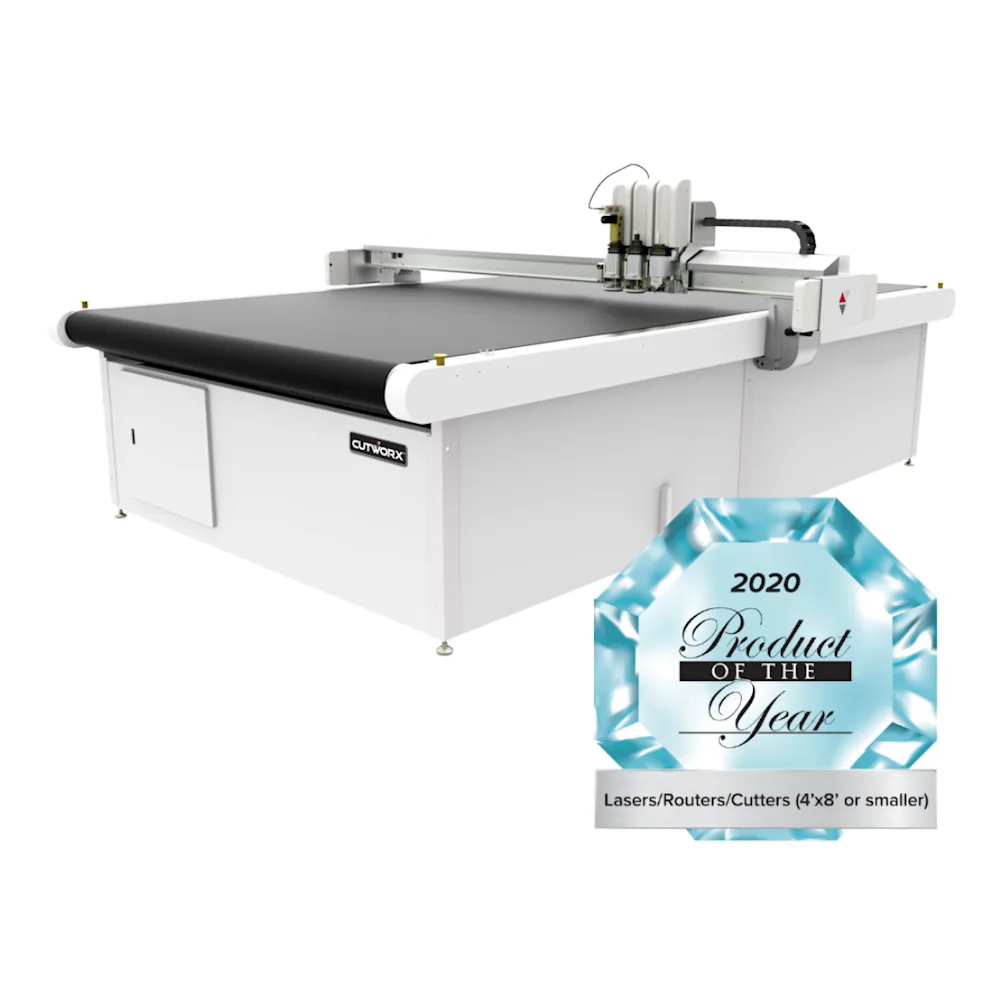

Request a QuoteCutWorx Apex 1713 Digital Flatbed Cutter
Model: APEX-1713
The CutWorx Apex 1713 is a digital flatbed cutting system with a 51x66" cutting area for sign, POP/POS display, packaging, and textile finishing. Two interchangeable, independently controlled tool head positions handle knife cutting, creasing, and routing with a 350W spindle, while CCD camera registration keeps contour cuts locked to the print. An aerospace-aluminum table with variable vacuum zones holds rigid boards and flexible media flat, and conveyor table versions are available for roll and long-piece work.
Request a Quote
Specifications
| Cutting Area | 51x66" |
|---|---|
| Tool Positions | 2 interchangeable head positions, independently controlled |
| Registration | High-definition CCD camera for contour cutting on printed media |
| Router | 350W spindle/router |
| Max Cutting Speed | 1.5 m/s (per series overview) |
| Hold-Down | Variable vacuum zones, interface-controlled |
| Table | Aerospace aluminum |
| Tool Calibration | Optical automatic tool height calibration |
| Conveyor Option | Conveyor table versions available for roll/long-piece production |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
We confirm power, space, and access requirements during a pre-install site survey, so there are no surprises on delivery day.
Delivery & lead time
Made to order; freight and lead time confirmed at quote.
Related Machines
CutWorx
CutWorx Apex 2513 Digital Flatbed Cutter
The CutWorx Apex 2513 is a digital flatbed cutting system with a 51x98" cutting area for sign, POP/POS display, packaging, and textile finishing. Two interchangeable, independently controlled tool head positions handle knife cutting, creasing, and routing with a 350W spindle, while CCD camera registration keeps contour cuts locked to the print. An aerospace-aluminum table with variable vacuum zones holds rigid boards and flexible media flat, and conveyor table versions are available for roll and long-piece work.
View Details
CutWorx
CutWorx Apex 2517 Digital Flatbed Cutter
The CutWorx Apex 2517 is a digital flatbed cutting system with a 66x98" cutting area for sign, POP/POS display, packaging, and textile finishing. Two interchangeable, independently controlled tool head positions handle knife cutting, creasing, and routing with a 350W spindle, while CCD camera registration keeps contour cuts locked to the print. An aerospace-aluminum table with variable vacuum zones holds rigid boards and flexible media flat, and conveyor table versions are available for roll and long-piece work.
View Details
CutWorx

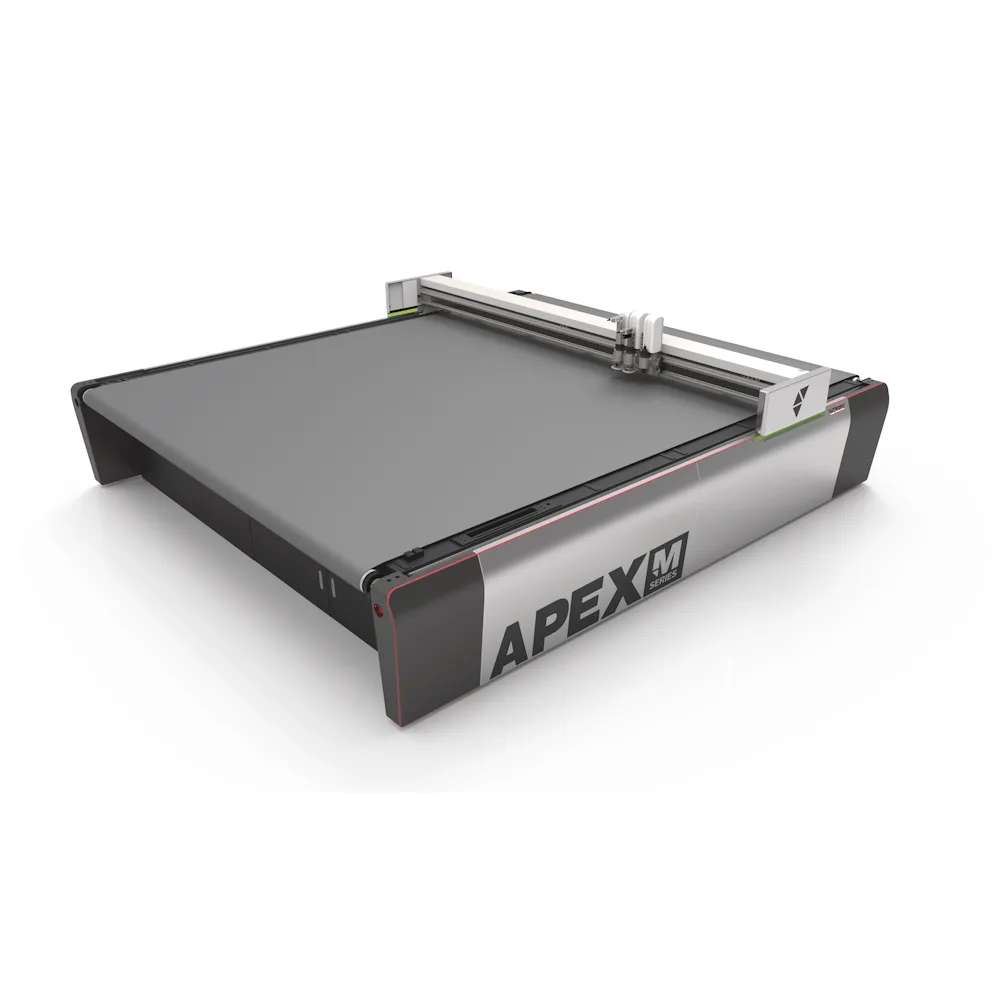

CutWorx Apex M 2516 Magnetic-Drive Flatbed Cutter
The Apex M 2516 replaces belt and rack-and-pinion drives with zero-contact magnetic linear motors, reaching 2,000 mm/s traverse speeds with 2g acceleration and 0.05 mm cutting precision on a 98x63" bed. Three interchangeable tool positions plus a 1.8kW router with an integrated 7-position bit changer let it cut, crease, engrave, and route acrylic, corrugated, foam, textiles, and acoustic panel stock. The carbon structural steel frame and reduced mechanical wear make it a fit for high-volume sign, packaging, and technical-textile production.
View Details
CutWorx

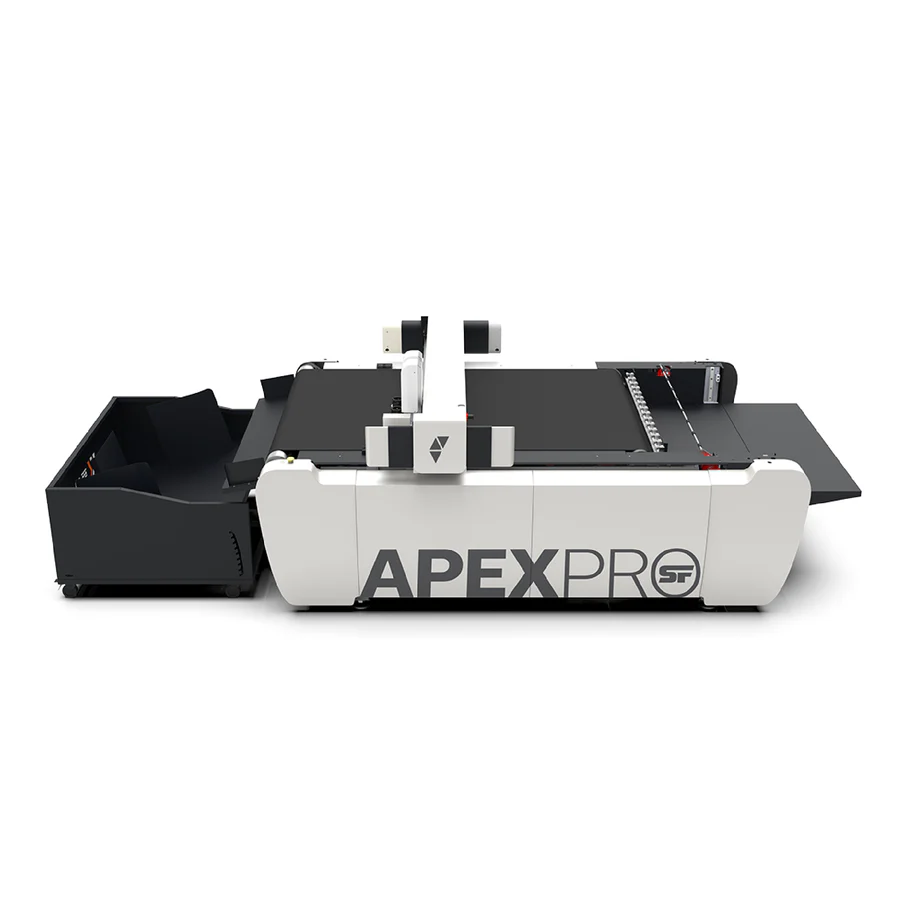

CutWorx Apex Pro Sheet-Fed Digital Flatbed Cutter
The CutWorx Apex Pro SF combines the Apex Pro digital flatbed cutter with an automated sheet feeder and conveyor system for high volume sheet-fed finishing. It runs two independently controlled tool head modules with a CCD camera registration system, cutting, creasing, and oscillating through rigid boards like Falconboard, Gatorboard, Ultraboard, and corrugated. It is built for POP and POS printed sheet production where long runs need to keep moving without an operator loading every sheet.
View DetailsSupplies for this machine
Blades, films, laser materials, and wear parts, matched to your model by the technicians who service it.
