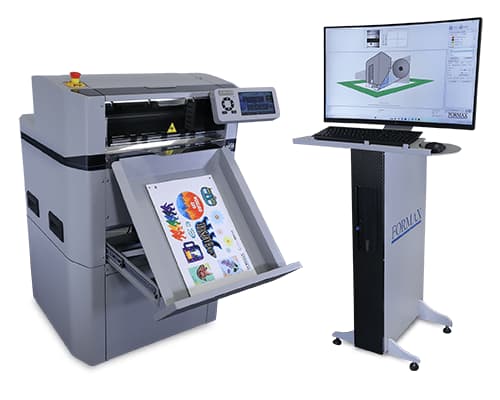

Request a QuoteFormax Cut-True DDC50 Digital Die Cutter
Model: DDC50
The Formax Cut-True DDC50 is an automatic high-speed digital die cutter that die-cuts, kiss-cuts, creases, and perforates cut sheets with no costly dies. QR code recognition lets it process mixed jobs in a single stack of up to 1,000 sheets without operator intervention. It includes Cut-True Pro Production Studio software, a high-capacity vacuum belt feeder, and a freestanding PC workstation.
Request a Quote
Specifications
| Capabilities | Die-cut (with retention tags), kiss-cut, crease, perforate |
|---|---|
| Media Size | Min 7" x 13.4", max 13.4" x 28" |
| Maximum Cutting Area | 13" x 27.5" |
| Media Thickness | 0.0055" to 0.013" (140 to 350 microns) |
| Cut/Crease Force | 750 gf max (350 micron) |
| Maximum Speed | Up to 47"/second (1,060 mm/second) |
| Infeed Tray Capacity | Up to 3.3" high, up to 1,000 sheets 20# bond letter |
| Feeding System | Vacuum belt feeder |
| Registration | High-speed CCD camera with QR code recognition |
| Control Panel | 7" touchscreen |
| Dimensions | Cutter: 33" W x 34" D x 49" H; workstation: 29" W x 21" D x 56" H |
| Weight | Cutter with stand: 300 lbs; workstation with stand: 71 lbs |
| Power Supply | 100-240V, 50/60Hz |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on standard 100-240V power. Compact footprint with a separate PC workstation.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
CutWorx

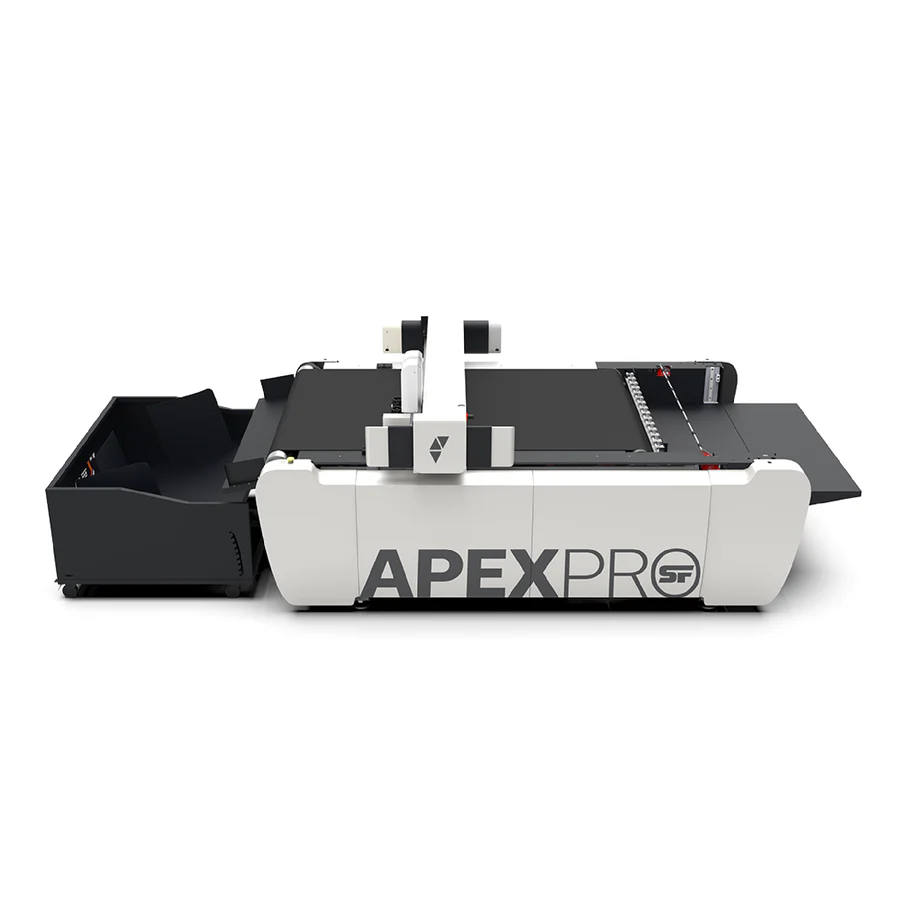

CutWorx Apex Pro Sheet-Fed Digital Flatbed Cutter
The CutWorx Apex Pro SF combines the Apex Pro digital flatbed cutter with an automated sheet feeder and conveyor system for high volume sheet-fed finishing. It runs two independently controlled tool head modules with a CCD camera registration system, cutting, creasing, and oscillating through rigid boards like Falconboard, Gatorboard, Ultraboard, and corrugated. It is built for POP and POS printed sheet production where long runs need to keep moving without an operator loading every sheet.
View Details
Duplo

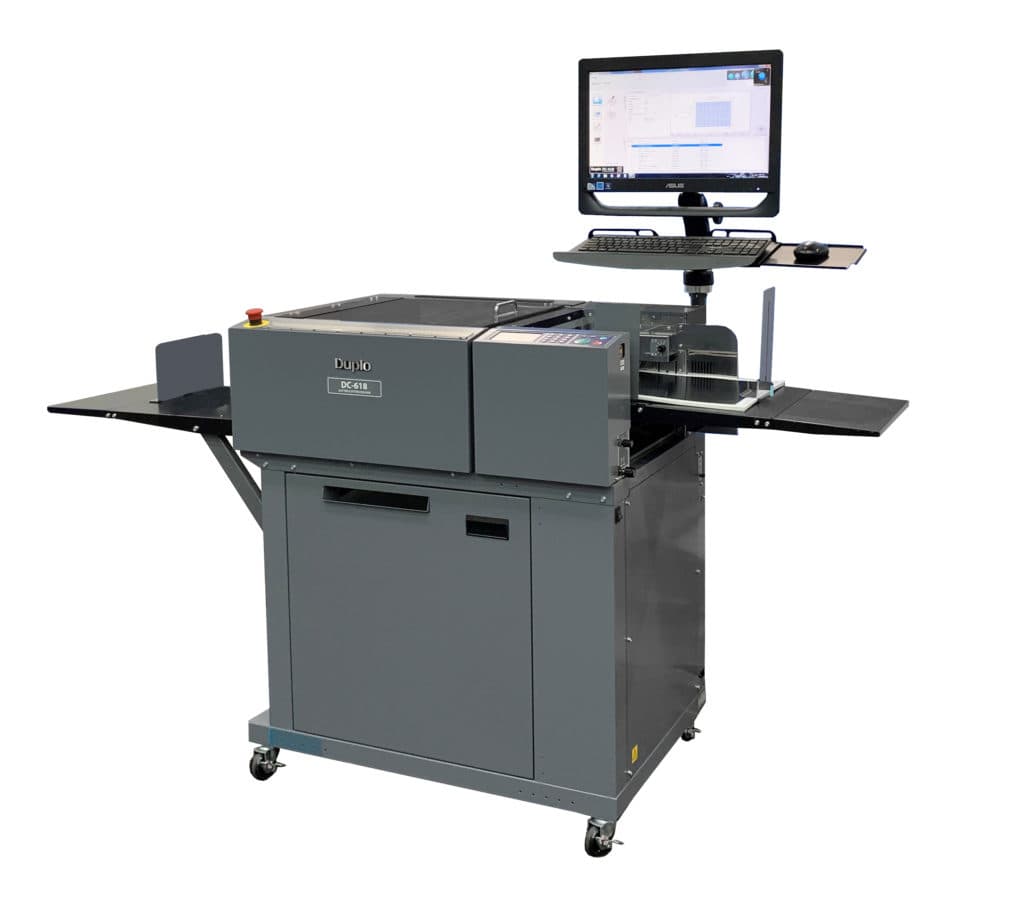

Duplo DC-618 Slitter/Cutter/Creaser
The Duplo DC-618 is a compact, fully automated finisher that slits, cuts, creases, and perforates digitally printed sheets in a single pass at up to 23 sheets per minute. Its built-in CCD scanner reads barcodes and registration marks to recall jobs and correct for image shift on the fly, making it a proven workhorse for business cards, greeting cards, and short-run digital work up to 400 gsm.
View Details
Duplo
Duplo DC-648 Slitter/Cutter/Creaser
The Duplo DC-648 is a mid-volume slitter, cutter, and creaser that finishes digitally printed sheets in one pass at up to 40 sheets per minute, handling oversized stock up to 14.56" x 39.37" and 400 gsm. Advanced camera sensor technology reads barcodes and registration marks for automated job changeovers and sheet-by-sheet correction, and Fiery Impose integration cuts setup time. It is built for shops producing business cards, postcards, packaging, and banner-length work at higher volumes than the DC-618.
View Details
CutWorx

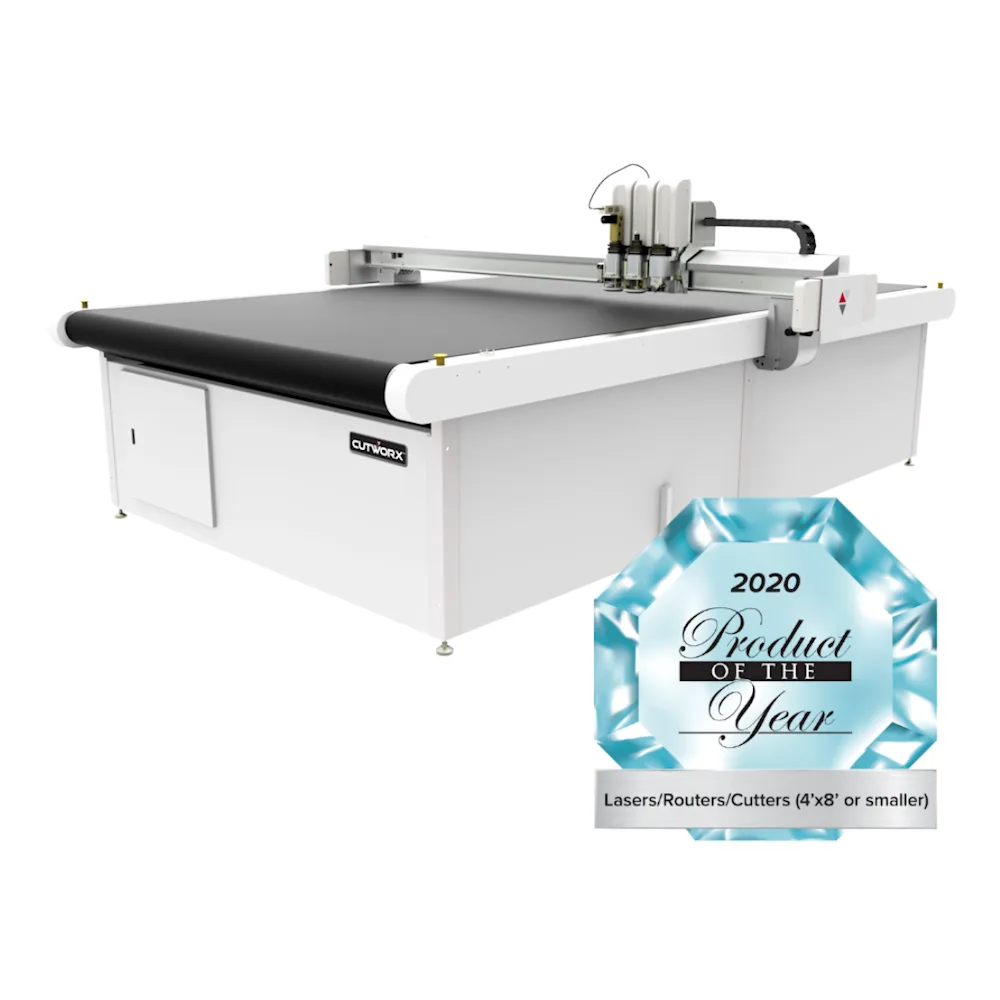

CutWorx Apex 1713 Digital Flatbed Cutter
