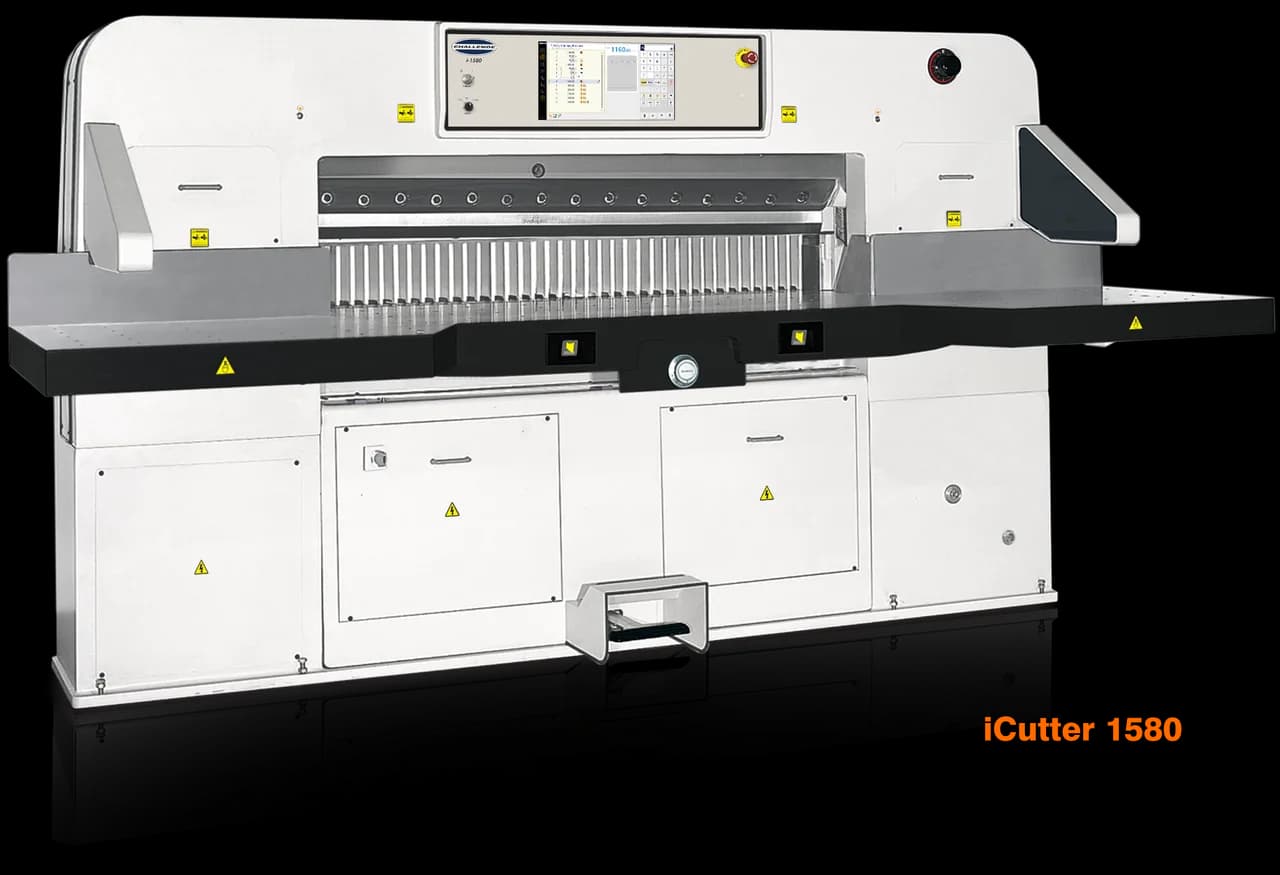

Request a QuoteChallenge iCutter Series Heavy-Duty Paper Cutters
Model: ICUTTER
The Challenge iCutter series covers large-format guillotine cutting from 26.7" up to a full 62" width, with mechanical-drive power, backgauge accuracy of +/- 0.002", and clamp pressure adjustable up to 9,921 lbs on the larger frames. A 15" color touchscreen handles job storage, diagnostics, and maintenance reminders, an optional iCUTTER interface adds CIP/JDF workflow integration (HP SmartStream partner), and an infrared safety light curtain protects the operator. This is the machine for commercial binderies cutting big sheets all day.
Request a Quote
Specifications
| Models / max cutting width | i680 26.7", i780 30.7", i860 33.9", i1160 45.7", i1370 53.9", i1580 62" |
|---|---|
| Clamp opening | 5.5"-6.5" depending on model |
| Clamp pressure | 440-9,921 lbs adjustable (440-6,613 lbs on 680/780) |
| Cutting speed | 45-48 cuts per minute |
| Backgauge | AC servomotor with ball screw and linear guide, +/- 0.002" accuracy, up to 7.9 in/sec |
| Control | 15" color touchscreen with job storage/retrieval, diagnostics, maintenance reminders; optional CIP/JDF (HP SmartStream) integration |
| Knife drive | Double end pull (1160/1370/1580), single end pull (860 and smaller), electro-magnetic clutch and brake |
| Safety | Infrared light curtain, two-hand non-repeat cut control, shear bolt overload protection, closed rear table; CE listed |
| Net weight | 4,189 lbs (i680) to 13,118 lbs (i1580) |
| Power | 208/230 V 3-phase; 5 HP motor (7.5 HP on i1580, 27.3 A, 45 A service) |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires 208/230 V 3-phase power (20-27.3 A depending on model). These are floor machines from roughly 4,200 to 13,100 lbs — floor loading and rigging access must be checked before installation.
Delivery & lead time
Ships freight; professional rigging required for placement.
Related Machines
Challenge

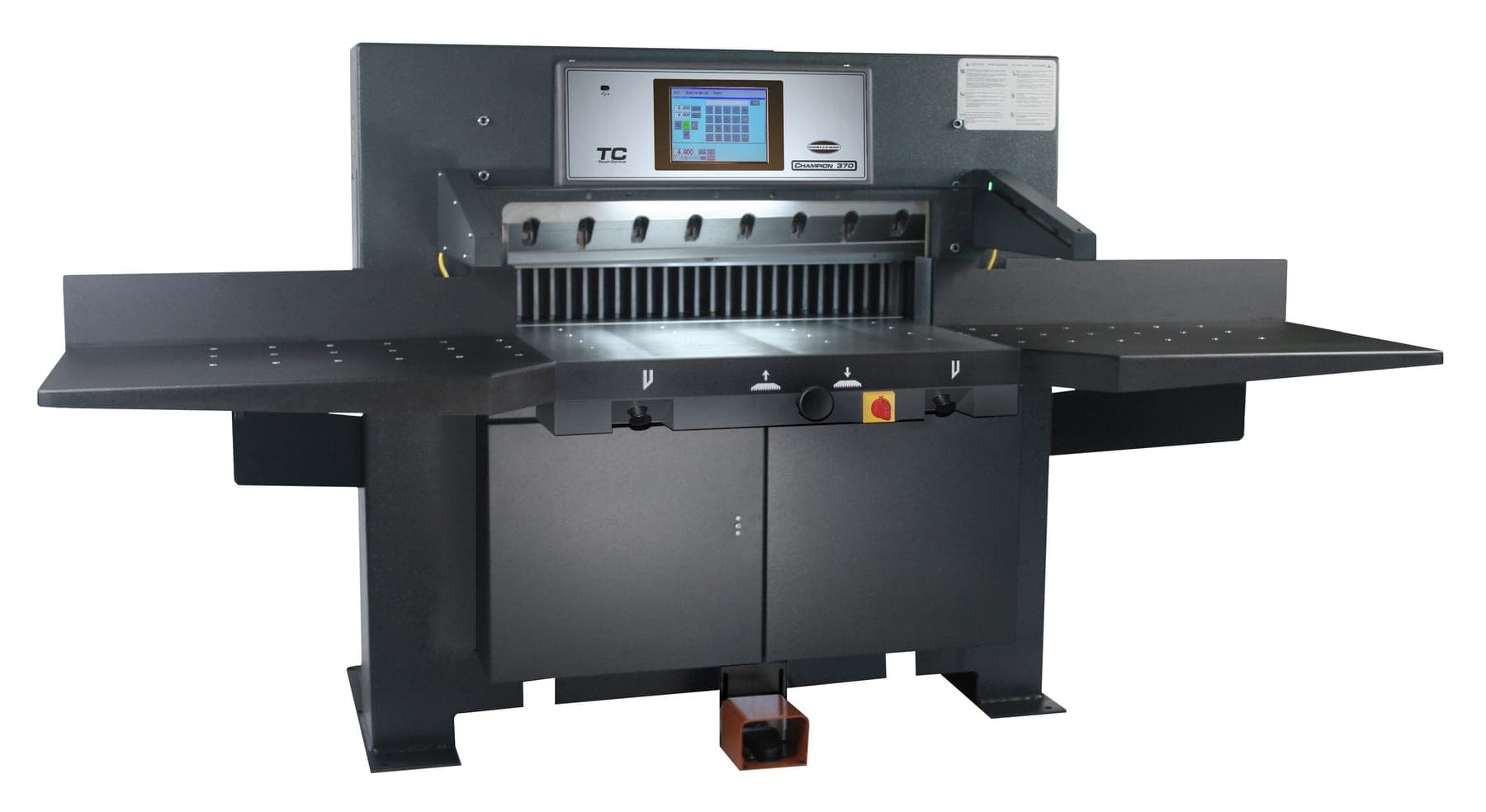

Challenge Champion 370 TC Paper Cutter
The Challenge Champion 370 TC brings 37 inch hydraulic cutting capacity to demanding production floors, with up to 7,000 lbs of clamping force and accuracy within plus or minus 0.002 inch. The 10.5 inch color touch screen TC controller offers graphical program layout, auto sheet division, and .csv offline programming. Built in the USA with a solid stainless steel table, light beam curtain safety, and UL, cUL, and CE certification.
View Details
Challenge

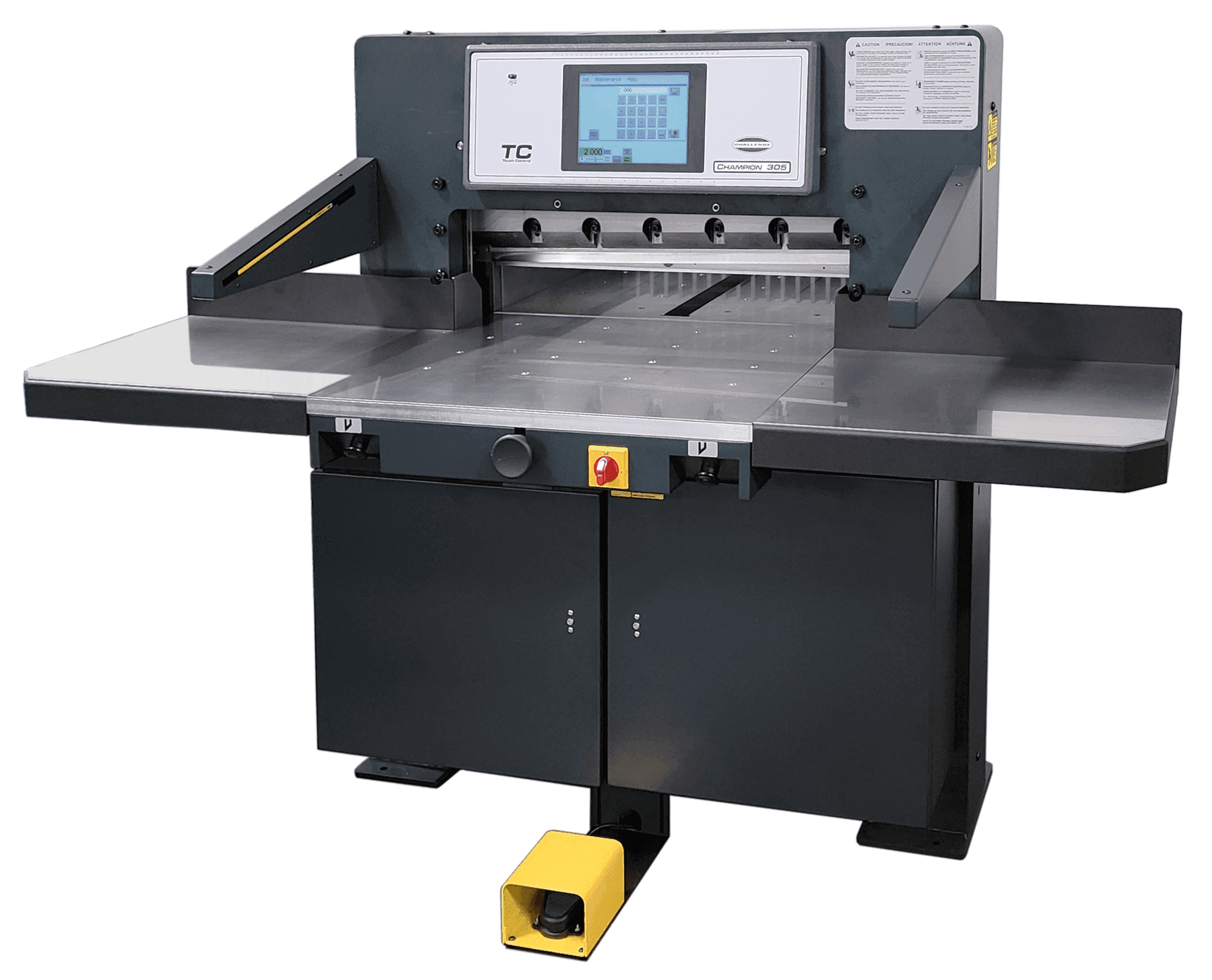

Challenge Champion 305 TC Paper Cutter
The Challenge Champion 305 TC is a USA made 30.5 inch programmable hydraulic paper cutter built for one to two shift production environments. It pairs powerful hydraulic clamping and cutting, accurate to within plus or minus 0.002 inch, with a 10.5 inch color touch screen TC controller and a rust free solid 1 inch thick stainless steel table. Light beam curtain safety, two hand timed cut activation, and UL, cUL, and CE certification make it one of the safest cutters in its class.
View Details
Challenge

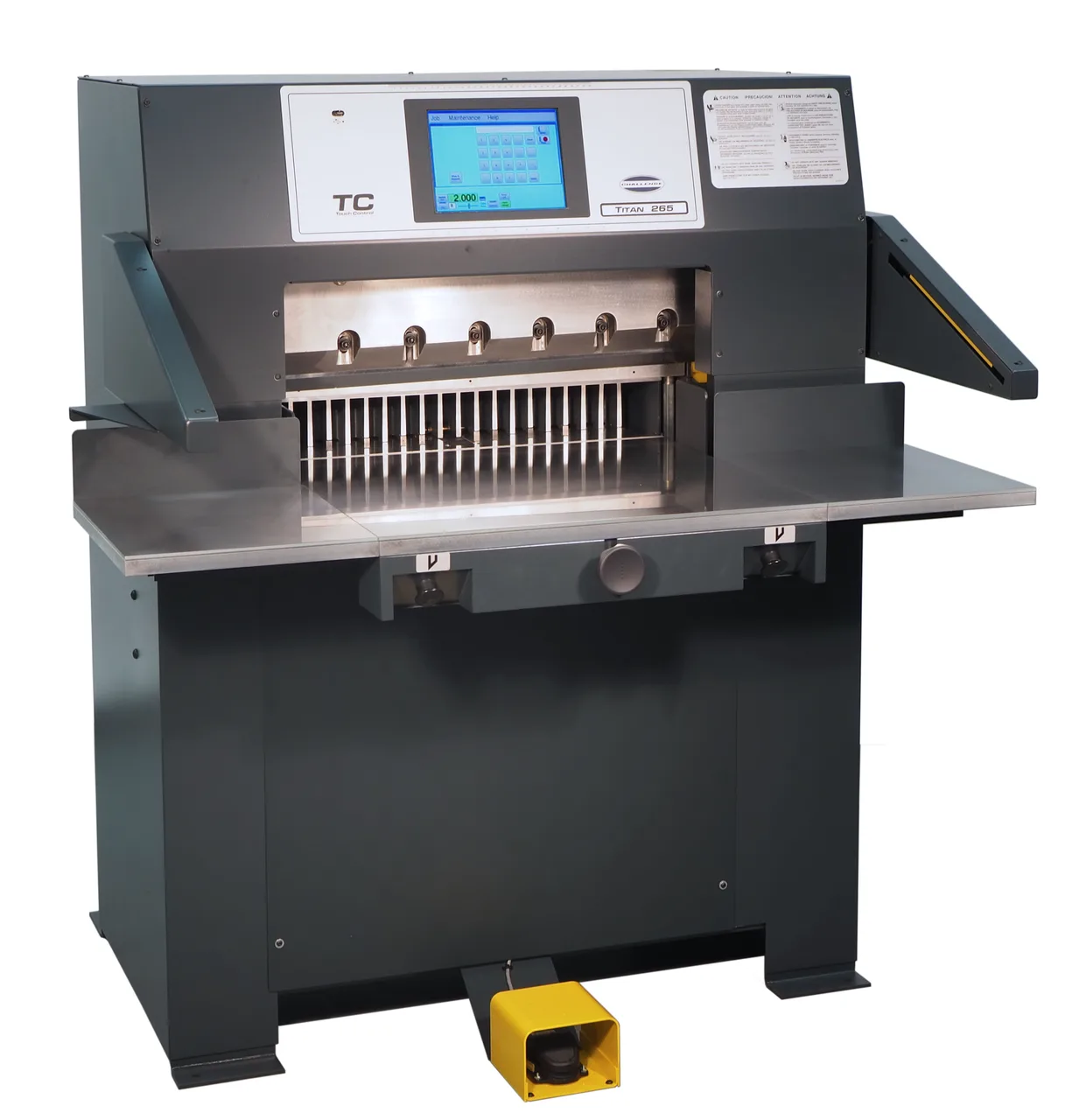

Challenge Titan 265 TC Programmable Paper Cutter
The Challenge Titan 265 TC is a 26-1/2" hydraulic programmable cutter built on cast iron and steel, delivering up to 26 cuts per minute with up to 4,000 lbs of electronically controlled clamp force. The 10.5" color touch-screen TC controller stores unlimited programs, reads .csv job files from a USB drive, and automates sheet-division and label work — a true production cutter for digital and offset shops stepping up from a 20" class machine.
View Details
Challenge

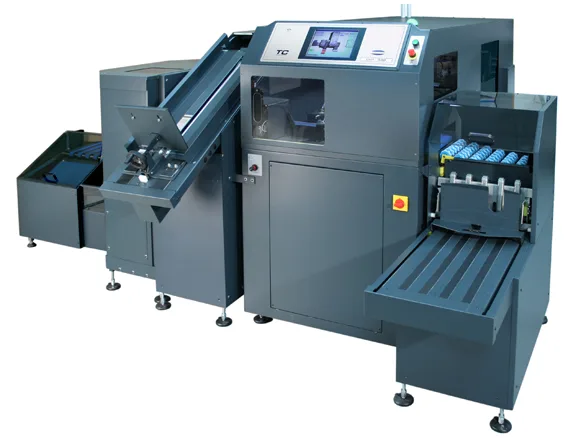

Challenge CMT 330TC Three-Knife Book Trimmer
