Request a QuoteMade in the USAChallenge Champion 305 TC Paper Cutter
Model: 305TC
The Challenge Champion 305 TC is a USA made 30.5 inch programmable hydraulic paper cutter built for one to two shift production environments. It pairs powerful hydraulic clamping and cutting, accurate to within plus or minus 0.002 inch, with a 10.5 inch color touch screen TC controller and a rust free solid 1 inch thick stainless steel table. Light beam curtain safety, two hand timed cut activation, and UL, cUL, and CE certification make it one of the safest cutters in its class.
Request a Quote
Specifications
| Maximum cutting width | 30-1/2 in / 77.5 cm |
|---|---|
| Maximum cut depth | 30-1/2 in / 77.5 cm |
| Clamp opening | 4 in / 102 mm (3-3/4 in / 95 mm with false clamp plate) |
| Clamping method | Hydraulic, electronically adjustable pressure |
| Clamping force | 1,414 lbs minimum to 5,000 lbs maximum |
| Cutting accuracy | Within +/- 0.002 in (0.05 mm) |
| Control system | 10.5 in color touch screen TC controller with USB port and .csv file compatibility |
| Table space in front of knife | 25 in / 63.5 cm |
| Side tables | 18 in x 24 in each side, stainless steel (standard) |
| Overall dimensions | 71 in long x 78-1/2 in wide with side tables (51 in without) x 58-1/2 in high |
| Net weight | 2,190 lbs / 995 kg (shipping weight 2,530 lbs) |
| Electrical | 5 HP, 3-phase, 60 Hz, 208/230 V, 25 A, 40 A service; single phase supply kit available |
| Certifications | UL, cUL, CE; manufactured in the USA; 2-year warranty |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires 208/230 V 3-phase power (40 A service); a single phase supply kit is available from Challenge. Net weight 2,190 lbs, so ground-floor placement or a rated freight path is needed.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Challenge

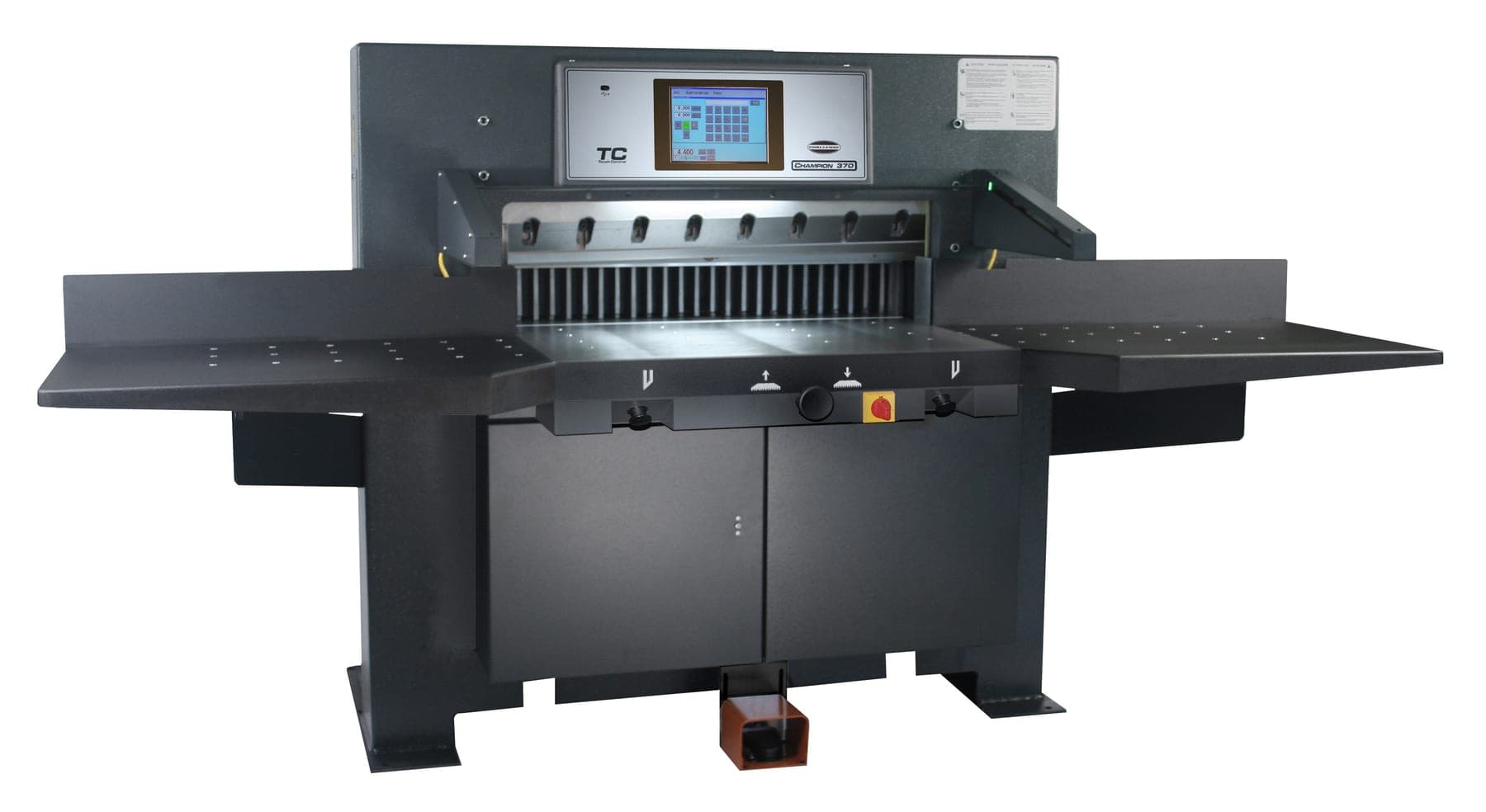

Challenge Champion 370 TC Paper Cutter
The Challenge Champion 370 TC brings 37 inch hydraulic cutting capacity to demanding production floors, with up to 7,000 lbs of clamping force and accuracy within plus or minus 0.002 inch. The 10.5 inch color touch screen TC controller offers graphical program layout, auto sheet division, and .csv offline programming. Built in the USA with a solid stainless steel table, light beam curtain safety, and UL, cUL, and CE certification.
View Details
Challenge
Challenge Titan 200Pro Paper Cutter
The Challenge Titan 200Pro is the newest generation of the 30 year proven Titan 20 inch hydraulic paper cutter line, made in the USA. Its 9 inch pivoting color touch screen and Pro software make programming simple, automatically saving your cut history so a job program is one save button away. Mounted on lockable casters, it rolls wherever your shop needs it and runs on standard 220 volt single phase power.
View Details
Perfecta

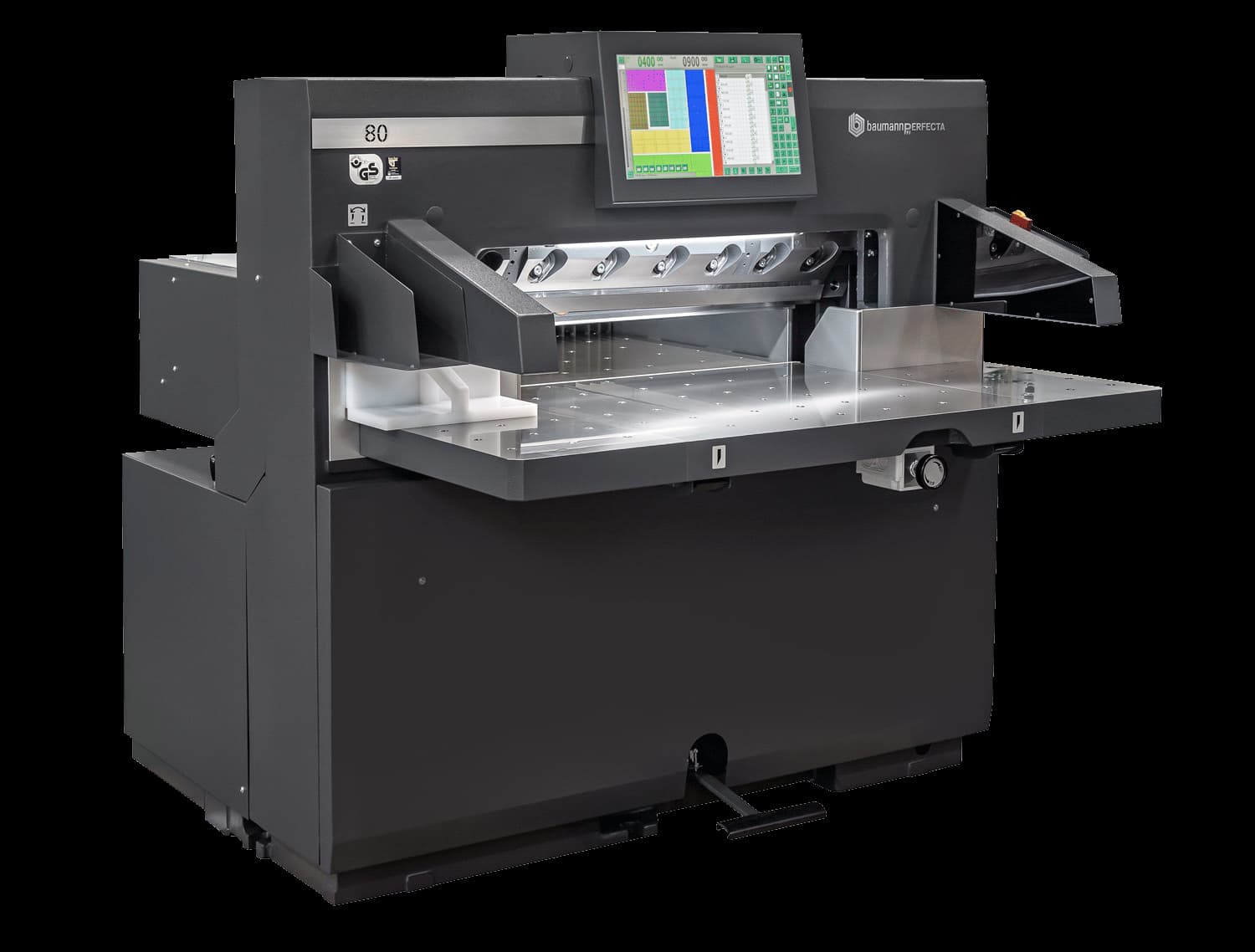

Perfecta BP 80 High-Speed Cutter (31.5")
The Perfecta BP 80 is a German made 31.5 inch high-speed guillotine cutter built for small format commercial and digital print work. It pairs a servo-controlled backgauge with a gear driven knife rated at 50 cuts per minute, and it is programmed through Perfecta's TS computer with an 18.5 inch color touch screen.
View Details
Challenge

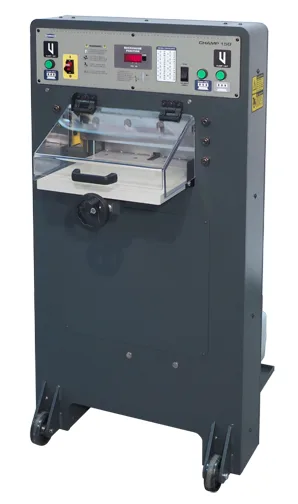

Challenge CHAMP 150 Hydraulic Paper Cutter
The Challenge CHAMP 150 is billed by the manufacturer as the strongest 15" paper cutter on the market: full hydraulic power drives both the clamp and the knife with up to 2,350 lbs of pressure, ideal for high volumes and thick stocks in small formats. Its narrow welded-steel frame rolls through a 29" doorway, and it plugs into a standard 120 V, 20 A outlet. Made in the USA.
View DetailsSupplies for this machine
Blades, films, laser materials, and wear parts, matched to your model by the technicians who service it.
