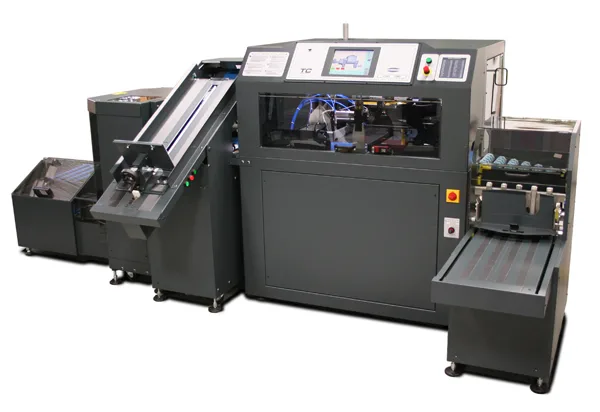

Request a QuoteChallenge CMT 130TC On-Demand Book Trimmer
Model: CMT-130TC
The Challenge CMT 130TC trims perfect-bound books up to 2" thick with a single knife and automated book rotation, replacing slow, error-prone guillotine trimming for on-demand book work. Automatic size detection and barcode reading make changeovers fully automated in about 10 seconds, and its industry-exclusive modular design grows with you — start as a hand-fed off-line trimmer, then add a 35.5" pile feeder, vertical stacker, or in-line conveyor to run directly behind your perfect binder. Made in Michigan, USA.
Request a Quote
Specifications
| Maximum starting book size | 13x9.5" (spine x width) |
|---|---|
| Finished book size | 5.82x4" min to 12x9" max |
| Book thickness | Up to 2" / 51 mm |
| Throughput | Up to 200 books/hour single-book, up to 500 books/hour in optional multi-book mode |
| Size changeover | Approx. 10 seconds, fully automated, no tools required |
| Control | 10.5" color touch screen with live book tracking, automatic size detection, barcode reader, 99 job memory |
| Configurations | Off-line, near-line (pile feeder + vertical stacker), or in-line with any perfect binder |
| Footprint (base machine) | 52" W x 57" L x 62" H, 1,500 lbs |
| Power | 208/230 V 3-phase, 20 A (50 Hz options available) |
| Compressed air | 5 CFM at 90 PSI, dry non-lubricated (ISO 8573.1 Class 2.4.2) |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires 208/230 V 3-phase power (20 A, 30 A service) and dry, non-lubricated compressed air at a constant 90 PSI, 5 CFM minimum (ISO 8573.1 Class 2.4.2 quality — warranty is voided without it).
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
