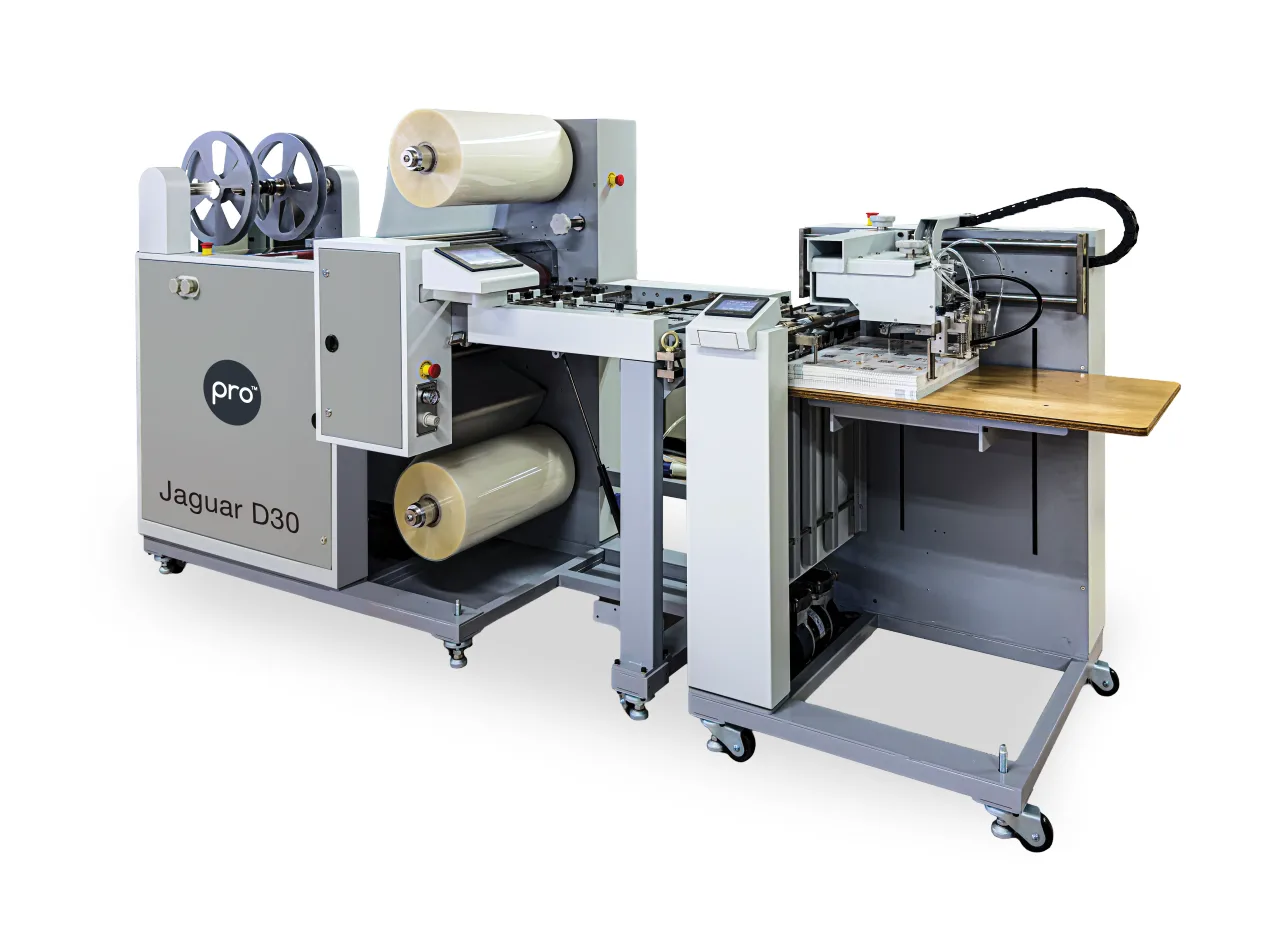

Request a QuoteSkandacor LAMpro Jaguar D30 High-Speed Duplex Laminator
Model: 1S11JD30
The LAMpro Jaguar D30 brings the Jaguar duplex platform to a 30 inch web, running encapsulation and double-sided lamination at up to 49 ft/min with a side-lay registration table for precise hand feeding. Air-shaft mandrels make film changeovers fast, preheat and heated nip rollers boost adhesion to digital prints, and side slitters with scrap take-up reels plus six banks of cooling fans condition the web before offline sheeting.
Request a Quote
Specifications
| Max Web Width | 30" |
|---|---|
| Min Sheet Size | 2x6" |
| Speed | Up to 49 ft/min (depending on application) |
| Stock Weight | 120 - 400 gsm |
| Max Film Roll Diameter | 14.9" (3" core, air shafts) |
| Heating | Infrared heater with preheat and heated nip rollers; 10 minute warm-up |
| Trimming | Side slitters included; auxiliary sheeter/trimmer sold separately |
| Electrical | 220-240 V, 40 A, 1 Ph |
| Dimensions / Weight | 83x44x62", 2,013 lb |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a 220-240 V, 40 A single-phase circuit.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Skandacor

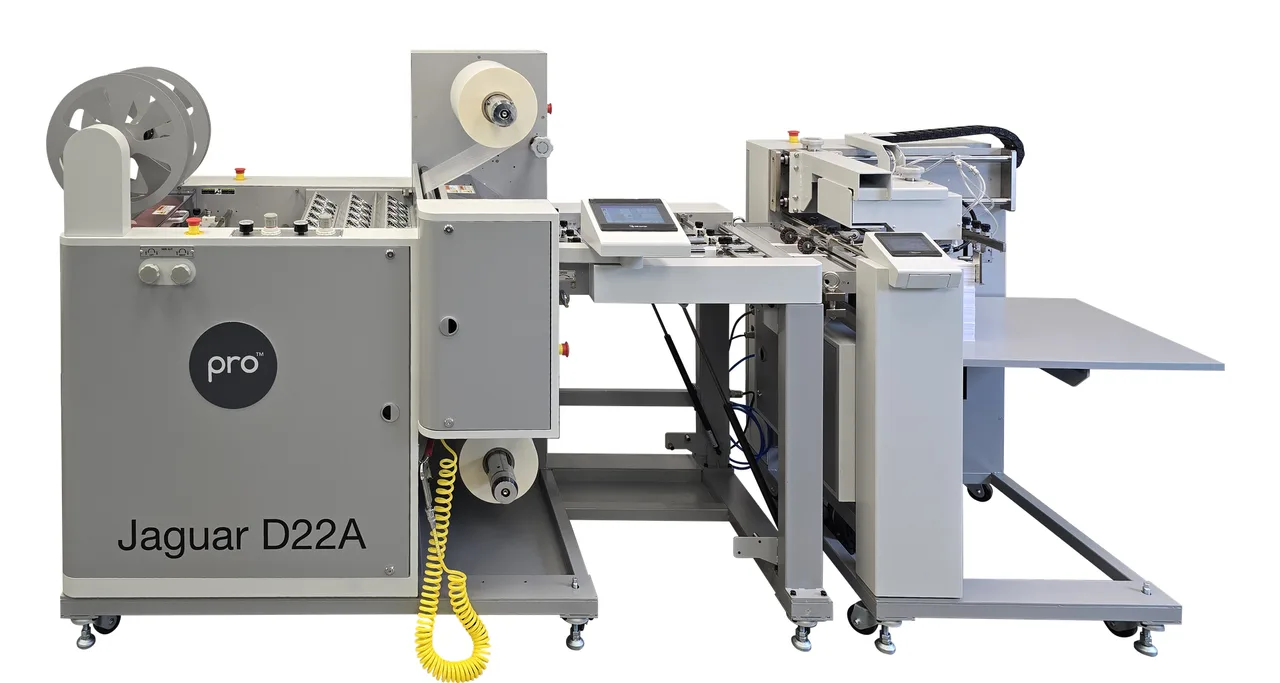

Skandacor LAMpro Jaguar D22A Duplex Laminator
The LAMpro Jaguar D22A is a heavy-duty duplex hot roll laminator that runs encapsulation and double-sided lamination at up to 49 ft/min on sheets to 20.4x29.5 inches. A detachable feeder with side-lay registration table switches between automatic and semi-automatic feeding, air-shaft mandrels speed film changeovers, and preheat plus heated nip rollers improve adhesion to digital prints. Side slitters with scrap take-up reels and six banks of cooling fans finish the web before offline sheeting.
View Details
Skandacor

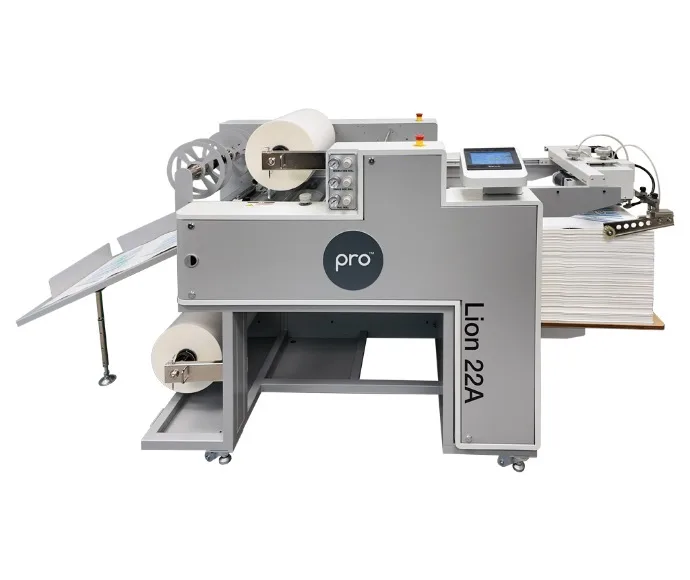

Skandacor LAMpro Lion 22A Simplex/Duplex Laminator & SLEEKpro
