Request a QuoteSkandacor LAMpro Lion 22A Simplex/Duplex Laminator & SLEEKpro
Model: 1G016100
The LAMpro Lion 22A does every type of lamination on one machine: duplex encapsulation, thin-gauge duplex, single-sided lamination, and SLEEKpro digital foiling - including foil over raised UV. A dual heated nip system improves adhesion to digital prints, the automated feeder holds a 13.7 inch pile, and a flying knife separates single-sided output at up to 49 ft/min (duplex runs to 40 ft/min). Card manufacturers and commercial shops get one 1,261 lb platform instead of three machines.
Request a Quote
Specifications
| Sheet Size | 8.5x11" min to 21.25x31.5" max |
|---|---|
| Speed | Single-sided up to 49 ft/min; duplex up to 40 ft/min |
| Film Thickness | 1.0 - 10.0 mil |
| Paper Weight | 120 - 400 gsm |
| Feeder | Automated, 13.7" pile height |
| Max Film Roll Diameter | 14.5" upper and lower (3" core, micro-adjustable shafts) |
| Lamination System | Dual heated nip for simplex, duplex/encapsulation, and SLEEKpro foiling |
| Pressure / Pneumatics | Pneumatic cylinder with on-board air compressor (or house air) |
| Electrical | 220-240 V, 30 A, 1 Ph |
| Dimensions / Weight | 87x40x53", 1,261 lb |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a 220-240 V, 30 A single-phase circuit.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Skandacor
Skandacor LAMpro Jaguar D22A Duplex Laminator
The LAMpro Jaguar D22A is a heavy-duty duplex hot roll laminator that runs encapsulation and double-sided lamination at up to 49 ft/min on sheets to 20.4x29.5 inches. A detachable feeder with side-lay registration table switches between automatic and semi-automatic feeding, air-shaft mandrels speed film changeovers, and preheat plus heated nip rollers improve adhesion to digital prints. Side slitters with scrap take-up reels and six banks of cooling fans finish the web before offline sheeting.
View Details
Skandacor

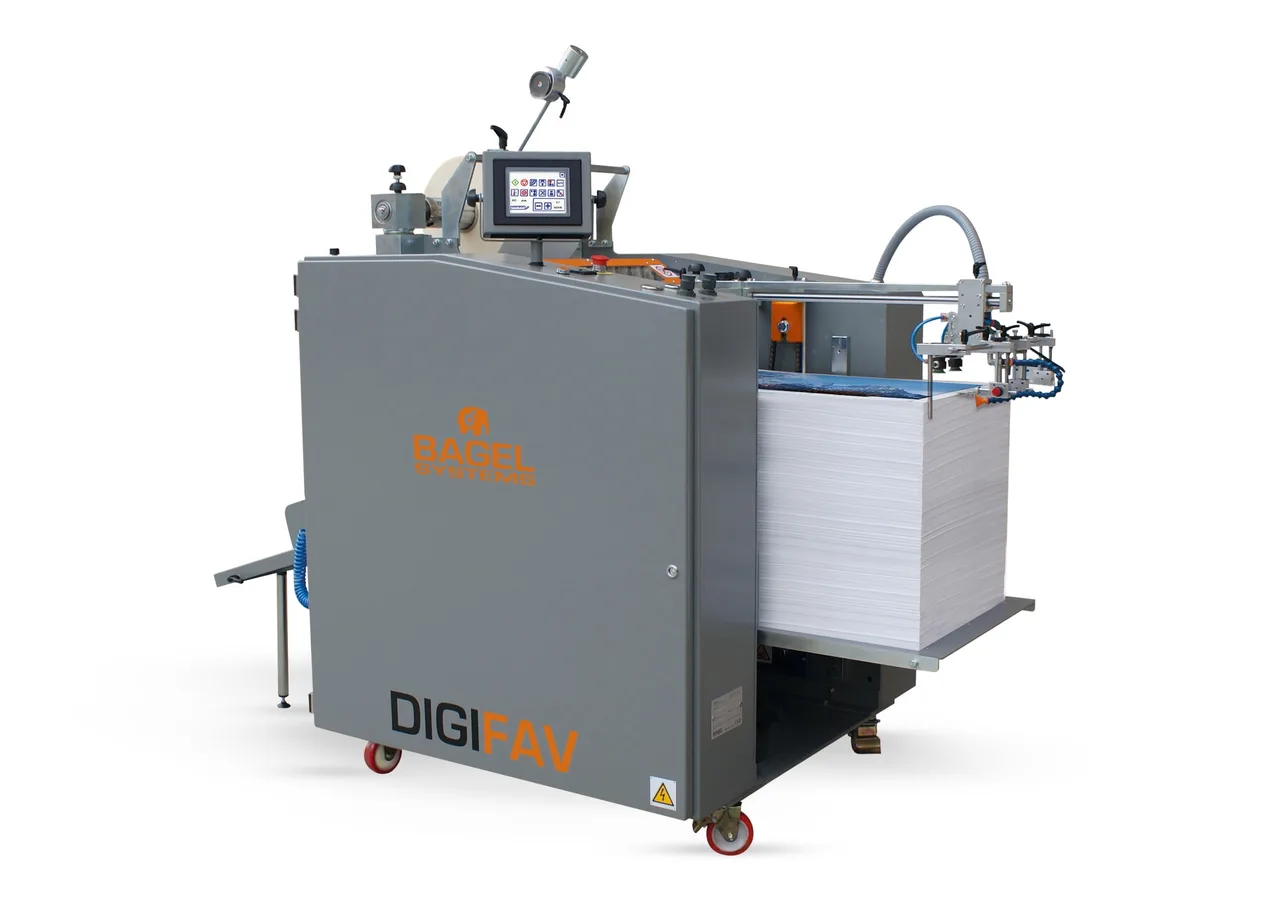

Skandacor Bagel DigiFav B2 Industrial Simplex Laminator
The Bagel DigiFav B2 is a compact industrial single-side laminator built for offset and digital B2 work, running sheets up to 20.8x29.5 inches at up to 72 ft/min (4,320 12x18 sheets per hour). A pneumatic air-suction feeder with 23.6 inch stack height and 440 lb capacity keeps it fed, a thermal-oil sealed heating roller holds consistent temperature, and high-speed bursting with a micro-perf wheel separates sheets automatically. SLEEKpro foil, table jogger, and pallet stacker modules are available.
View Details
Skandacor
Skandacor LAMpro Cheetah S15 Single Side Laminator
The LAMpro Cheetah S15 is a compact single-sided laminator and specialty finishing system designed for on-demand print shops. Its semi-automatic feeder suits short runs, while the flying knife separator cleanly cuts tough films like nylon and thin PET at speeds up to 39 ft/min. It also supports SLEEKpro finishing for variable data foil stamping, spot varnish, and holographic effects.
View Details
Duplo

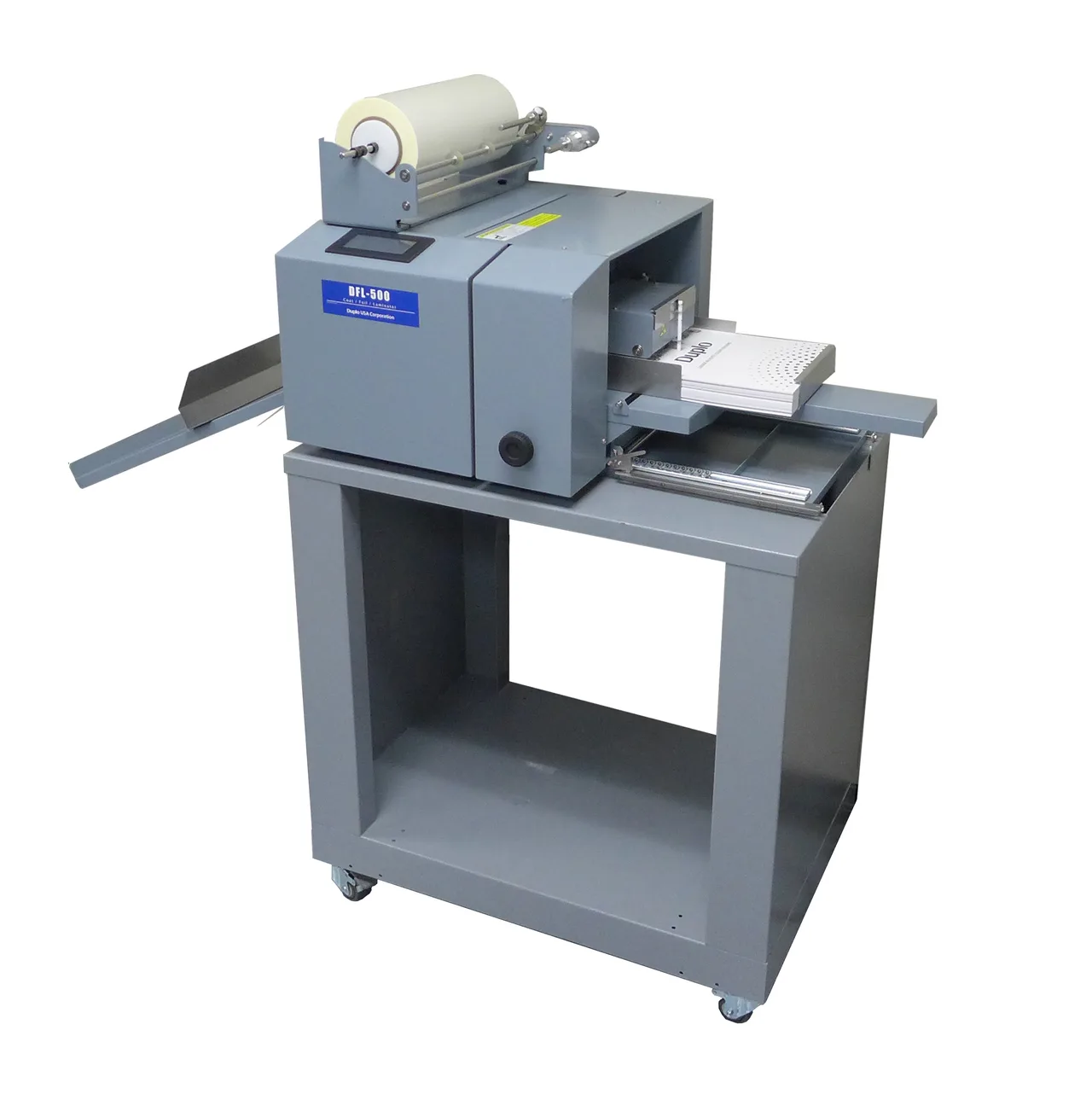

Duplo DFL-500 Dry Coat/Foil/Laminator
