Request a QuoteGerman engineeredPerfecta BA Automatic Unloader
Model: BA
The Perfecta BA unloader takes finished layers off the cutter and restacks them on a pallet up to 70.9 inches tall while the next cut is already running, with automatic format adjustment and pile quality clean enough to feed folders and other finishing gear directly. It mounts on the right or left of the high-speed cutter and handles layers up to 660 pounds on the large BA 7.
Request a Quote
Specifications
| Max sheet format (BA 3) | 31.5x47.2" / 800x1,200 mm |
|---|---|
| Max sheet format (BA 7) | 49.2x65" / 1,250x1,650 mm |
| Max layer height | 6.3" / 160 mm |
| Pile height incl. pallet | 55.1" / 1,400 mm (optional 70.9" / 1,800 mm) |
| Max layer weight | 330 lb / 150 kg (BA 3); 660 lb / 300 kg (BA 7) |
| Positioning | Right- or left-hand of the cutter, automatic format adjustment |
| Connected load | 7 kVA (BA 3) / 8 kVA (BA 7) |
| Compressed air | 6 bar (~87 psi); 4-5 l/min consumption |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a compressed-air supply at 6 bar (~87 psi); 7-8 kVA connected load depending on model.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Perfecta
Perfecta BP 115 High-Speed Cutter (45")
The Perfecta BP 115 is a 45 inch German made high-speed cutter sized for full press sheets in mid to large commercial plants. It delivers 44 cuts per minute, hydraulic clamping up to 45 kN, a top-mounted backgauge guidance system, and the TS computer with an 18.5 inch high resolution color touch screen.
View Details
Perfecta

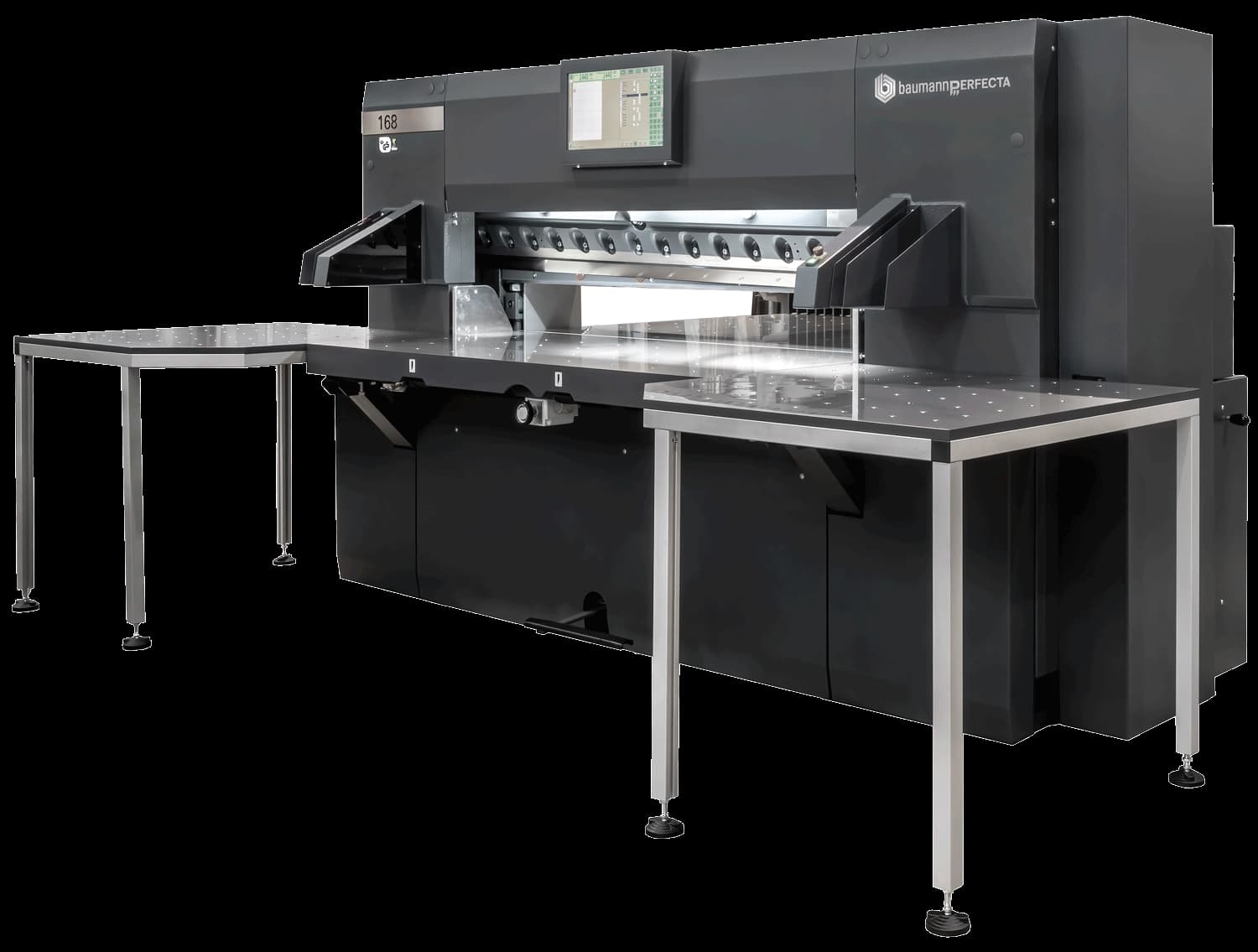

Perfecta BP 168 High-Speed Cutter (66")
