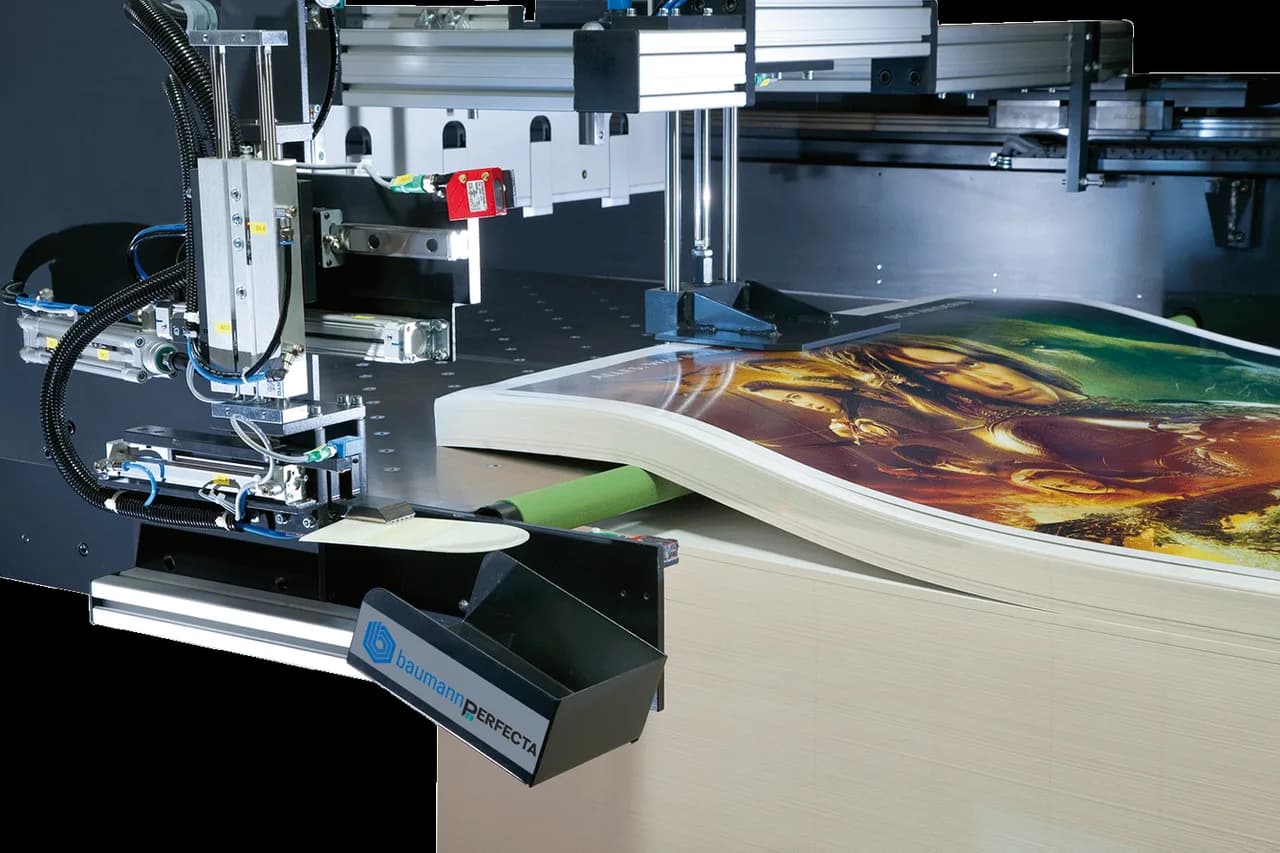

Request a QuoteGerman engineeredPerfecta BB Automatic Loader
Model: BB
The Perfecta BB loader automates separating reams off the pile and delivering them onto the high-speed cutter, loading the rear table by pusher or gripper clamp so the operator never lifts a layer. It destacks piles up to 55.1 inches tall (70.9 inches optional) and moves layers up to 330 pounds, handling paper, board, films, and even printing plates lengthways or crossways. Five models cover cutters from 30-inch to 65-inch formats.
Request a Quote
Specifications
| Max sheet format (BB 3 / BB 3-P) | 30.3x42.1" / 770x1,070 mm |
|---|---|
| Max sheet format (BB 5) | 36.2x51.2" / 920x1,300 mm |
| Max sheet format (BB 7 / BB 7-P) | 49.2x65" / 1,250x1,650 mm |
| Max layer height | 6.3" / 160 mm |
| Max pile height | 55.1" / 1,400 mm (optional 70.9" / 1,800 mm) |
| Carrying capacity | 330 lb / 150 kg per layer |
| Loading method | Rear-table loading by pusher or gripper clamp |
| Connected load | 9-11 kVA |
| Compressed air | 6 bar (~87 psi); 30 NL consumption |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a compressed-air supply at 6 bar (~87 psi); 9-11 kVA connected load depending on model.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Perfecta
Perfecta BP 115 High-Speed Cutter (45")
The Perfecta BP 115 is a 45 inch German made high-speed cutter sized for full press sheets in mid to large commercial plants. It delivers 44 cuts per minute, hydraulic clamping up to 45 kN, a top-mounted backgauge guidance system, and the TS computer with an 18.5 inch high resolution color touch screen.
View Details
Perfecta
Perfecta BP 132 High-Speed Cutter (52")
The Perfecta BP 132 is a 52 inch German made high-speed cutter for large format press sheets, packaging, and label work. It cuts at 44 cycles per minute with hydraulic clamping up to 45 kN, a top-mounted backgauge, and the TS computer with an 18.5 inch color touch screen with CIP3/CIP4 capability.
View Details
Perfecta

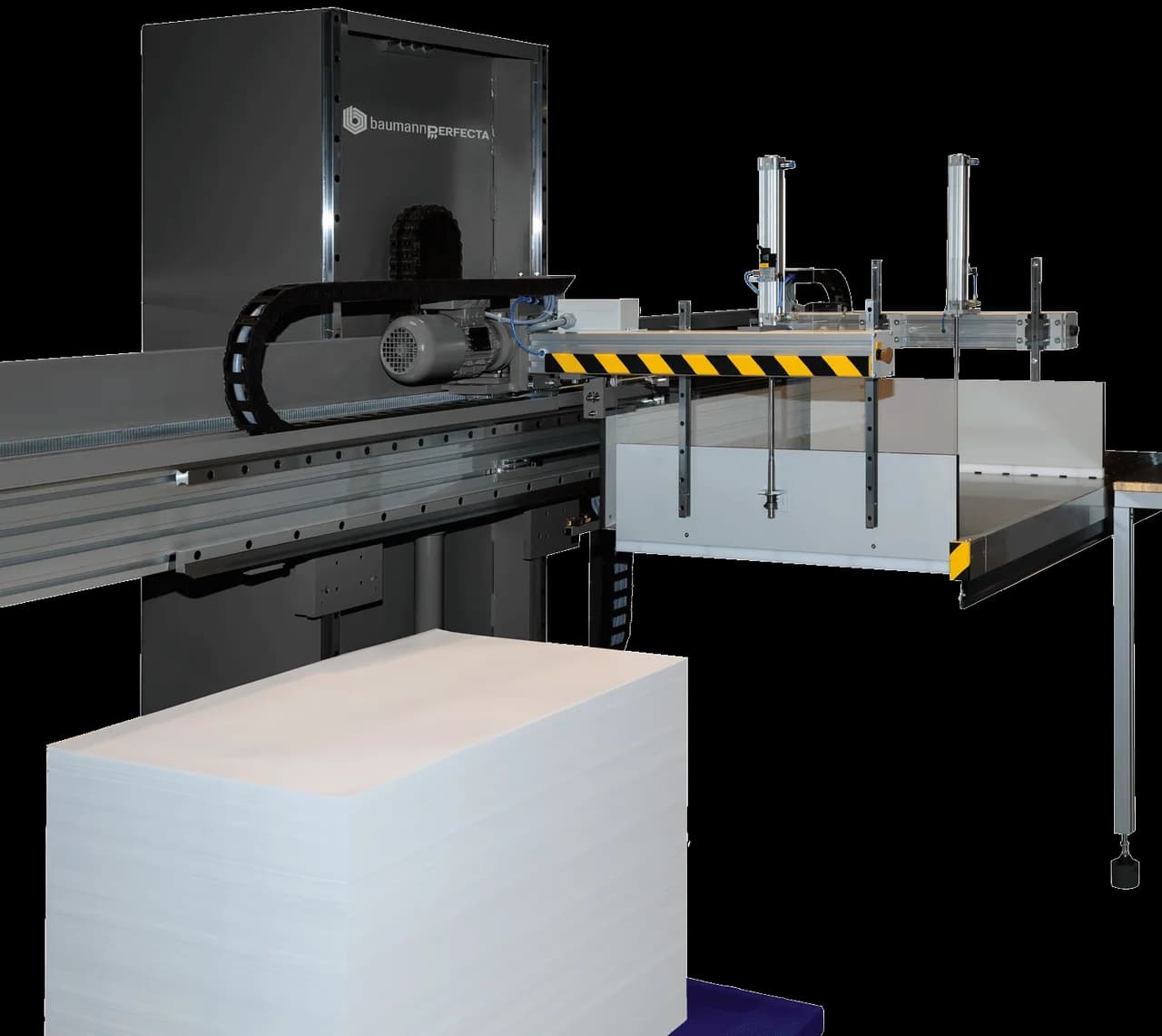

Perfecta BA Automatic Unloader
The Perfecta BA unloader takes finished layers off the cutter and restacks them on a pallet up to 70.9 inches tall while the next cut is already running, with automatic format adjustment and pile quality clean enough to feed folders and other finishing gear directly. It mounts on the right or left of the high-speed cutter and handles layers up to 660 pounds on the large BA 7.
View Details
Perfecta

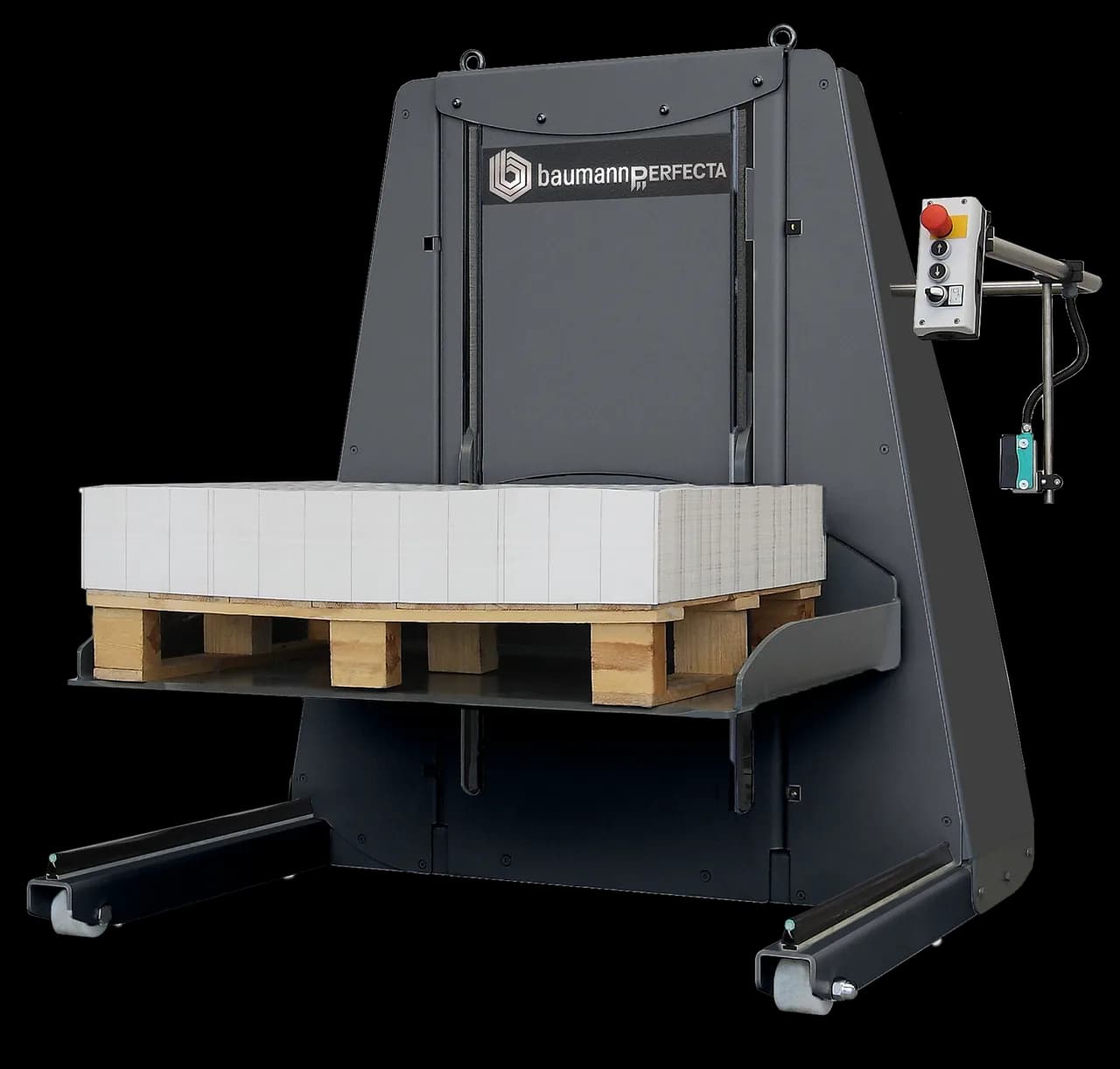

Perfecta BSH Mobile Stack Lift
