Request a QuoteGerman engineeredPerfecta BSW Pile Turner
Model: BSW

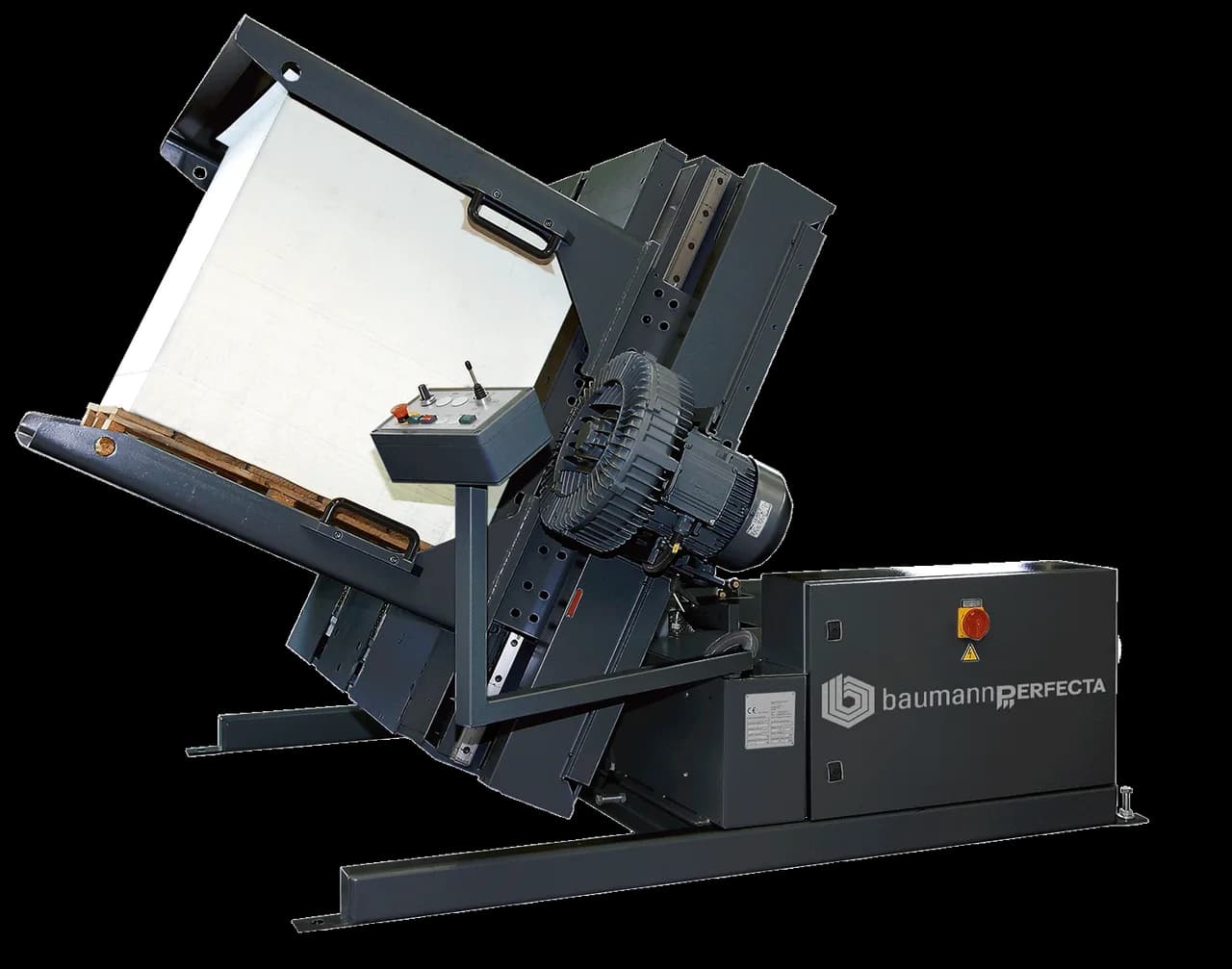

The Perfecta BSW pile turner flips, aerates, and aligns full pallet stacks up to 2,640 pounds, replacing the slowest and most injury-prone job in the pressroom with a motorized turn plus adjustable blowing and vibration that leaves piles separated, squared, and ready for the cutter. Semi-automatic BSW 3-1200 models handle 31.5x47.2-inch sheets; the fully automatic BSW 7-2000 takes large-format sheets to 49.6x65.7 inches with program-controlled turning, aeration, and vibration.
Request a Quote
Specifications
| Sheet format (BSW 3-1200) | 19.7x25.6" to 31.5x47.2" / 500x650 to 800x1,200 mm |
|---|---|
| Sheet format (BSW 7-2000) | 27.6x39.4" to 49.6x65.7" / 700x1,000 to 1,260x1,670 mm |
| Pile height (BSW 3-1200 N) | 24.8-57.1" / 630-1,450 mm |
| Pile height (H models) | 31.1-79.1" / 790-2,010 mm |
| Pile height (BSW 7-2000) | 31.5-79.5" / 800-2,020 mm |
| Max pile weight | 2,640 lb / 1,200 kg |
| Aeration | Adjustable blowers with large closable nozzles; variable vibration (LV/LDV) |
| Safety | Safety fence and entrance light barrier (fully automatic models) |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
We confirm power, space, and access requirements during a pre-install site survey, so there are no surprises on delivery day.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
