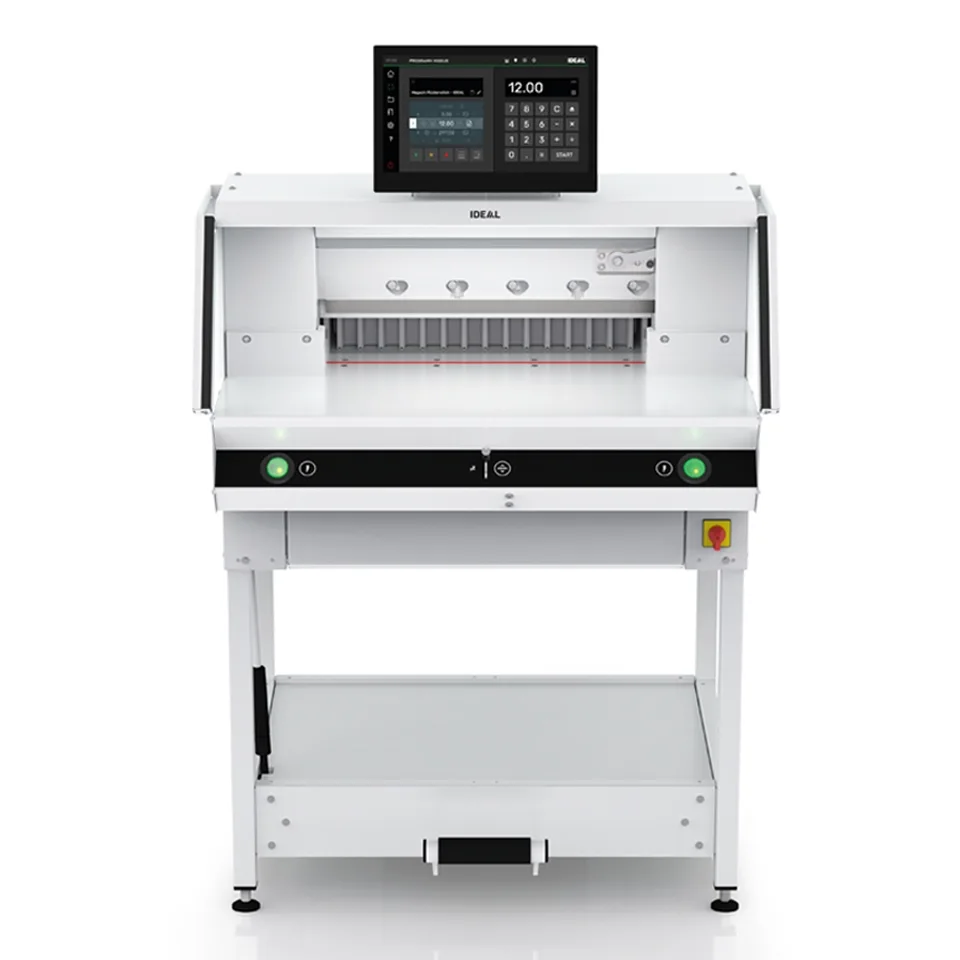

Request a QuoteMBM Triumph Speedcut 56 Hydraulic Paper Cutter
Model: CU0470
The Speedcut 56 is MBM's next-generation 22" programmable cutter, run from a tilt-adjustable 15.6" multi-touch display with an intelligently split interface. Its hydraulic clamp drive with infinitely programmable pressure clamps and cuts 40% faster than the previous series, the back gauge travels twice as fast, and an IR light-beam safety curtain plus two-hand EASY-TOUCH activation keep operation safe. Optional Speedcut software adds mark recognition and automated cutting programs, and the table height adjusts from 37" to 39" for operator comfort.
Request a Quote
Specifications
| Cutting width | 22" |
|---|---|
| Cutting height (pile) | 3.15" (3" with false clamp) |
| Narrow cut | Under 0.6" (2.3" with false clamp) |
| Length behind blade | 22" |
| Clamp type | Adjustable hydraulic with programmable pressure |
| Control | 15.6" multi-touch display, tilt adjustable |
| Safety | IR light-beam safety curtain, EASY-TOUCH two-hand activation |
| Table height | Adjustable 37" to 39" |
| Horsepower | 2 HP |
| Electrical requirements | 120 V, 60 Hz, 20 amp dedicated line |
| Dimensions (D x W x H) | 53.25" x 43.75" x 59.75" |
| Shipping weight | 770 lbs |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a 120 V, 60 Hz, 20 amp dedicated electrical line.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
