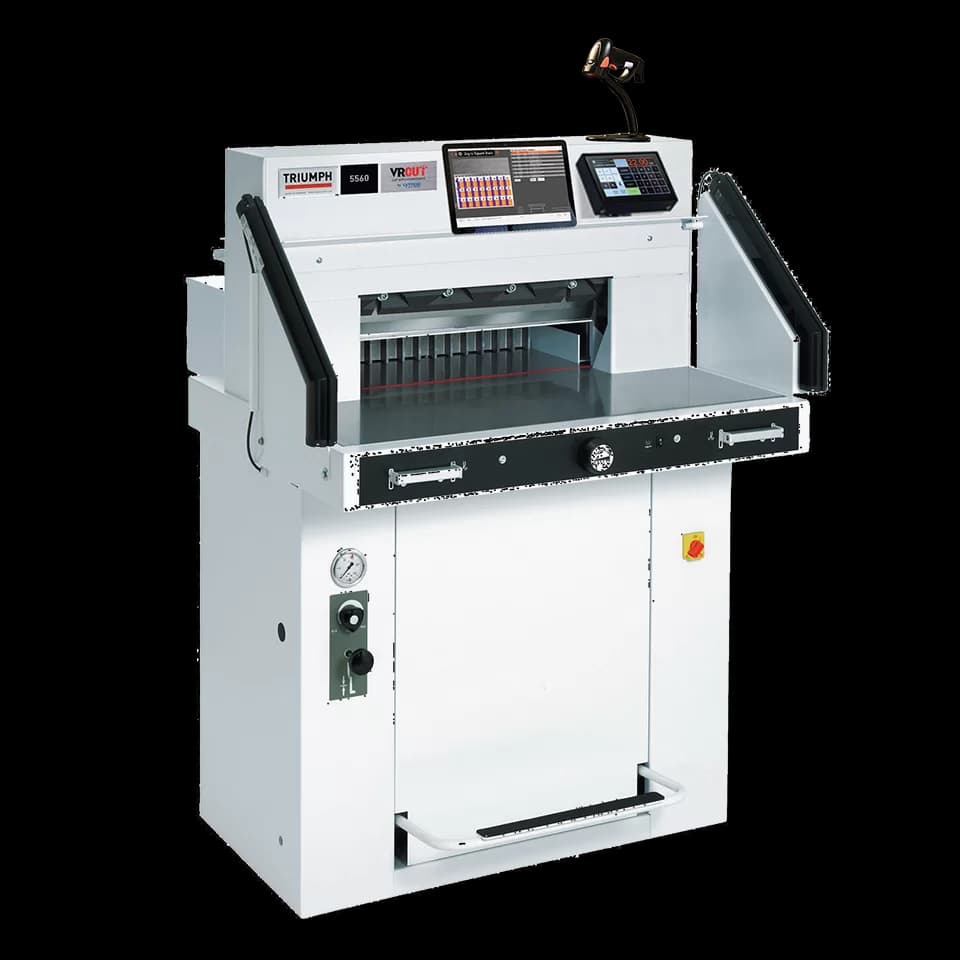

Request a QuoteMBM Triumph 5560 Hydraulic Cutter
Model: CU0493V
The Triumph 5560 is a floor-standing programmable paper cutter with an adjustable hydraulic clamp and a 21 5/8 inch cutting width. It stores 99 programs with up to 99 steps each and ships VRCut Ready for integration with MBM's VRCut automated cutting workflow. A 5560 LT version adds front and rear air tables for handling heavy stacks.
Request a Quote
Specifications
| Cutting width | 21 5/8" |
|---|---|
| Cutting height (pile height) | 3 3/4" (3 5/8" with false clamp) |
| Length behind blade | 22 7/16" |
| Narrow cut | 1 1/4" (2 3/8" with false clamp) |
| Clamp type | Adjustable hydraulic |
| Clamp pressure | 1,900 to 3,800 psi |
| Program storage | 99 programs with up to 99 steps each |
| Horsepower | 2 HP |
| Electrical requirements | 115 V, 60 Hz, 20 amp dedicated line required |
| Dimensions (D x W x H) | 55" x 42" x 54" (64" W with side tables) |
| Shipping weight | 970 lbs (5560); 1,014 lbs (5560 LT) |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a 115 V, 60 Hz, 20 amp dedicated electrical line.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
