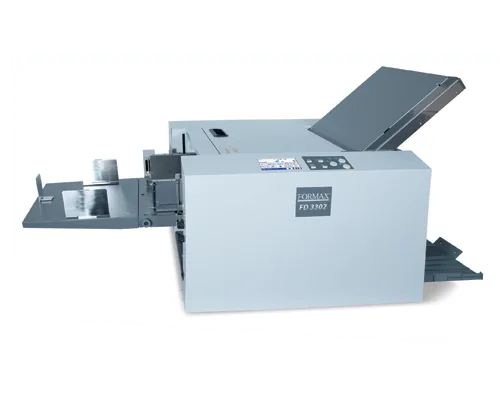

Request a QuoteFormax FD 3302 Air-Suction Document Folder
Model: FD-3302
The Formax FD 3302 uses an air-suction belt feed instead of friction wheels, so it folds coated, glossy, and digitally printed stock without feed marks or static problems. It runs up to 18,600 sheets per hour from a 625-sheet extended infeed that takes sheets up to 25.5" long, with automatic paper size detection and automatic fold plate setup from the color touchscreen. Optical and ultrasonic double-feed detection and a side air system for heavy stock make it a strong fit for print shops folding digital output.
Request a Quote
Specifications
| Speed | Up to 18,600 sheets per hour (11", single fold), 5 speed levels |
|---|---|
| Feed Type | Air-suction belt with side air system for heavy stock |
| Infeed Capacity | Up to 625 sheets (64gsm), 1.96" stack height |
| Fold Settings | 6 pre-programmed (C, Z, Half, Fold Out, Double Parallel, Gate) + 30 custom folds |
| Paper Sizes | 4.73x7.2" up to 12.2x25.5" |
| Paper Weight | Uncoated 14-40#, coated 19-40#; up to 230gsm single fold with testing |
| Double Feed Detection | Optical and ultrasonic sensors |
| Control Panel | 4.3" color touchscreen with automatic paper size detection |
| Dimensions | 53.3" L x 23.2" D x 24.2" H |
| Weight | 157 lbs (71kg) |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Tabletop unit, 110-240V 50/60Hz — runs on a standard 120V outlet. No compressed air needed (built-in suction).
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Formax
Formax FD 38Xi Fully-Automatic Touchscreen Document Folder
The Formax FD 38Xi is the top of Formax's friction-feed folder line: fully automatic fold-plate setup, 18 pre-programmed folds plus 36 custom folds in memory, and speeds up to 17,000 pieces per hour. Unlike the FD 386, the multi-sheet feeder for up to 4 stapled or unstapled sheets is built in, and AutoStack stacker wheels adjust themselves when you change paper. A 500-sheet hopper folds out in about 2 minutes onto the telescoping conveyor.
View Details
Formax

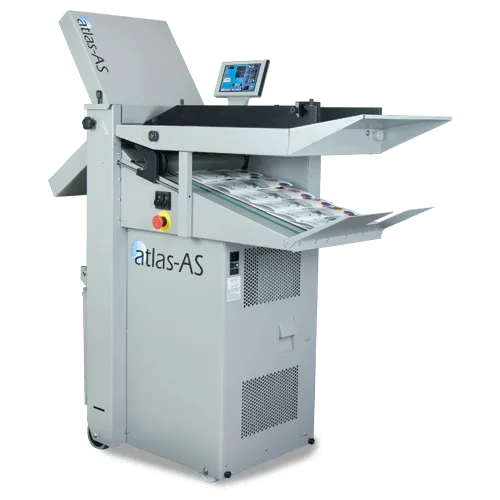

Formax Atlas-AS Air-Feed Document Folder
