Request a QuoteFormax Cut-True 29H Hydraulic Guillotine Cutter
Model: CUT-TRUE-29H
The Cut-True 29H is built for true two-shift production: hydraulic drive powers both the clamp (adjustable 700-4,500 psi) and blade through stacks up to 3.15" high and 20.5" wide, cut after cut. A 7" full-color touchscreen programs up to 100 jobs with 100 steps, the back gauge adjusts automatically, and a foot pedal pre-clamp lets operators check alignment before committing. The infrared safety curtain, two-hand operation, key lock, and automatic blade return keep a busy print shop cutting safely all day.
Request a Quote
Specifications
| Cutting Action | Dual-button hydraulic blade and clamp |
|---|---|
| Max Cutting Width | 20.5" (520 mm) |
| Max Paper Stack Height | 3.15" (80 mm) |
| Programmable Jobs | Up to 100 jobs with up to 100 steps, via 7" color touchscreen |
| Hydraulic Clamp Pressure | 700-4,500 psi, adjustable |
| Length Behind Blade | 20.5" (520 mm) |
| Minimum Cut | 1.6" (40 mm) with false clamp; 0.98" (25 mm) without |
| Table Size | 30.75x15.75" (56" W with optional side tables) |
| Dimensions / Weight | 49.25" H x 31" W x 53.25" D, 1,014 lbs |
| Power Supply | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires a 220V, 60Hz, 20A dedicated line (NEMA 6-20P). Net weight 1,014 lbs; 31" wide with safety curtains removed for transport through doorways. We coordinate delivery placement during installation.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Formax
Formax Cut-True 29A Automatic Electric Guillotine Cutter
The Cut-True 29A brings full production automation to a 20.5" cutting width: a 7" full-color touchscreen stores up to 100 jobs with up to 100 steps each, and the back gauge positions itself automatically for every cut. The electronically-controlled clamp and hardened steel blade handle stacks up to 3.15" high, with a false clamp for sensitive stock and minimum cuts down to 0.98". An infrared safety curtain shuts down operation the instant the light plane is broken; optional wide side tables add room for larger sheets.
View Details
Formax
Formax Cut-True 31H Hydraulic Guillotine Cutter
The Formax Cut-True 31H is a hydraulic guillotine paper cutter built for true two-shift production, cutting stacks up to 28.7 inches wide and 3.94 inches high with 0.1 mm accuracy. A 10 inch color touchscreen stores up to 100 programmable jobs, and the automatically adjusting back gauge, LED cut line, and foot-pedal pre-clamp keep every cut precise. Safety features include dual-button operation, an infrared safety curtain, and automatic blade return.
View Details
Formax

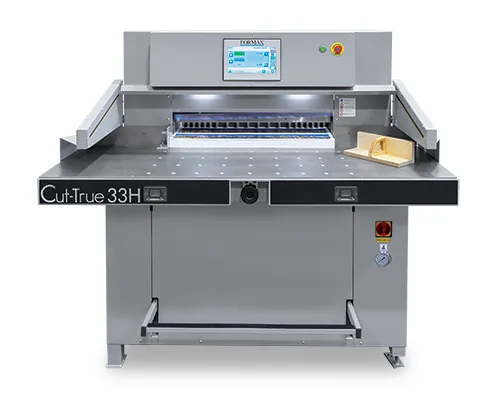

Formax Cut-True 33H Hydraulic Guillotine Cutter
The Cut-True 33H handles full parent sheets with its 31.5" cutting width and 4" stack height, letting shops buy larger stock and cut waste and paper costs without stepping up to an oversized cutter. Fully hydraulic blade and clamp (700-4,500 psi, adjustable from the 10" color touchscreen) deliver up to 16 cycles per minute, while the 160 mm/sec servomotor back gauge and 100 programmable jobs keep changeovers fast. Air-assist ball decks on the front and rear tables float heavy stacks, and both tables remove so the cutter fits through a standard 36" doorway.
View Details
Challenge
Challenge Champion 305 TC Paper Cutter
The Challenge Champion 305 TC is a USA made 30.5 inch programmable hydraulic paper cutter built for one to two shift production environments. It pairs powerful hydraulic clamping and cutting, accurate to within plus or minus 0.002 inch, with a 10.5 inch color touch screen TC controller and a rust free solid 1 inch thick stainless steel table. Light beam curtain safety, two hand timed cut activation, and UL, cUL, and CE certification make it one of the safest cutters in its class.
View DetailsSupplies for this machine
Blades, films, laser materials, and wear parts, matched to your model by the technicians who service it.
