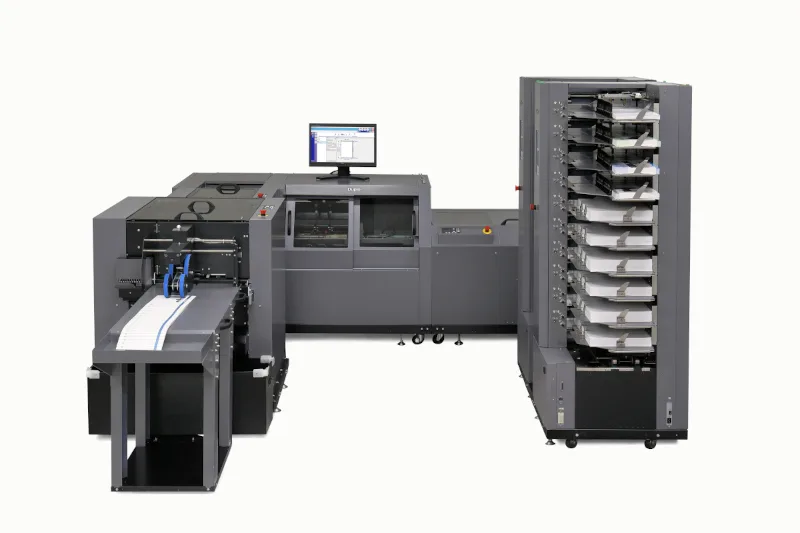

Request a QuoteDuplo iSaddle 5.0 Saddle Stitching System
Model: iSaddle 5.0
The Duplo iSaddle 5.0 is a production saddle stitching system that scores and plough-folds each collated set — the way a commercial bindery does — for thicker, flatter booklets than a conventional bookletmaker. Fed by DSC-10/60i collator towers (up to 60 bins), it stitches with heavy-duty Hohner heads and trims at up to 5,050 booklets per hour, handling 12" x 12", letter landscape, and long-cover formats up to 14" x 24" sheets.
Request a Quote
Specifications
| Speed | Up to 5,050 sets per hour (10 sheets or less, A5) |
|---|---|
| System Components | DSC-10/60i Collator + DBMS-F5 Fold Unit + DBMS-S5 Stitch Unit + DBMS-T5 Trim Unit + PC Controller |
| Collator Bins | 10 per tower, connectable up to 60 bins (six towers); 2.56" (65 mm) per bin |
| Paper Size | 4.73"-14.01" wide (2-stitch) x 8.27"-24.01" long (120-356 mm x 210-610 mm) |
| Sheets per Booklet | Up to 30 sheets saddle stitched (3 mm spine or less) |
| Paper Weight | Fine quality 64-157 gsm; art coated 84.9-157 gsm; covers 64-300 gsm |
| Stitch Heads | 2 Hohner heads standard; 3- and 4-stitch head kits optional |
| Binding Method | Score + plough fold + stitch (flatter, thicker booklets than fold-and-staple) |
| Trimming | Fore-edge trim 1-25 mm (to 75 mm on 48-page or fewer booklets), capacity 6 mm; optional DKTS-200 two-knife trimmer for full bleed |
| Finished Booklet Size | 4.73" x 2.96" to 14.01" x 12.01" (2-stitch, trimmed) |
| Power Requirements | Collator: 120V 60Hz · Stitch unit: 200-240V, 510-605W · Trim unit: 200-240V, 355-470W |
| Dimensions (WxDxH) | Collator: 34" x 33" x 78" · Fold: 56.4" x 38" x 58.4" · Stitch: 73.5" x 45.5" x 45.8" · Trim: 28.2" x 56.8" x 67.4" |
| Net Weight | Collator 674 lb · Fold unit 754 lb · Stitch unit 946 lb · Trim unit 511 lb |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Stitch and trim units require 200-240V circuits; the collator runs on 120V. This is a production line — plan 20+ linear feet plus tower expansion space.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
