Request a QuoteDuplo DC-746 B2 Slitter/Cutter/Creaser
Model: DC-746 B2
The Duplo DC-746 B2 is an integrated finishing line that takes multiple-up B2 sheets (up to 14.56" x 29.52") straight from the press and delivers finished pieces that are slit, cut, creased, scored, and perforated in a single pass. It combines the DSF-20K B2 air-suction feeder and the DC-20000 B2 cutter/bridge with the DC-746 finisher, so shops printing on B2 digital presses can finish on demand instead of offloading to a guillotine.
Request a Quote
Specifications
| System Components | DSF-20K B2 Sheet Feeder + DC-20000 B2 Cutter/Bridge + DC-746 Slitter/Cutter/Creaser |
|---|---|
| Input Paper Size | Up to 14.56" x 29.52" (370 x 750 mm), short-edge or long-edge feeding |
| Paper Weight | 110-400 gsm, uncoated, coated, laminated, or UV coated (feeder and bridge) |
| Processing Speed | Up to 9.5 sheets per minute (20.86" x 28.34" sheets, 2 cuts); feeder rated up to 1,500 sheets per hour |
| Bridge Cuts | Up to 6 cuts per sheet; minimum cut 15 mm lead, 10 mm gutter and trail |
| Bridge Tolerance | ±1.0 mm (final finishing tolerance follows DC-746 spec of ±0.2 mm) |
| Feeder Capacity | Up to 10" paper loading (DSF-20K) |
| Job Memory | 80 jobs on the DC-20000; PC Controller with PDF/XML template creator included |
| Power Requirements | DSF-20K: 100-240V, 8A · DC-20000: 115V, 25A dedicated line · DC-746: 115V, 5.2A |
| Dimensions (WxDxH) | DSF-20K: 39" x 50" x 50" · DC-20000: 58" x 50" x 68" · DC-746: 104" x 40" x 44" |
| Net Weight | DSF-20K: 692 lb (314 kg) · DC-20000: 721 lb (327 kg) · DC-746: 992 lb (450 kg) |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
The DC-20000 B2 cutter/bridge requires a dedicated 115V 25A circuit; the feeder and DC-746 run on standard outlets. Plan a production-floor footprint for the full three-module line.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo
Duplo DC-746 Slitter/Cutter/Creaser
The Duplo DC-746 is the production flagship of the DC series: it slits, cuts, creases, perforates, and folds digitally printed sheets in a single pass at up to 50 sheets per minute — more than twice the throughput of the DC-618. Rotary slitters, a guillotine cutter, and a 3-step depth-adjustable creaser handle 24-up and 36-up business cards, postcards, and coupon work up to 350 gsm, while the built-in CCD scanner reads barcodes to change jobs over automatically.
View Details
Duplo
Duplo DC-648 Slitter/Cutter/Creaser
The Duplo DC-648 is a mid-volume slitter, cutter, and creaser that finishes digitally printed sheets in one pass at up to 40 sheets per minute, handling oversized stock up to 14.56" x 39.37" and 400 gsm. Advanced camera sensor technology reads barcodes and registration marks for automated job changeovers and sheet-by-sheet correction, and Fiery Impose integration cuts setup time. It is built for shops producing business cards, postcards, packaging, and banner-length work at higher volumes than the DC-618.
View Details
Duplo

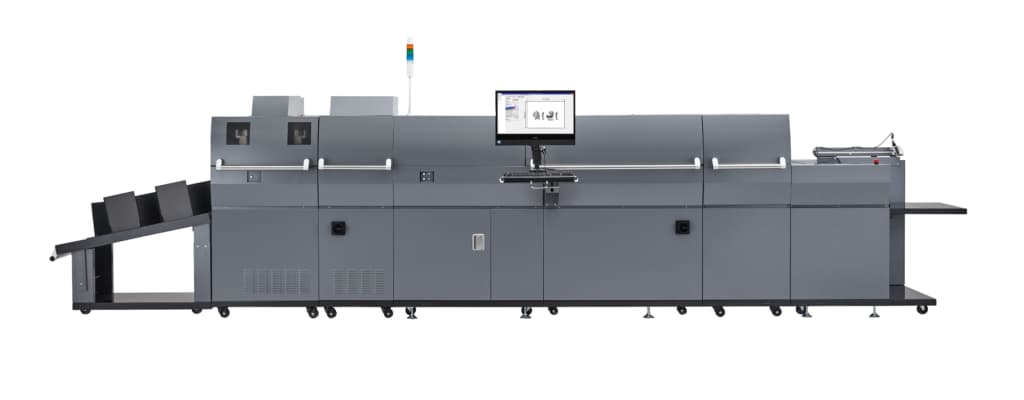

Duplo DuSense DDC-8000 Raised Spot UV Coater
