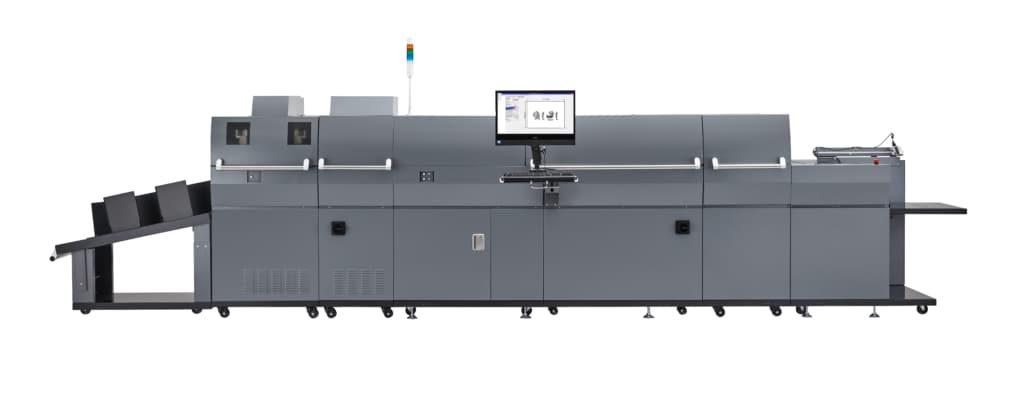

Request a QuoteDuplo DuSense DDC-8000 Raised Spot UV Coater
Model: DDC-8000
The DuSense DDC-8000 applies raised spot UV embellishment digitally on press sheets up to 23" x 42" and 600 gsm, using 600x600 inkjet technology, UV lamp curing, and camera registration accurate to 0.2 mm. No dies or screens are required, and the optional Cold Foil Inline Unit adds metallic, holographic, and matte foils in the same pass without lamination. It is the B2 format answer for shops adding high-margin packaging, book jackets, and premium collateral.
Request a Quote
Specifications
| Paper Size (WxL) | Minimum 11" x 11" (279 x 279 mm) to maximum 23" x 42" (585 x 1,068 mm) |
|---|---|
| Paper Weight/Thickness | 157-600 gsm / 0.14-0.8 mm; art/coated stock |
| Coating Thickness | 10-40 microns (5-micron increments); 20-80 microns (10-micron increments) |
| Production Speed | Spot coating: 25 sheets per minute (12.6" x 17.72" at 40 microns), 12 sheets per minute (B2); Foiling: 12 sheets per minute (12.6" x 17.72"), 6 sheets per minute (B2) |
| Print Technology | 600x600 inkjet with UV lamp curing and camera image registration |
| Print Accuracy | ±0.2 mm in both X and Y directions |
| Maximum Printable Width | 21.18" (538 mm), with 0.39" (10 mm) non-printable margins |
| Feed Capacity | 7.87" (200 mm) |
| Dimensions (WxDxH) | 213.7" x 75.6" x 78" (includes Spot UV Coater, Feeder Unit, Skew Correction Unit, Stacker) |
| Weight | 2,932.7 lb (base system); Cold Foil Unit adds 961.4 lb |
| Power Requirements | Skew Correction Unit: 208-240V three phase, 50/60Hz, 13A; UV Curing Unit: 208-240V single phase, 30-35A, 7,200W; Computer: 115-120V |
| Cold Foil Unit (Optional) | Foil roll width 1.96" to 21.57"; max foiling area 21.18" x 41.33"; requires 0.5 MPa (73 psi) air supply |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Requires 208-240V three phase and single phase circuits (see power specs), compressed air for the optional foil unit, and roughly 18 feet of line length. We plan the full layout during the site survey.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo

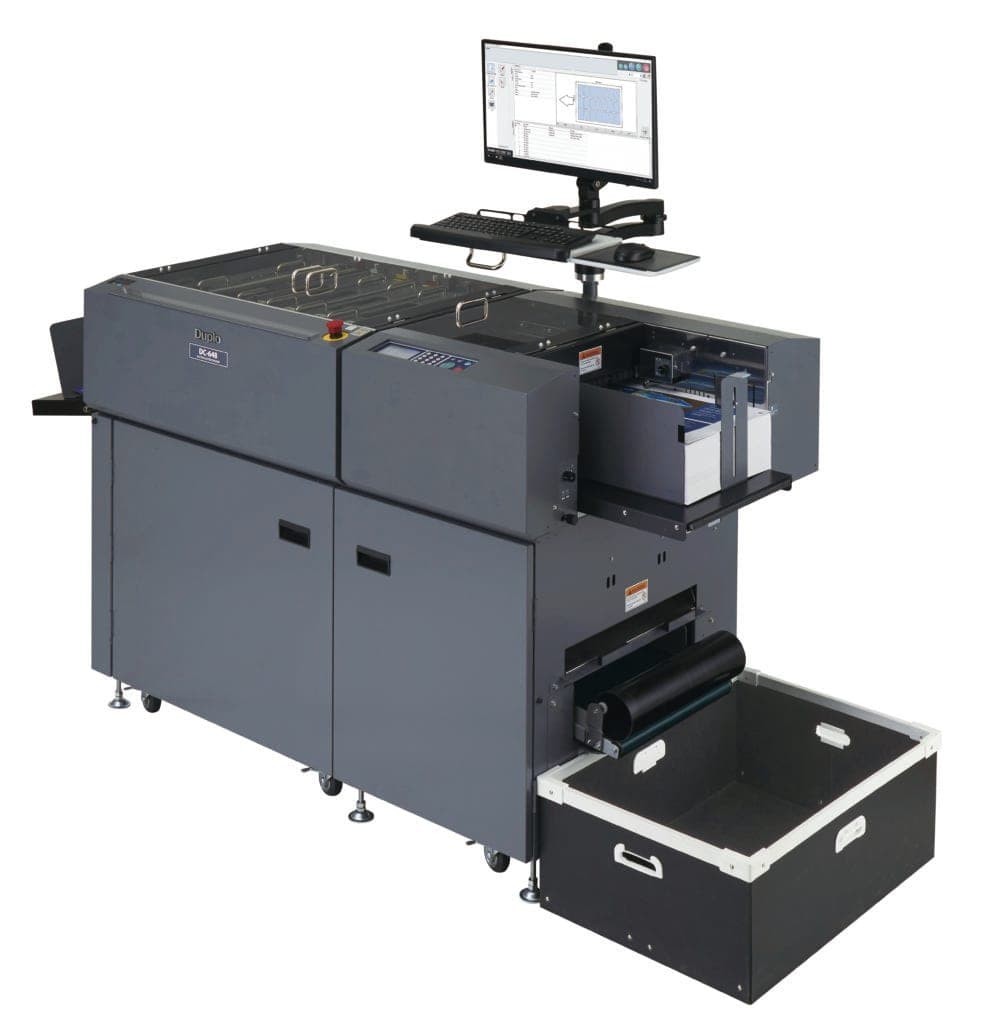

Duplo DC-648 Slitter/Cutter/Creaser
The Duplo DC-648 is a mid-volume slitter, cutter, and creaser that finishes digitally printed sheets in one pass at up to 40 sheets per minute, handling oversized stock up to 14.56" x 39.37" and 400 gsm. Advanced camera sensor technology reads barcodes and registration marks for automated job changeovers and sheet-by-sheet correction, and Fiery Impose integration cuts setup time. It is built for shops producing business cards, postcards, packaging, and banner-length work at higher volumes than the DC-618.
View Details
Skandacor

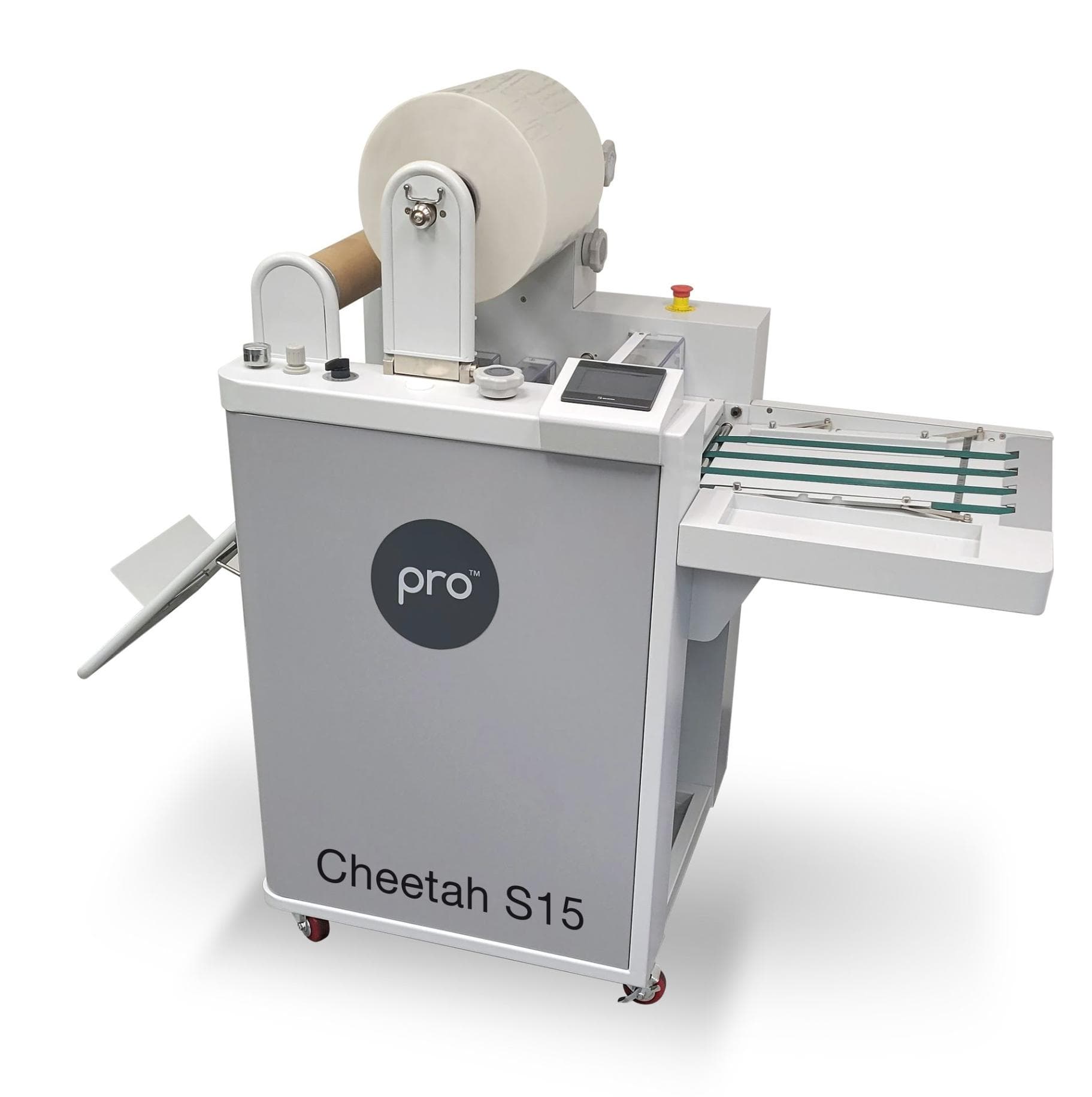

Skandacor LAMpro Cheetah S15 Single Side Laminator
The LAMpro Cheetah S15 is a compact single-sided laminator and specialty finishing system designed for on-demand print shops. Its semi-automatic feeder suits short runs, while the flying knife separator cleanly cuts tough films like nylon and thin PET at speeds up to 39 ft/min. It also supports SLEEKpro finishing for variable data foil stamping, spot varnish, and holographic effects.
View Details
Skandacor

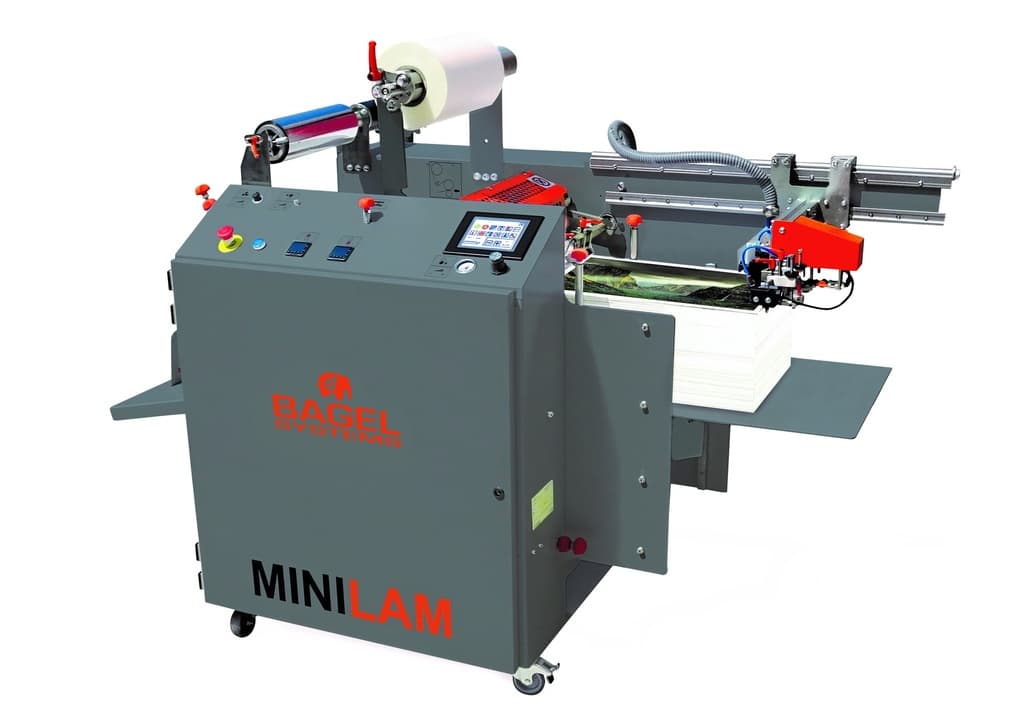

Skandacor BAGEL MiniLam B3 Compact Auto Laminator
The Bagel Systems MiniLam B3 is a compact fully automatic single-side laminator built for demanding digital print environments. A pneumatic air suction feeder with a 15.75 inch stack height keeps production moving at speeds up to 49 ft/min with high speed bursting separation. Modular options add duplex lamination, a SLEEKpro foil module, and an ultra fast double film changer.
View Details
Duplo

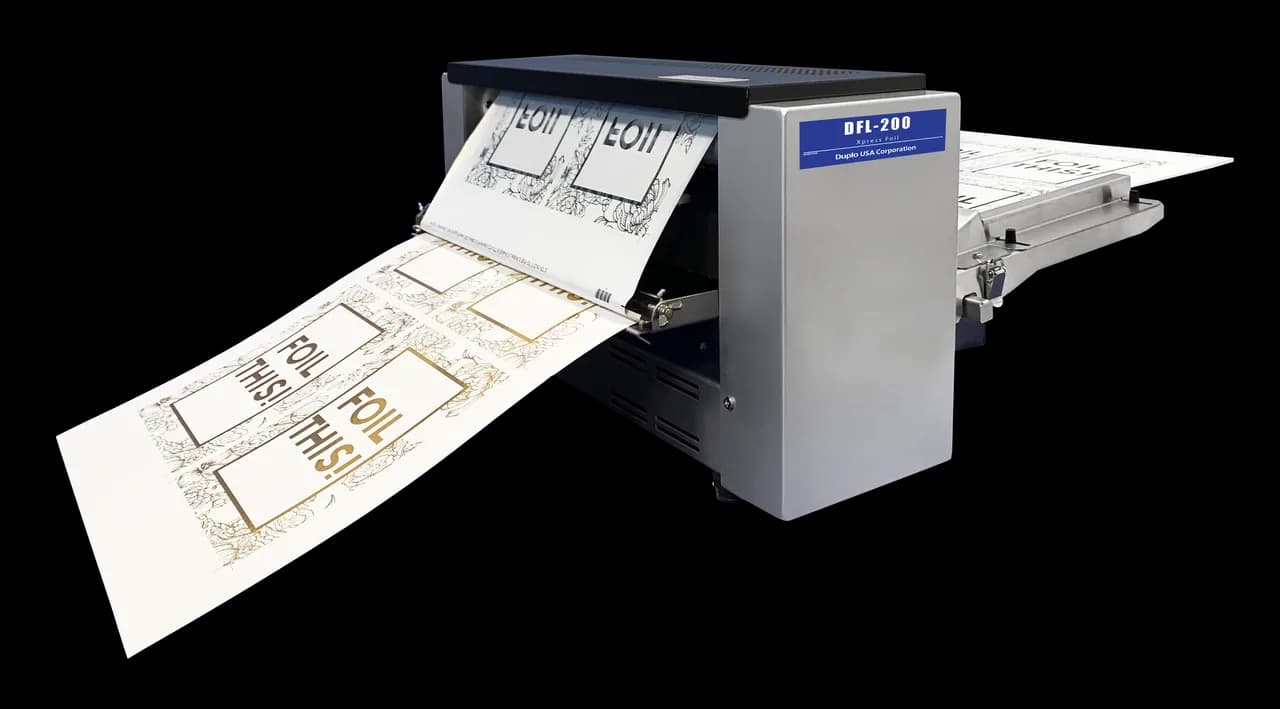

Duplo DFL-200 Xpress Foil
