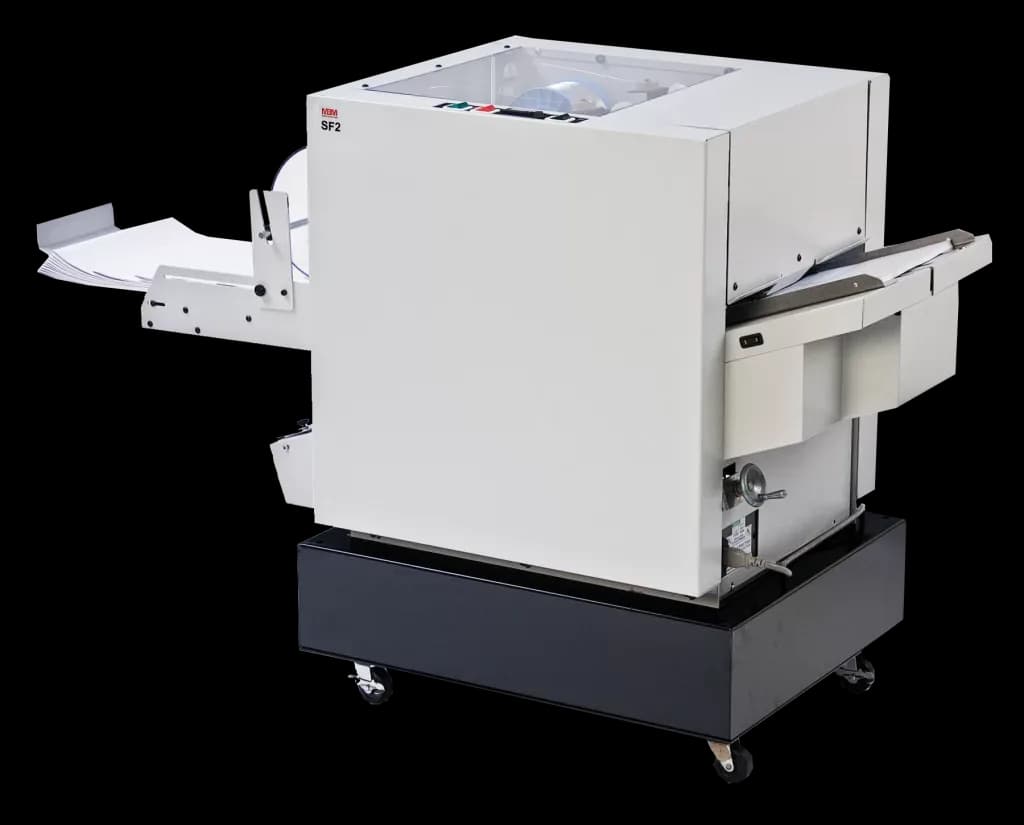

Request a QuoteMBM SF2 Wire-Stitch Bookletmaker
Model: SF2
The SF2 jogs, stitches, and folds up to 100-page booklets at 2,300 sets per hour using a wire-fed stitching system that runs about 65,000 booklets per wire spool — far cheaper per stitch than pre-formed staples. It works as a standalone bookletmaker or in-line with collators like the MBM FC10 Plus (interface included), with moveable magnetic stitching heads, adjustable staple leg length, and one-step wire threading for fast setup. An optional face trimmer, activated clinch, and corner/side stitch gate round out the system.
Request a Quote
Specifications
| Type | Wire-fed stitch, fold, and jog bookletmaker |
|---|---|
| Speed | 2,300 sets/hr |
| Sheet Capacity | 25 sheets (booklets up to 100 pages) |
| Paper Size | 4.7x8.5" to 12.7x18.5" |
| Wire Capacity | Approx. 65,000 booklets per wire spool |
| Stitching Heads | Moveable, magnetic; adjustable staple leg length |
| Delivery | Powered exit conveyor |
| Dimensions (DxWxH) | 21x52x24.5" |
| Electrical | 115V, 60 Hz |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 115V outlet.
Delivery & lead time
Shipping weight 402 lbs.
Related Machines
MBM

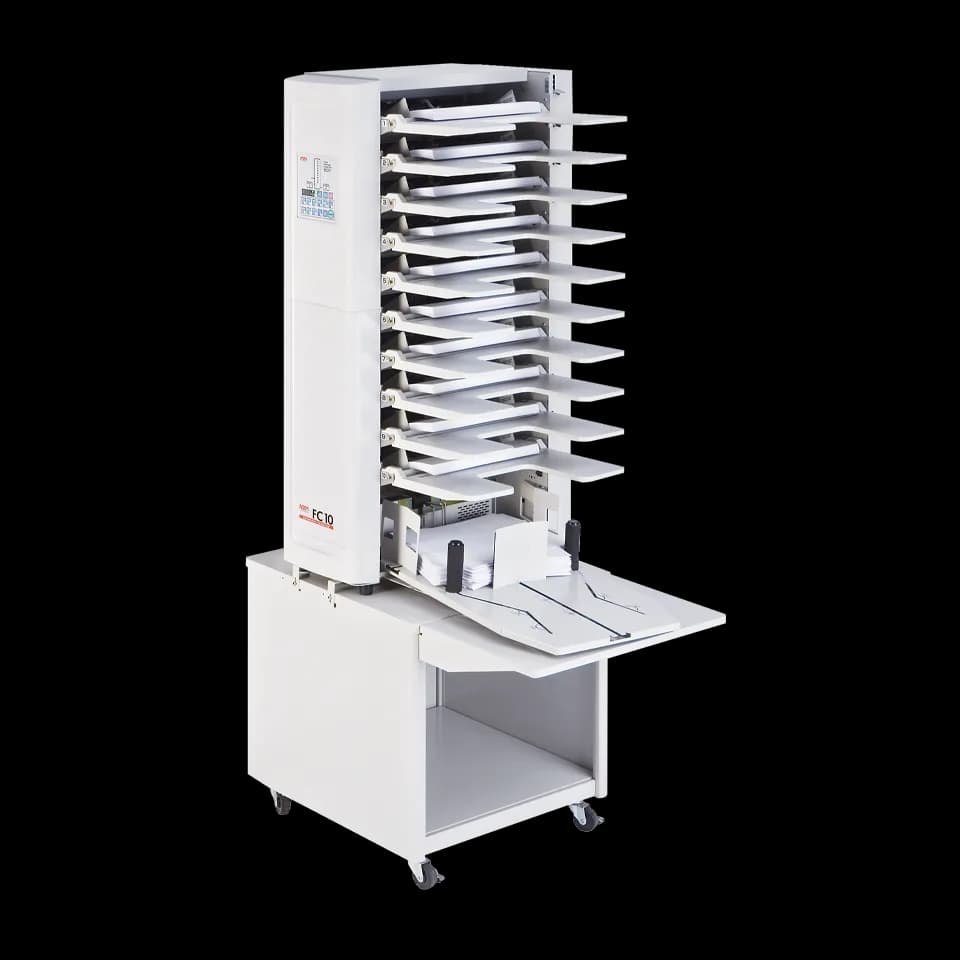

MBM FC10 Plus Friction Feed Collator
