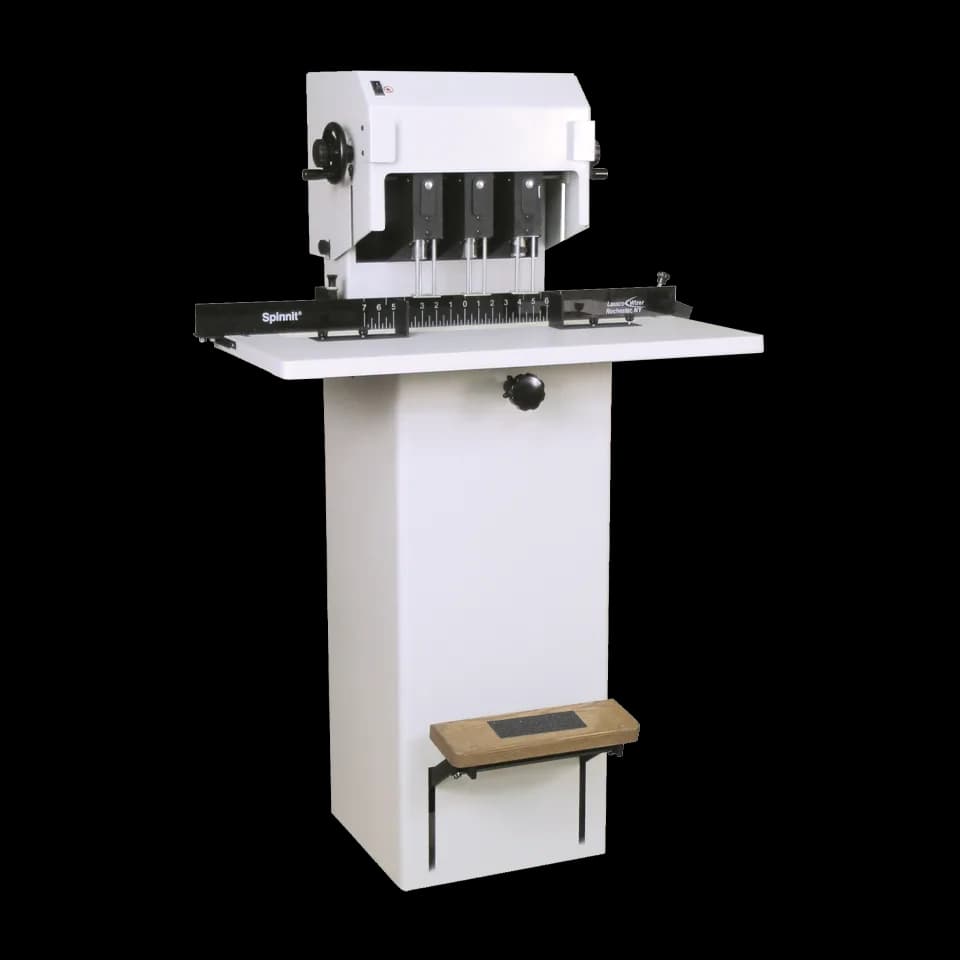

Request a QuoteMBM FMM3 Three-Spindle Paper Drill
Model: DR0982
The FMM3 is a three-spindle floor-model paper drill that punches through a full 2" lift in one stroke, with adjustable heads for custom hole spacing and an easy-glide table on bearings with a built-in measuring scale. It accepts 1/8" to 1/2" drill bits and ships with three 1/4" bits and a solid-carbide bit sharpener, making it a fast prep station for 3-ring, coil, and wire binding work.
Request a Quote
Specifications
| Spindles | 3, adjustable spacing |
|---|---|
| Drilling capacity | 2" pile height |
| Drill bit sizes | 1/8" to 1/2" (three 1/4" bits included) |
| Max throat depth | 3.75" |
| Max paper length | 32" |
| Table size (D x W) | 32x15" |
| Motor | 0.75 hp |
| Electrical requirements | 115 V, 60 Hz |
| Dimensions (D x W x H) | 32" x 15" x 52" |
| Shipping weight | 292 lbs |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 115 V, 60 Hz outlet.
Delivery & lead time
Floor model; ships freight at 292 lbs.
