Request a QuoteRecently installed in MiamiMartin Yale Dry Lam HLA-2301 Automatic Laminator
Model: DL-HLA2301
The Dry Lam HLA-2301 is a fully automatic desktop laminator built for professional environments where speed and consistency matter. It feeds up to 200 sheets automatically, laminates single or double sided at 68 inches per minute, and trims each piece with flush cut or border cut modes. A mobile cart, telescoping catch tray, and waste bin are included.
Request a Quote
Specifications
| Laminating Width | 13 in |
|---|---|
| Speed | 68 in/min |
| Warm-Up Time | Less than 5 minutes |
| Film Thickness | 1.5 - 10 mil (10 mil single side only) |
| Max Laminating Thickness | 16 mil |
| Lamination Modes | Single-sided and double-sided |
| Roller Temperature | Dual heated rollers, 170-270 F |
| Feeder Capacity | 200 sheets (automatic feed tray) |
| Trimming | Flush cut (adjustable margin, +/- 3 mm) or border cut with 4-sided trim |
| Dimensions (L x W x H) | 48 x 23.5 x 44 in |
| Weight | 170 lb |
| Electrical | 100-240 VAC, 50-60 Hz, 1200 W |
Specifications verified from the manufacturer, last checked 2026-08-12.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on standard 100-240 VAC power. Includes a mobile cart; no rigging required.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Skandacor
Skandacor LAMpro Cheetah S15 Single Side Laminator
The LAMpro Cheetah S15 is a compact single-sided laminator and specialty finishing system designed for on-demand print shops. Its semi-automatic feeder suits short runs, while the flying knife separator cleanly cuts tough films like nylon and thin PET at speeds up to 39 ft/min. It also supports SLEEKpro finishing for variable data foil stamping, spot varnish, and holographic effects.
View Details
Skandacor

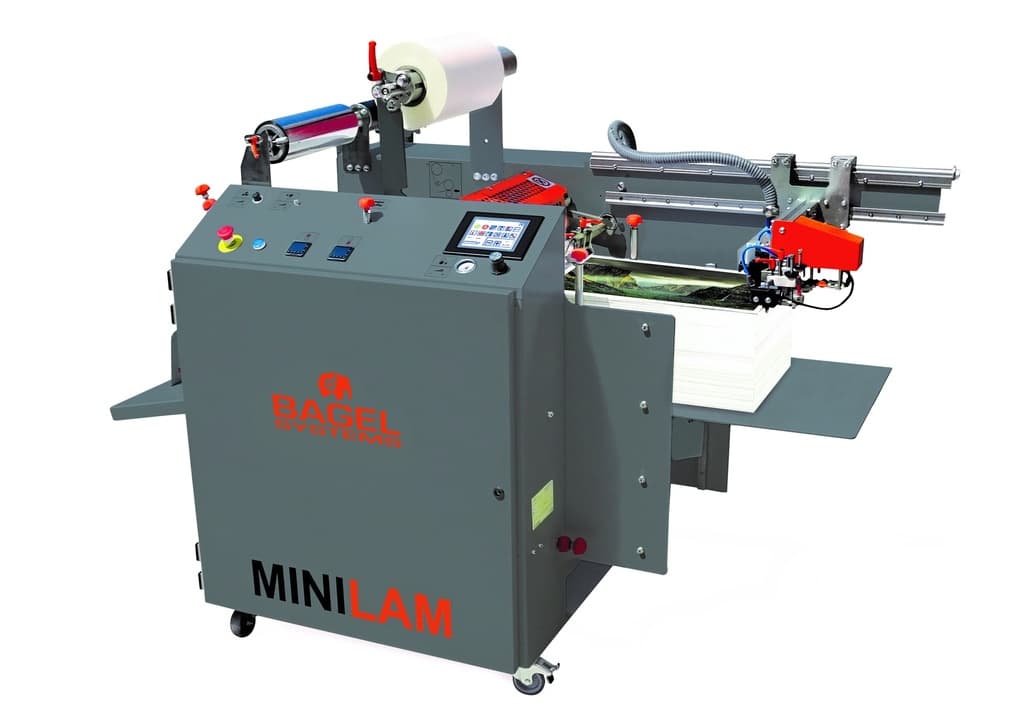

Skandacor BAGEL MiniLam B3 Compact Auto Laminator
The Bagel Systems MiniLam B3 is a compact fully automatic single-side laminator built for demanding digital print environments. A pneumatic air suction feeder with a 15.75 inch stack height keeps production moving at speeds up to 49 ft/min with high speed bursting separation. Modular options add duplex lamination, a SLEEKpro foil module, and an ultra fast double film changer.
View Details
CutWorx

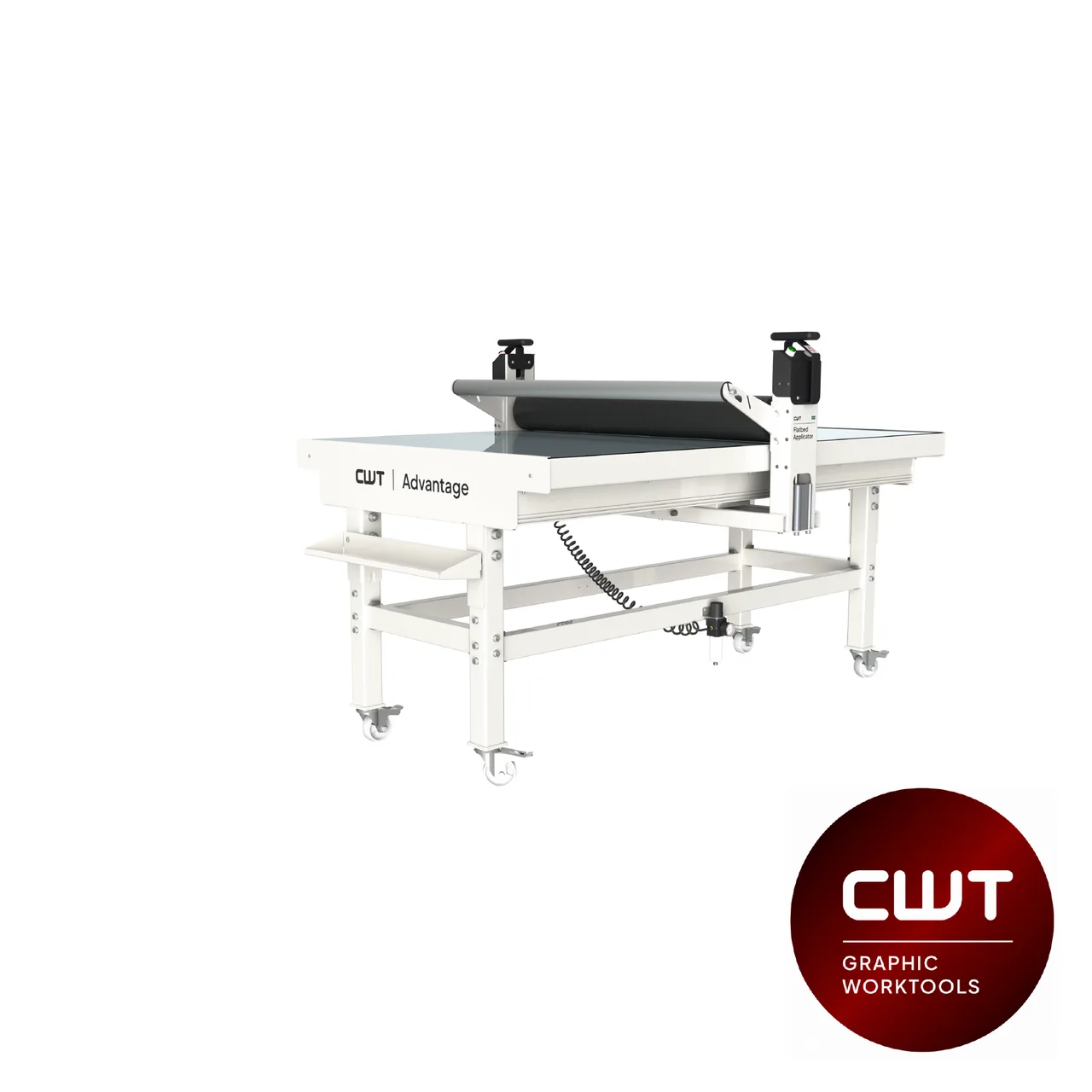

CutWorx CWT 1016 Advantage Flatbed Applicator Table
The CWT 1016 Advantage is the smallest CWT applicator table, giving sign shops a 4'5" x 3'1" working area for laminating, transfer-taping, and mounting yard signs, posters, and street signs. Like all CWT flatbed applicators it positions material precisely for far less waste than a roll laminator, and most operators are productive within an hour. It arrives fully assembled - roll it out of the crate and into the shop.
View Details
CutWorx

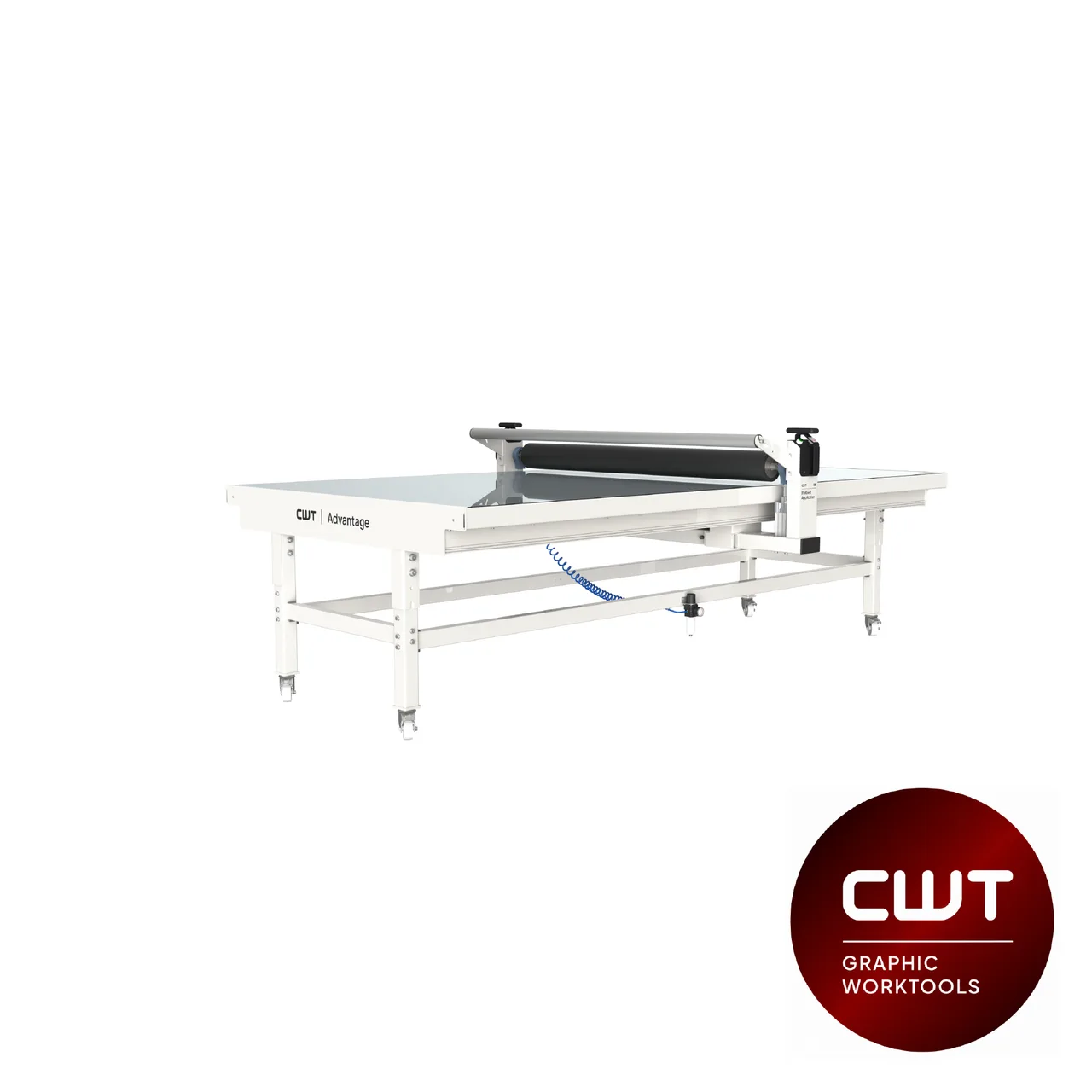

CutWorx CWT 1428 Advantage Flatbed Applicator Table
