Request a QuoteFormax Punch100 Modular Electric Punching System
Model: PUNCH100
The Formax Punch100 is a foot-pedal-activated electric punch that swaps between tool-free interchangeable dies for double-loop wire, plastic comb, and spiral coil, so one machine covers every binding style. Its precision vertical punching system uses gravity for consistent hole placement on stacks up to 3.5 mm thick and sheets up to 13.4 inches wide, and the modular design accepts the Wire100, Comb100, or Coil100 binding modules to build a complete punch-and-bind station.
Request a Quote
Specifications
| Punching Speed | Up to 1,200 sheets/hr (per spec sheet) |
|---|---|
| Punching Width | .39 - 13.4" (10-340 mm) |
| Unpunched Length | 1.57 - 31.5" (40-800 mm) |
| Max Punching Thickness | 0.137" (3.5 mm) |
| Dies Available | 2:1 and 3:1 wire, plastic comb, spiral coil (10 die options) |
| Disengageable Punch Pins | Yes, tool-free |
| Operation | Electric, foot pedal |
| Dimensions | 22" W x 14" D x 9.8" H |
| Weight | 76 lbs (34.5 kg) |
| Power Supply | 120V, 60Hz, 250W |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 120V outlet.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Formax
Formax Wire100 Manual Wire Binding System
The Formax Wire100 is a compact manual closer for double-loop wire bindings, handling both 2:1 and 3:1 pitch and wire diameters from 1/4" to 1-1/2" for booklets up to 340 sheets. A low-pressure lever and integrated wire holding station let one operator close up to 250 books per hour, and its modular design attaches to the front of the Punch100 for a complete punch-and-bind station.
View Details
Formax
Formax Comb100 Manual Comb Binding System
The Formax Comb100 opens and closes plastic binding combs from 1/4" to 2", securing booklets up to 480 sheets at up to 250 booklets per hour. Its lever-activated open/close mechanism with precision closure control lets pages be added or removed without damaging the document, and the all-metal unit works stand-alone or attaches to the Punch100 for a complete punch-and-bind system.
View Details
Formax

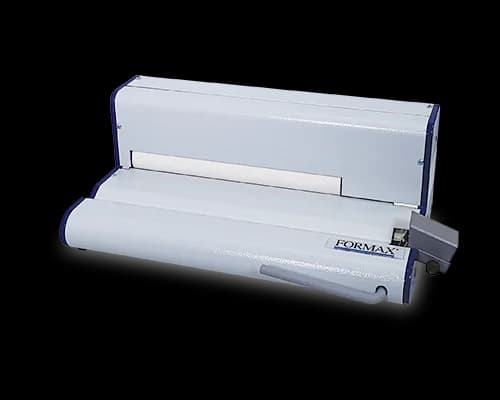

Formax Coil100 Electric Coil Inserting & Crimping System
The Formax Coil100 threads plastic spiral coils from 1/4" to 3/4" through punched booklets with an electric rubber roller, binding up to 80 books per hour on documents up to 16 mm thick. An integrated cut-and-crimp tool finishes each coil at a 45-degree angle, and the compact all-metal unit works stand-alone or attaches to the Punch100 for a complete punch-and-bind system.
View Details
Formax

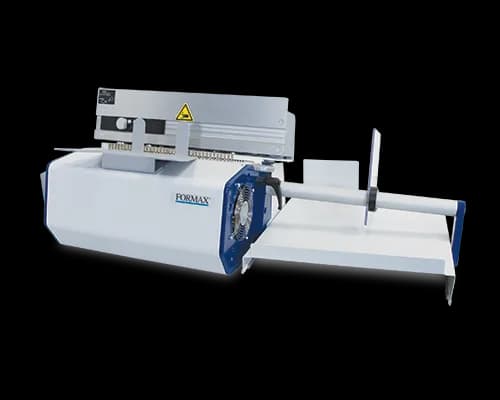

Formax Punch100A Semi-Automatic Electric Punch
The Formax Punch100A adds an automatic paper sensor and auto-eject to heavy-duty die punching: insert a lift against the paper stop, the punch fires, and sheets eject neatly onto the catch tray, ready for binding. Rated at 1,200 cycles per hour for up to 36,000 punched sheets per hour, it delivers up to three times the productivity of standard tabletop punches and takes the same tool-free interchangeable dies for wire, comb, and coil.
View DetailsSupplies for this machine
