Request a QuoteFormax FD 346 Touchscreen Document Folder
Model: FD-346
The Formax FD 346 folds up to 15,500 sheets per hour with a color touchscreen that uses international symbols, so anyone can walk up and run it. Fold plates are pre-marked for six popular folds on paper up to 12.25x18", and the patented telescoping conveyor extends from 14" to 36" to hold up to 500 folded pieces. A 500-sheet feeder, custom fold settings, and a cross-folding guide for two-pass work round out a serious mid-volume folder.
Request a Quote
Specifications
| Speed | Up to 15,500 sheets per hour (11" Z-fold) |
|---|---|
| Hopper Capacity | Up to 500 sheets (20#) |
| Pre-Set Folds | C, V, Z, Gate, Fold Out, Double Parallel — plus custom folds |
| Paper Sizes | Min 3.5x5", Max 12.25x18" |
| Control Panel | Color touchscreen with symbol-based interface |
| Output | Telescoping conveyor, 14"-36", holds up to 500 folded pieces |
| Dimensions | 33" L x 20" W x 19" H closed; 60" L extended |
| Weight | 67 lbs (30kg) |
| Power | 110V AC, 50/60Hz (FD model) |
| Options | Multi-sheet feeder (up to 4 stapled/unstapled sheets), locking cabinet |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 120V outlet (110VAC domestic model).
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Formax
Formax FD 324 Tabletop Document Folder
The Formax FD 324 folds up to 8,600 sheets per hour and takes paper up to 12x18", so it covers 11", 14", and 17" work a smaller desktop folder can't. Removable fold plates are pre-marked for letter, zig-zag, half, and double parallel folds, and a 500-sheet drop-in feeder with three-tire friction feed and skew adjustment keeps longer runs accurate. Rugged all-metal construction is built for daily office and light print-shop duty.
View Details
Formax

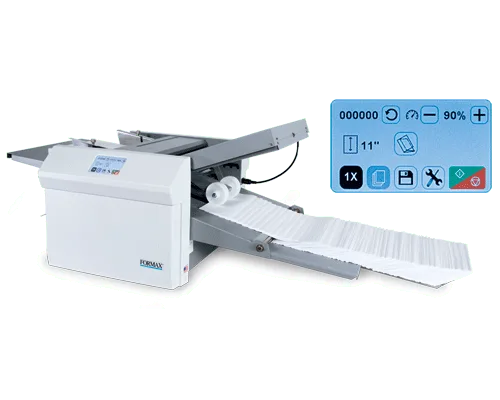

Formax FD 386 Automatic Touchscreen Document Folder
The Formax FD 386 sets its fold plates automatically: pick one of 18 pre-programmed folds or 27 stored custom folds on the full-color touchscreen and it configures itself. It folds up to 17,000 pieces per hour — a 500-sheet hopper empties in about 2 minutes — and holds output on a patented telescoping conveyor. Add the optional multi-sheet feeder for stapled sets or the V-Stack36i vertical stacker for long unattended runs.
View Details
Duplo

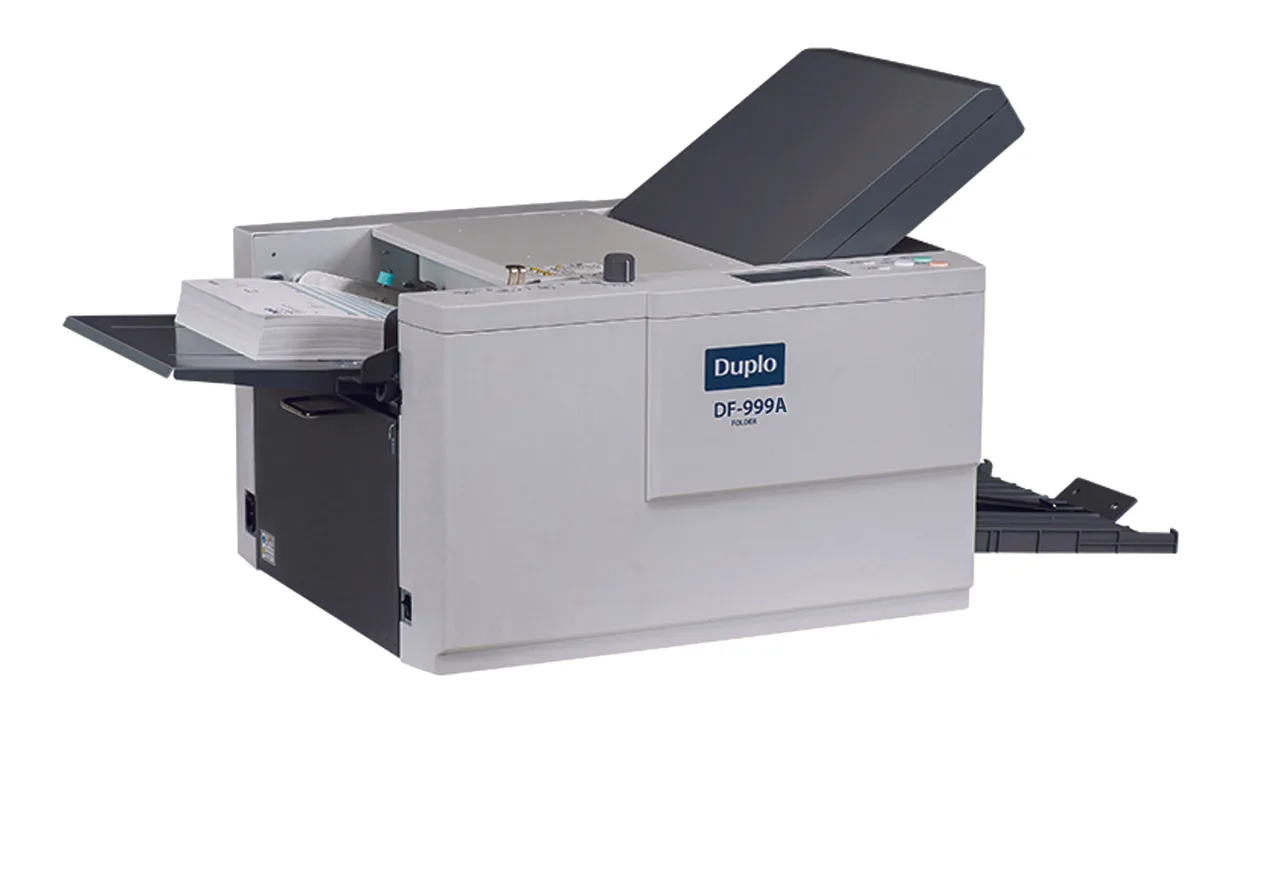

Duplo DF-999A Automatic Tabletop Folder
