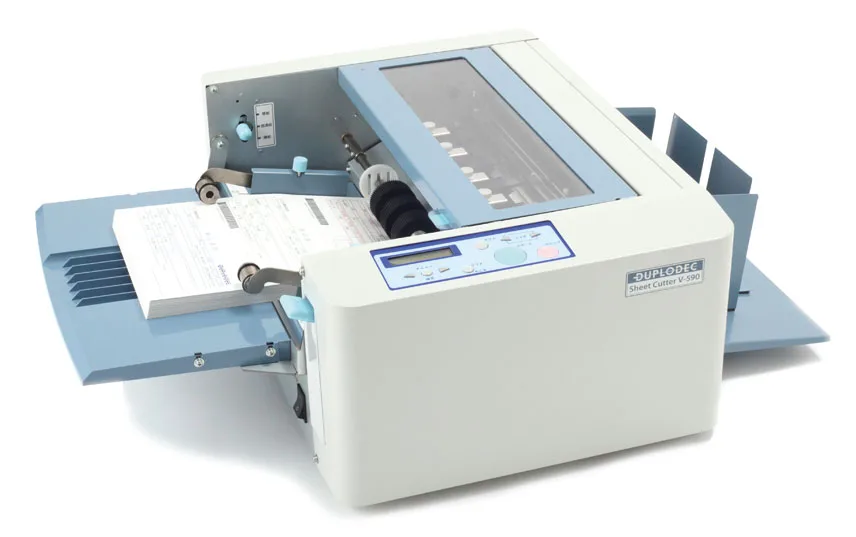

Request a QuoteDuplo V-590 Sheet Cutter
Model: V-590
The Duplo V-590 is a tabletop feed-and-cut machine for office and light production work: load up to 500 sheets and it guillotine-cuts — plus slits and perforates with optional units — checks, coupons, and tickets to ±0.5 mm at up to 2,640 sheets per hour. Six pre-programmed jobs, 100 job memories, and an interactive prompt-driven control panel make setups a button-press affair.
Request a Quote
Specifications
| Speed | Up to 44 sheets per minute / 2,640 sheets per hour (3 cuts); 3-step speed |
|---|---|
| Form Size | 4.17" x 4.33" to 14.34" x 17"; minimum finished length 2" |
| Paper Weight | 58-157 gsm |
| Cutting Method | Guillotine cutter, ±0.5 mm tolerance; optional center slitter and perforator units |
| Feeder | Up to 500 sheets of 64 gsm |
| Job Memory | 6 pre-programmed jobs + 100 custom job memory |
| Detection | Miss feed, double feed, out of paper, safety cover |
| Power Requirements | 100-230V 50/60Hz, 0.5-0.3A |
| Dimensions (LxWxH) | 32" x 23" x 10" |
| Net Weight | 71 lb |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Tabletop unit — runs on any standard outlet (100-230V).
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo

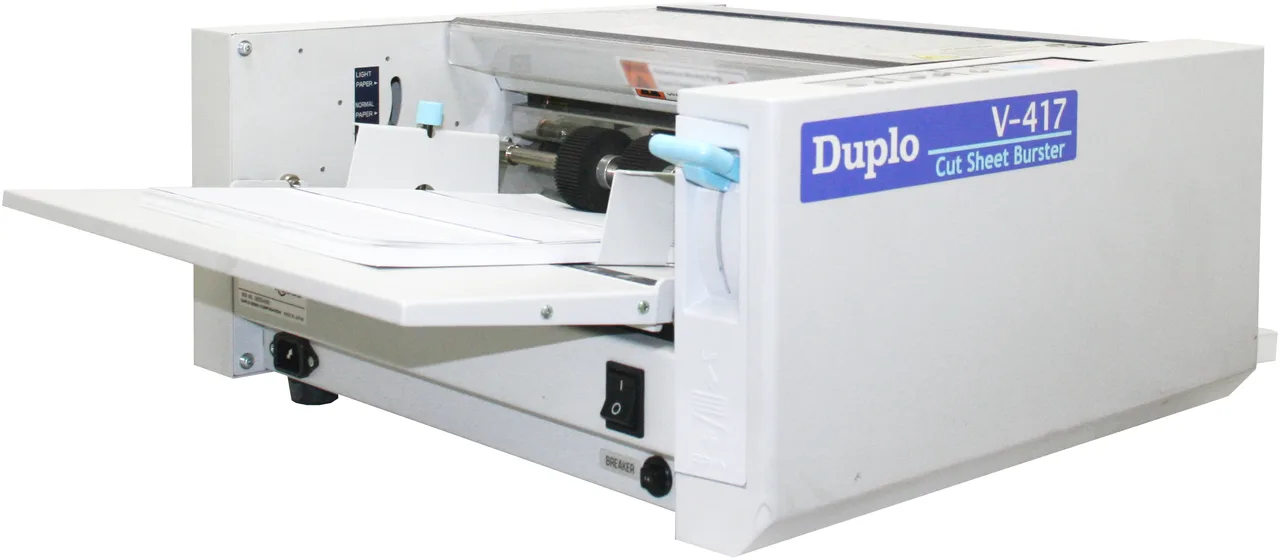

Duplo V-417 Cut Sheet Burster
The Duplo V-417 bursts pre-perforated cut sheets — checks, statements, coupons, labels, membership cards — into separated forms stacked in sequential order at up to 140 sheets per minute. A top-feed 400-sheet hopper, five speed steps, and adjustable side guides replace tedious hand-bursting for any office processing multi-up perforated documents.
View Details
Duplo

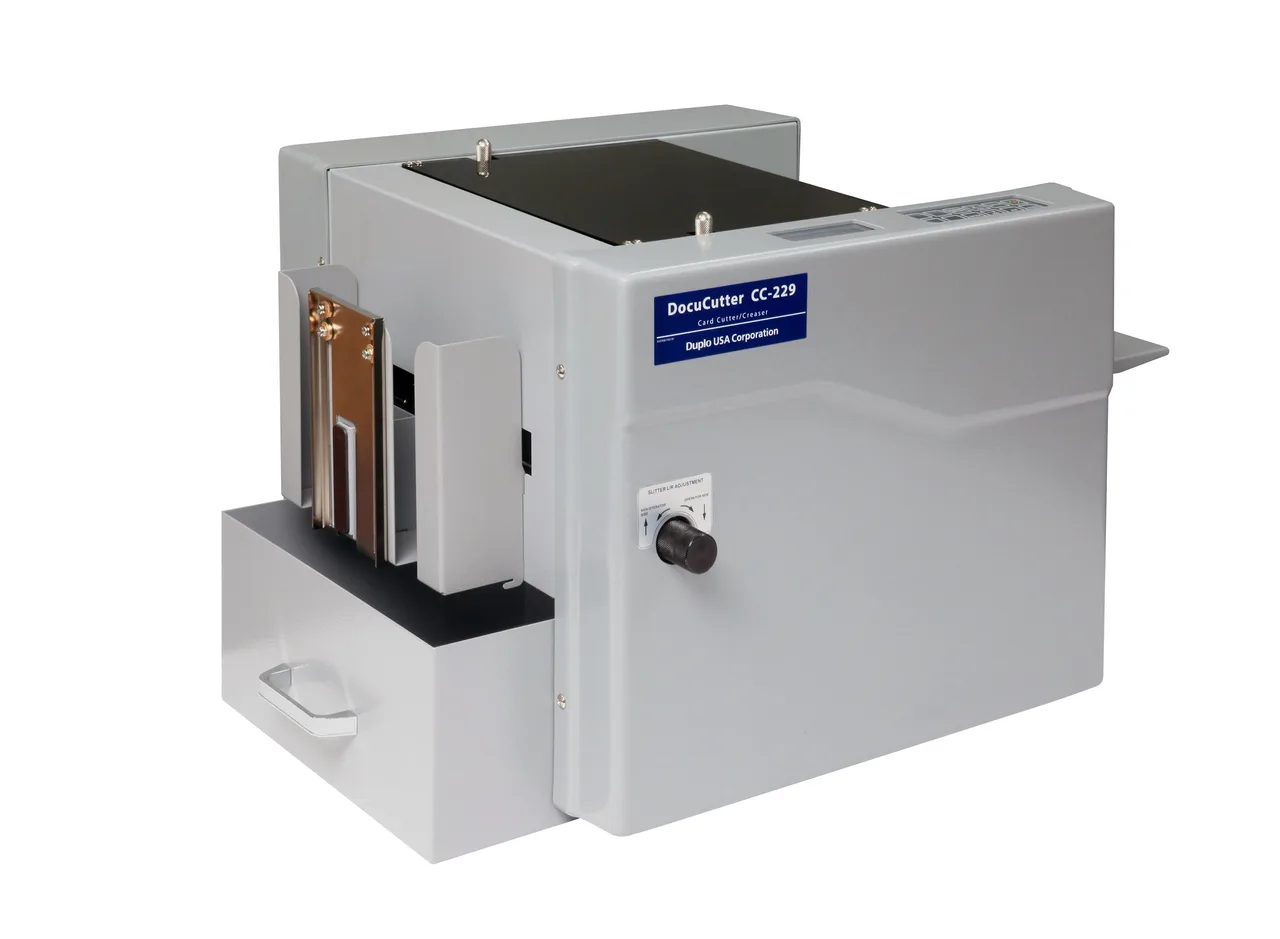

Duplo CC-229 Card Cutter/Creaser
