Request a QuoteDuplo TF375 PLUS High-Speed Folder
Model: TF375 PLUS
The Duplo TF375 PLUS adds high-speed knife folding to any creasing device: roll it up to the exit of a DC-series creaser, match the conveyor height, and fold creased digital color work at up to 6,000 letter sheets per hour — no electrical connection required. Its knife folding system handles heavy stocks up to 400 gsm cleanly, making book covers, brochures, greeting cards, and tent cards a one-line operation.
Request a Quote
Specifications
| Speed | Up to 6,000 sheets per hour (8.5" x 11") |
|---|---|
| Paper Size | 4.13" x 5.82" (105 x 148 mm) to 14.76" x 26" (375 x 660 mm) |
| Paper Weight (Folding) | 80-400 gsm (max 0.4 mm, stock dependent) |
| Fold Types | Single, letter, Z, gate, closed gate, double parallel, and custom folds (not multi-up folding) |
| Infeed Height Range | 30" to 43" (762-1,092 mm) — connects to most creaser exits |
| Sheet Transfer | Vacuum belt |
| Delivery | Shingling delivery |
| Control | Touchscreen panel |
| Compatible Duplo Creasers | DC-446, DC-516, DC-616, DC-646, DC-746 |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Dimensions (WxDxH) | 84" x 24" x 52" |
| Net Weight | 441 lb (200 kg) |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on 100-240 VAC 50/60 Hz. Position in line with your creasing device; the infeed conveyor adjusts from 30 to 43 inches to match the creaser exit height.
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo

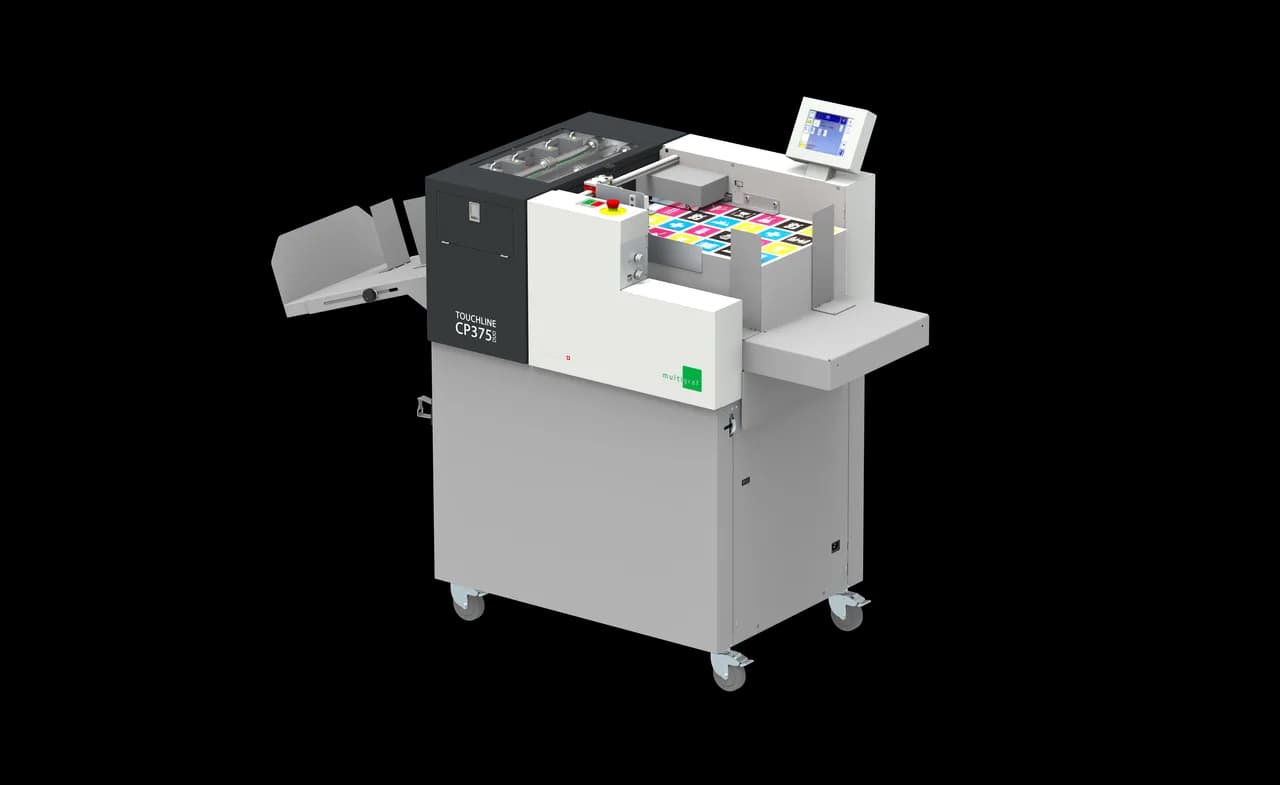

Duplo CP375 DUO TouchLine Creaser/Perforator
The CP375 DUO is the production creasing and perforating machine in Duplo's Swiss-made Multigraf TouchLine family. It runs up to 6,000 sheets per hour with a suction feeder and touchscreen job setup, applying up to 20 creases and 20 perforations per sheet in a single pass — the fix for toner cracking on digitally printed fold lines before jobs go to a folder.
View Details
Duplo

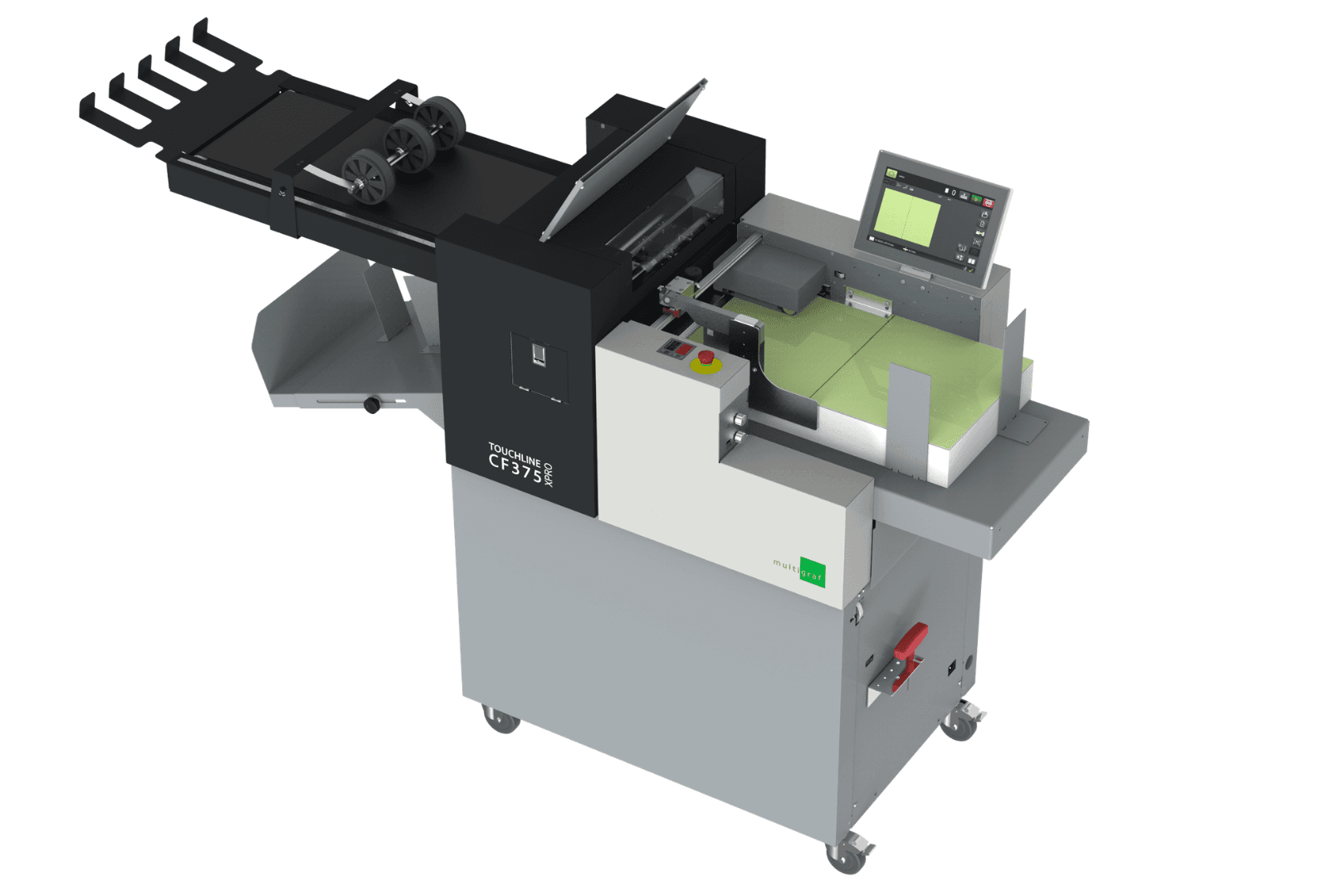

Duplo CF375 XPRO Creaser & Folder
The Duplo CF375 XPRO is a next-generation creaser and folder from the Multigraf Touchline series, built for production environments that run digital stock all day. It creases and folds up to 6,000 sheets per hour on stocks from 80 to 400 gsm, using a swing bar system with an integrated knife folder to deliver flat, crack-free folds on heavy digital prints. A 10.1-inch touchscreen makes job setup and changeover fast, and optional modules add scoring, slitting, and continuous perforating.
View Details
Duplo

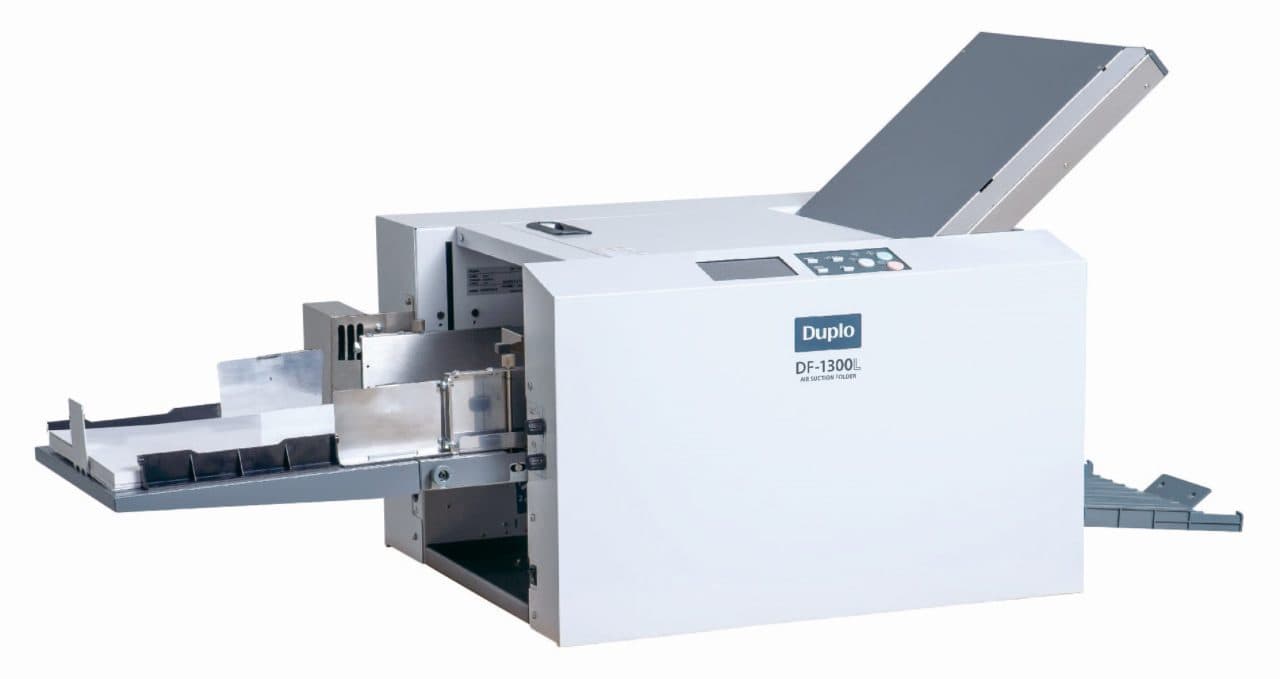

Duplo DF-1300L Paper Folder
