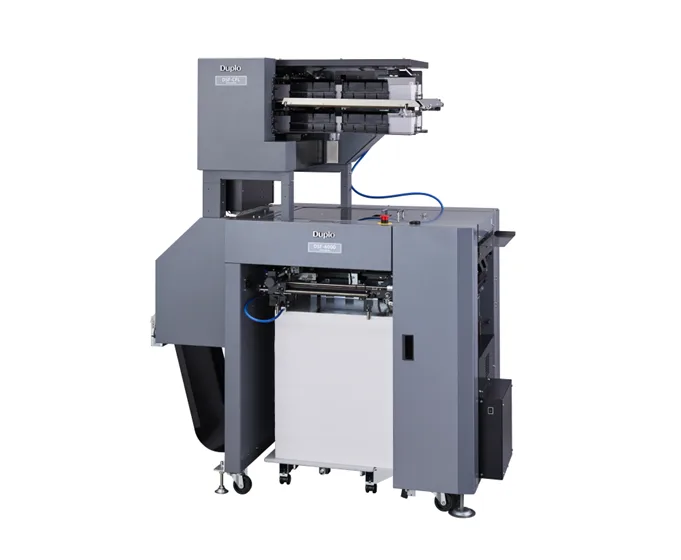

Request a QuoteDuplo DSF-6000 Sheet Feeder
Model: DSF-6000
The Duplo DSF-6000 is the high-capacity production feeder behind the 700i PRO: a 24-inch pile of pre-collated digital output feeds continuously at up to 600 sheets per minute through air-suction separation with automated side and rear guides and a 10-sheet buffer. Optical plus ultrasonic double-feed detection, OMR, and optional barcode readers keep every booklet set complete, and the optional DSF-CFL dual-tray cover feeder merges covers up to 24 inches long in-line.
Request a Quote
Specifications
| Speed | Up to 600 sheets per minute |
|---|---|
| Loading Capacity | 24.02" pile; 10-sheet buffer stopper for continuous loading |
| Paper Size | 4.72"-14.33" wide x 8.27"-20.67" long |
| Paper Weight | Fine/uncoated 52.3-160 gsm; coated 84-160 gsm; covers to 350 gsm via CFL |
| Automation | Automated side and rear paper feed guides, buffer stopper, and side guides |
| Set Integrity | Miss-feed, optical + ultrasonic double-feed detection, jam detection, OMR; optional barcode kits (feeder and CFL) |
| Cover Feeder Option | DSF-CFL — 2 trays x 2.36", sheets 4.72" x 8.27" to 14.02" x 24.02" |
| Compatible Systems | 700i PRO Digital Booklet System (DBM-700 line) |
| Power Requirements | 100-240 VAC 50/60Hz, 250W (IF Box 180W) |
| Dimensions (WxDxH) | 59.8" x 31.3" x 45.2" |
| Net Weight | 667 lb (303 kg) |
Specifications verified from the manufacturer, last checked 2026-08-19.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a standard 100-240V outlet (250W plus IF box).
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Duplo

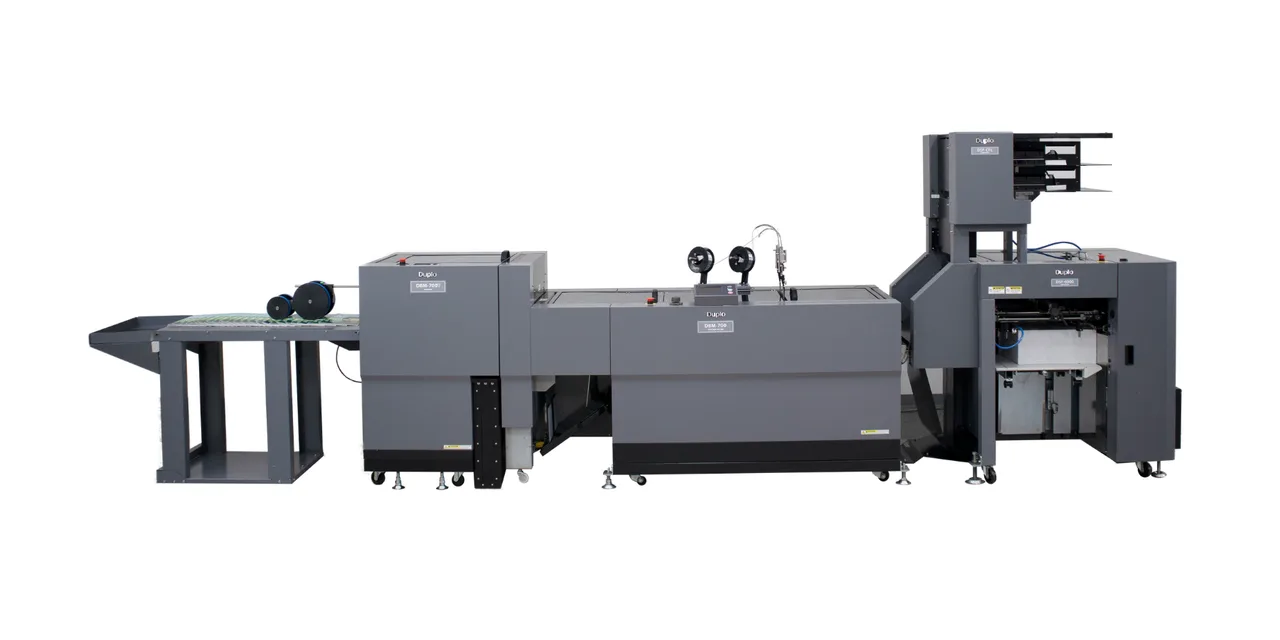

Duplo 700i PRO Digital Booklet System
The Duplo 700i PRO is the top of the 700i family: the high-capacity DSF-6000 sheet feeder (24-inch pile, with optional DSF-CFL cover feeder) drives the DBM-700 bookletmaker and DBM-700T trimmer at up to 4,800 sets per hour — 50% faster than the standard 700i Digital. It saddle-stitches up to 30 sheets, square-spines up to 50, and automates every stitch, fold, and trim setting from the PC Controller for changeovers in under a minute.
View Details
Duplo

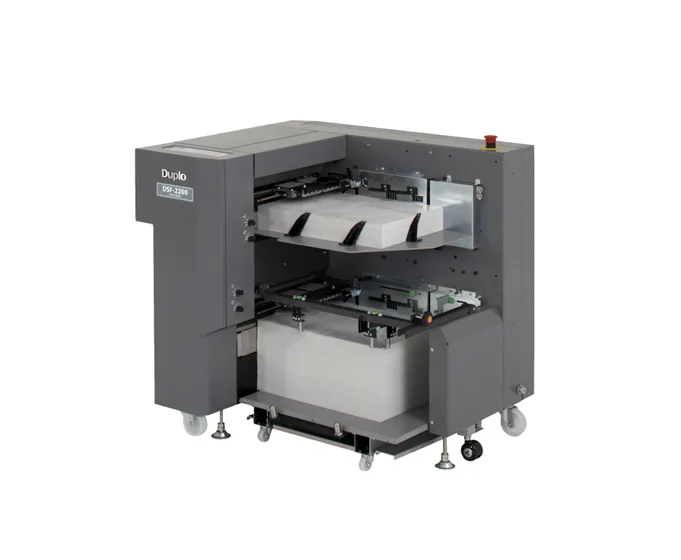

Duplo DSF-2200 Sheet Feeder
The Duplo DSF-2200 is a dual-bin suction sheet feeder that streams pre-collated digital press output into Duplo bookletmakers at up to 200 sheets per minute. Eight suction belts with front and side air separation, a built-in anti-static device, and per-bin ultrasonic double-feed detection handle heavy-coverage digital stock reliably, while optional 1D/2D barcode kits verify every set for variable-data work.
View Details
Duplo

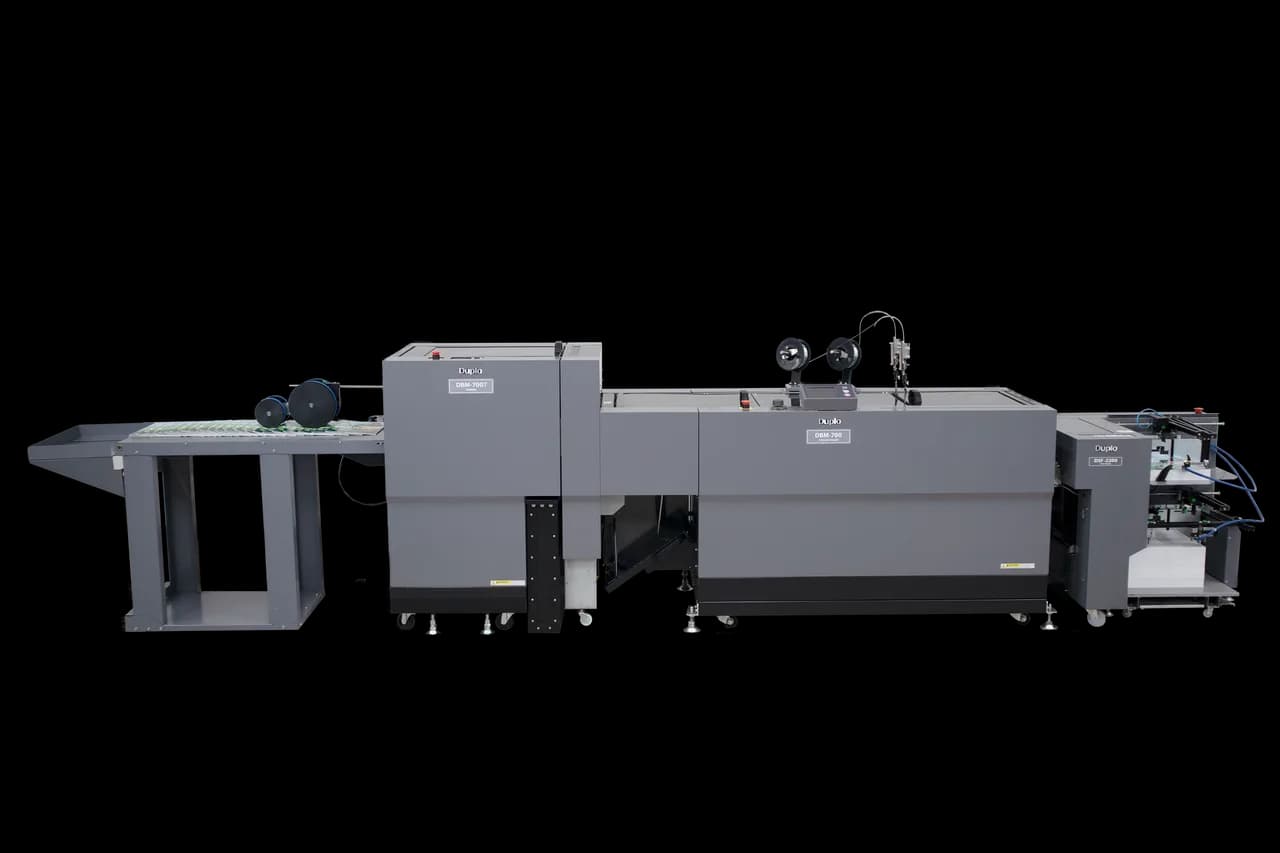

Duplo 700i Digital Booklet System
The Duplo 700i Digital Booklet System feeds pre-collated digital output through the DSF-2200 dual-bin suction feeder into the fully automated DBM-700 bookletmaker and DBM-700T fore-edge trimmer. It saddle-stitches booklets up to 30 sheets — or 50 sheets square-spined — at up to 3,272 booklets per hour, and with the gutter cutter and 4-stitch kit it doubles up small-format work to 9,600 booklets per hour. Every setting from stitch position to fold roller gap is automated for sub-60-second changeovers.
View Details
Challenge
Challenge Combination Series Paper Joggers
Challenge Combination Series joggers are the bindery workhorses for squaring large-format stock ahead of the cutter or folder: table sizes run from 20x26" to 28x40", each handling piles up to 4" high. The table tilts from flat to 60 degrees, accepts accessory dividers for jogging multiple lifts of smaller stock at once, and the Dial-a-Jog control adjusts the jogging action with toggle or hands-free foot-switch operation. Made in the USA.
