Request a QuoteChallenge SCM Hydraulic Cornering Machine
Model: SCM-H
The Challenge SCM Hydraulic corners a full 4" stack of paper in one powered stroke — the manufacturer rates it at up to ten times the capacity of electric tabletop cornering machines. Six knife sizes from 1/8" to 5/8" radius (plus a straight diagonal) handle everything from playing cards to coated cover stock, with a shear cutting action that keeps knives sharp and gravity chip disposal into a large waste bin. Made in Michigan, USA.
Request a Quote
Specifications
| Maximum stack height | 4" / 10 cm, hydraulic powered |
|---|---|
| Sheet size | Any size sheet (open table design) |
| Corner sizes | 1/8", 1/4", 3/8", 1/2", 5/8" radius + straight diagonal (1-1/4" max) |
| Cutting action | Shear mechanism with automatic blade return |
| Chip disposal | Gravity, into large waste bin |
| Footprint | 24x20-1/4" floor space, 52" overall height |
| Net weight | 190 lbs / 86 kg |
| Power | 1/2 HP motor, 115 V, 13.5 A (energy-saving motor turns off between cycles); optional 230 V 50 Hz |
Specifications verified from the manufacturer, last checked 2026-08-21.
Sold, installed, and serviced by PressTech in South Florida
You are not buying from a website. You are buying from a 4th generation family business with technicians who install this machine, train your team on it, and answer the phone when you need service.
Delivery & Install
We coordinate freight, rigging, placement, and full setup.
Operator Training
Hands-on training on your jobs, included with installation.
Warranty Support
Manufacturer warranty backed by a local dealer.
On-Site Service
Repairs and maintenance across Miami-Dade, Broward, and Palm Beach.
Install, Delivery & Shipping
What installation includes
- ✓Delivery coordination and placement in your shop
- ✓Uncrating, setup, calibration, and test runs on your stock
- ✓Operator training for your team
- ✓Warranty support and ongoing on-site service
Site requirements
Runs on a 115 V outlet, 13.5 A (NEMA 5-20R receptacle for 20 A service).
Delivery & lead time
Lead times vary by model and configuration; we confirm current availability with your quote. Local delivery across South Florida is handled by our team, with freight and liftgate options where needed.
Related Machines
Challenge

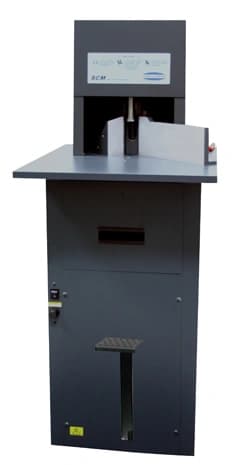

Challenge SCM Manual Cornering Machine
The Challenge SCM Manual delivers the same shear cutting action and six corner-knife sizes as its hydraulic sibling in a foot-activated machine that needs no electrical hookup at all. It corners stacks up to 2" high on any size sheet, with gravity chip disposal — a simple, durable way to add professional round corners in a smaller shop. Made in Michigan, USA.
View Details
Challenge
Challenge Titan 200 BC Manual-Backgauge Paper Cutter
The Challenge Titan 200 BC pairs full hydraulic clamping and cutting — 2,500 lbs of pressure through 3.25" piles — with a simple hand-wheel backgauge and digital cut-size display, keeping the price of entry down for small shops that don't need programming. Its 20" width handles 11x17" stock comfortably, it plugs into a standard 120 V outlet, and it rolls on lockable casters. Made in the USA.
View Details
Challenge
Challenge CHAMP 185 Hydraulic Paper Cutter
The Challenge CHAMP 185 delivers hydraulic clamping and cutting — 2,350 lbs of pressure through 3.25" piles — with a straightforward manual backgauge, making it the workhorse choice for shops that want 18.5" hydraulic capacity without programming. The 1/4" cold-rolled-steel welded frame cuts today's hard digital stocks accurately, and lockable casters let it roll through a standard 36" doorway. Made in Michigan, USA.
View Details
Challenge
Challenge JF Single-Spindle Paper Drill
The Challenge JF is an industrial-grade single-spindle floor drill that punches through 2" piles with foot-pedal operation, leaving both hands free to handle stock. The auto-trip side guide advances through up to seven backgauge stops automatically for multi-hole patterns, and optional attachments add round cornering, slitting, and slotting to one machine. Made in the USA.
View DetailsSupplies for this machine
Blades, films, laser materials, and wear parts, matched to your model by the technicians who service it.
